Sterilization and Storage System

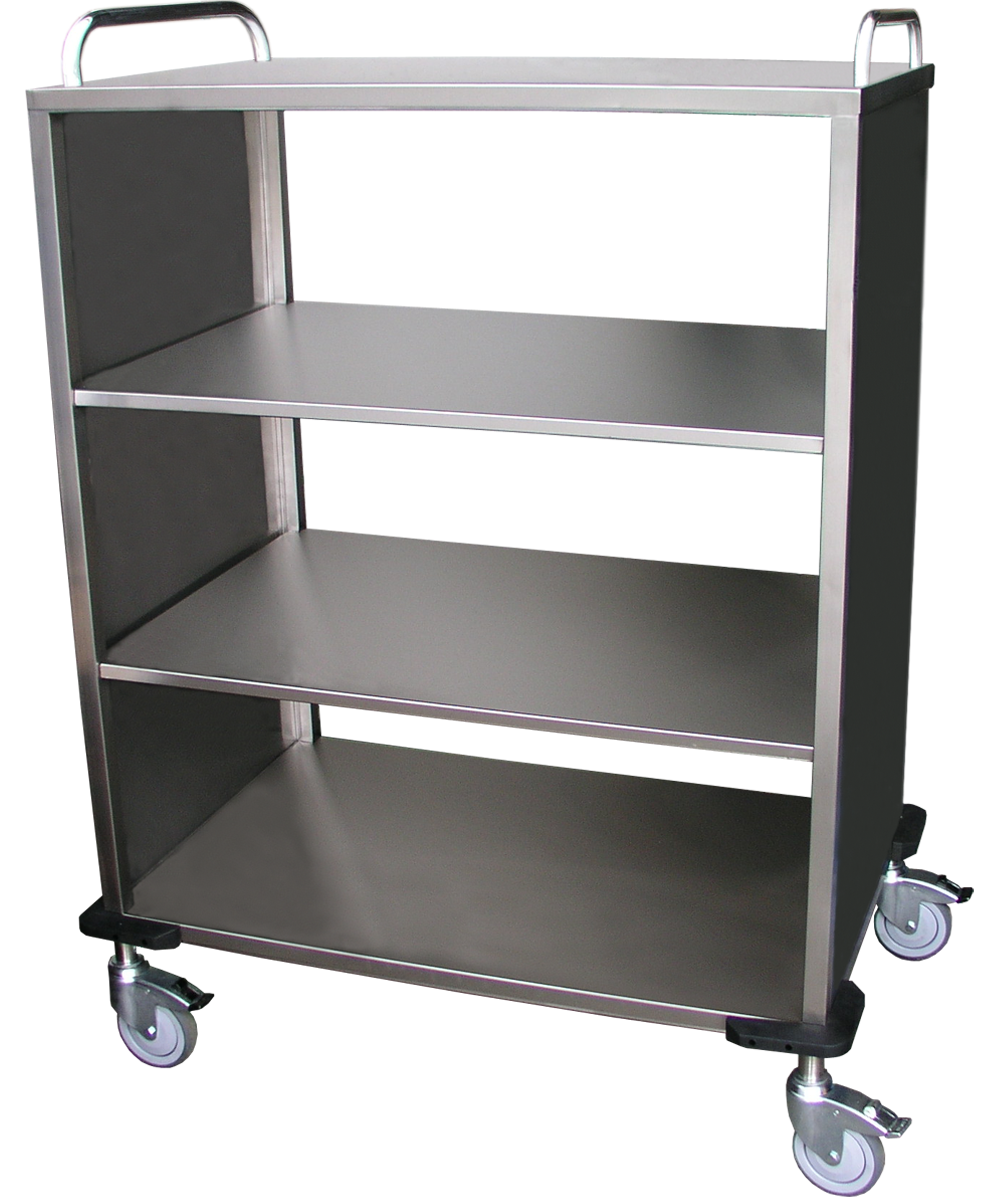

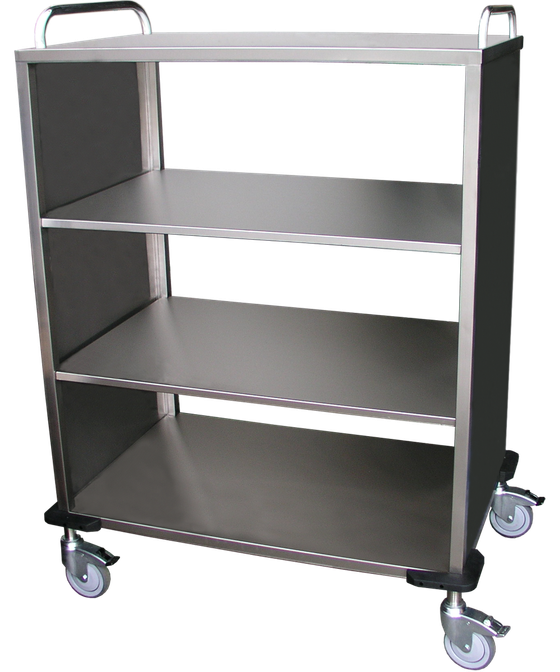

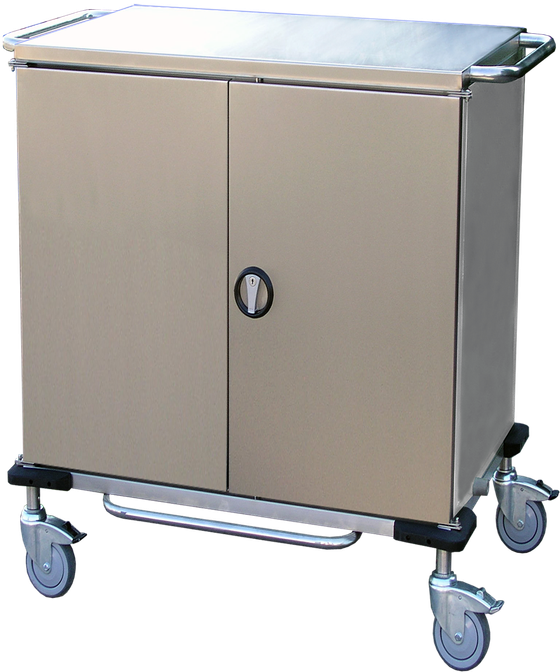

Trolley for Transporting Sterilization Containers and Material
VSMN/O-1000, VSMN/SV-1000
The trolley is made of stainless steel profiles and is equipped on the upper side with fixed handles for easy handling. The VSMN/SV-1000 version is fitted with doors with a recessed rotary locking system. Tight door closure is ensured by a rubber seal. The cabinet is equipped with 2 fixed shelves for storing 9 sterilization baskets 600 × 300 × 300 mm /NKZ-3, NKZ-O/. The base is fitted with castors Ø 150 mm /3 braked/ and /1 directional/ with corner rubber bumpers and a protective frame to prevent damage to the door lock.
- Dimensions: l 1250 × w 720 × h 1375 mm

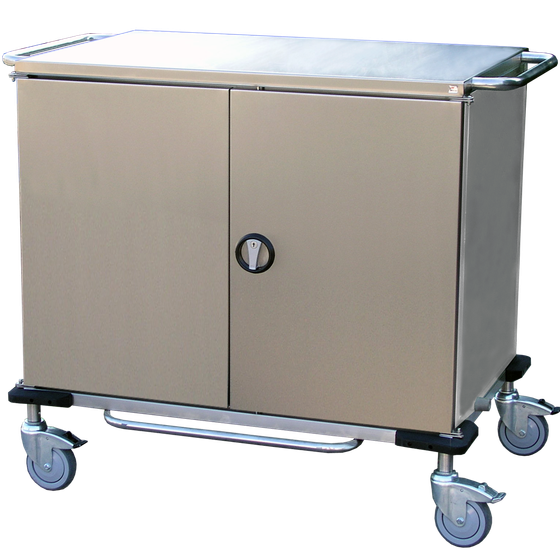

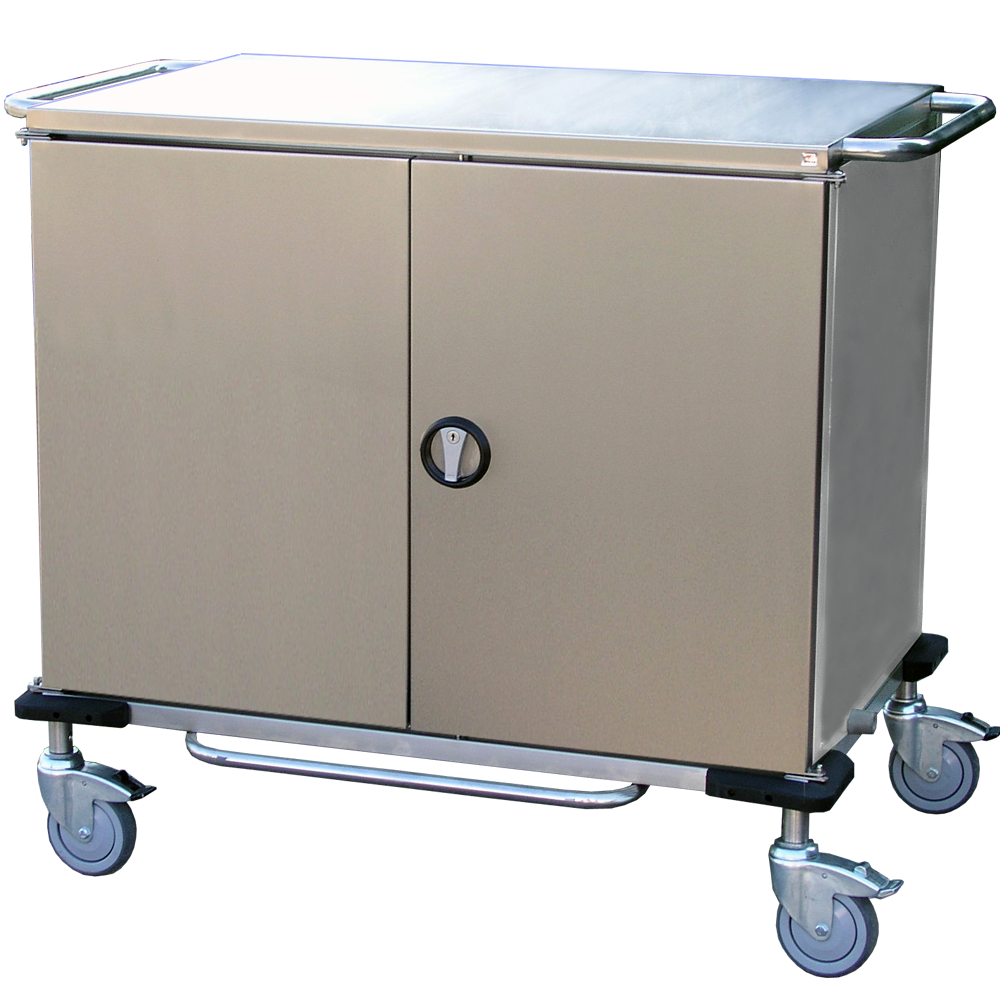

Small Trolley for Transporting Sterilization Containers and Material
VSMN/SM-1000
The trolley is made of stainless steel profiles and is fitted with doors with a recessed rotary locking system. Tight door closure is ensured by a rubber seal. The cabinet is equipped with one stainless steel shelf for storing 6 sterilization baskets 600 × 300 × 300 mm /NKZ-3, NKZ-O/. The sides are fitted with fixed handling handles. The base is fitted with castors Ø 125 mm /3 braked/ and /1 directional/ with corner rubber bumpers and a protective frame to prevent damage to the door lock.
- Dimensions: l 1250 × w 720 × h 1000 mm

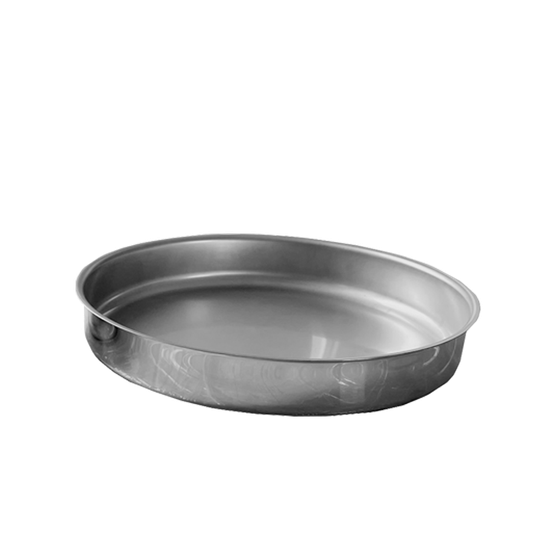

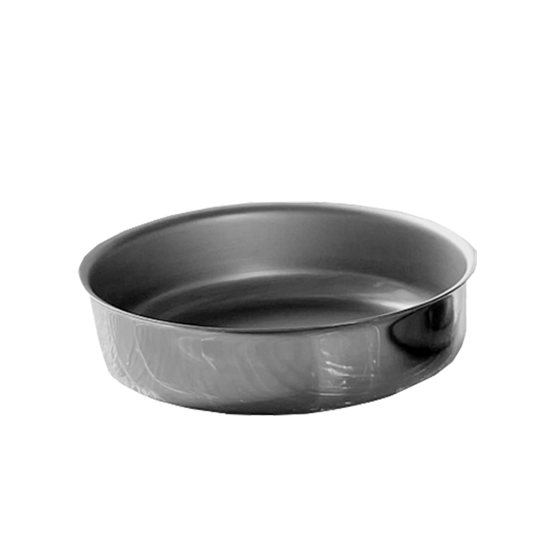

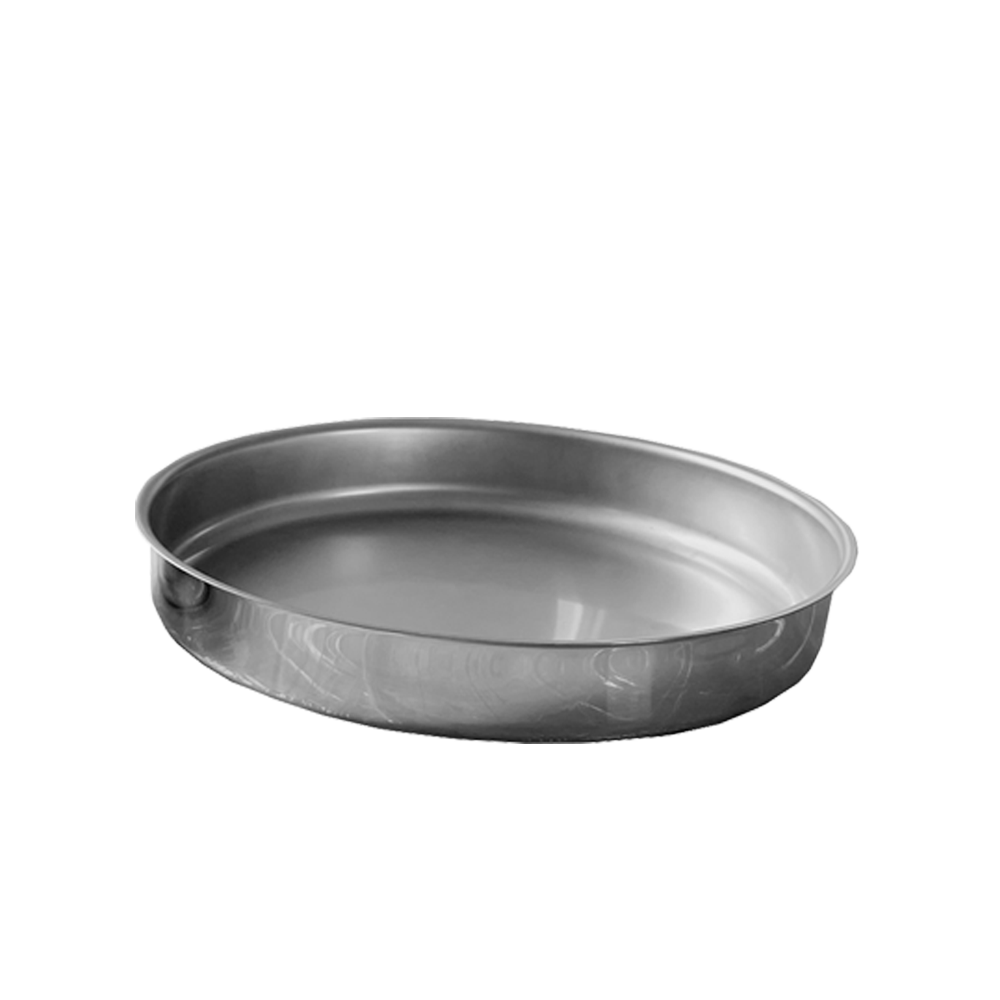

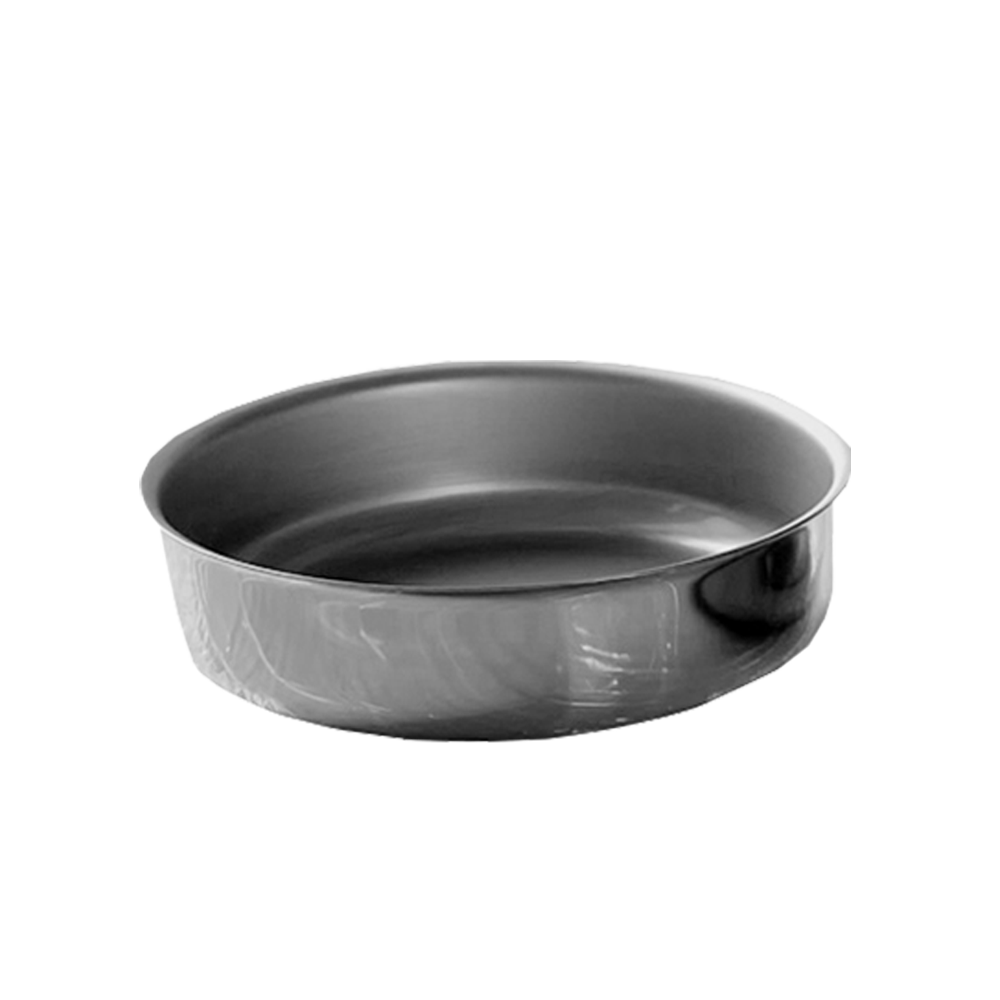

KM-150 / KM-300 Stainless Steel Bowl for Saline Solutions
The bowl is designed for storing catheters in saline solution.
The bowl is not intended for boiling /it does not have a boiling base/.
It can be steam-sterilized /autoclaved/ at 134 °C for 30 minutes.
Minimum quantity: 5 pcs
- KM-150 – internal Ø 150 mm × d 40 mm, volume 0.5 l
- KM-300 – internal Ø 300 mm × d 50 mm, volume 2.5 l

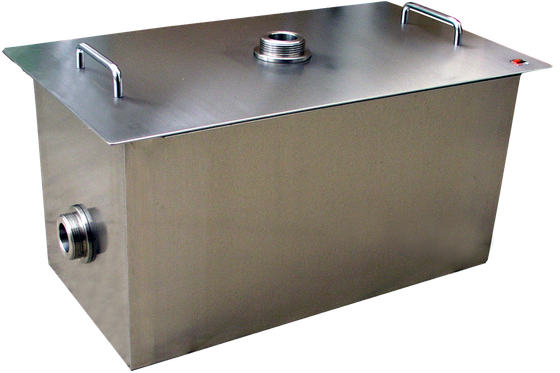

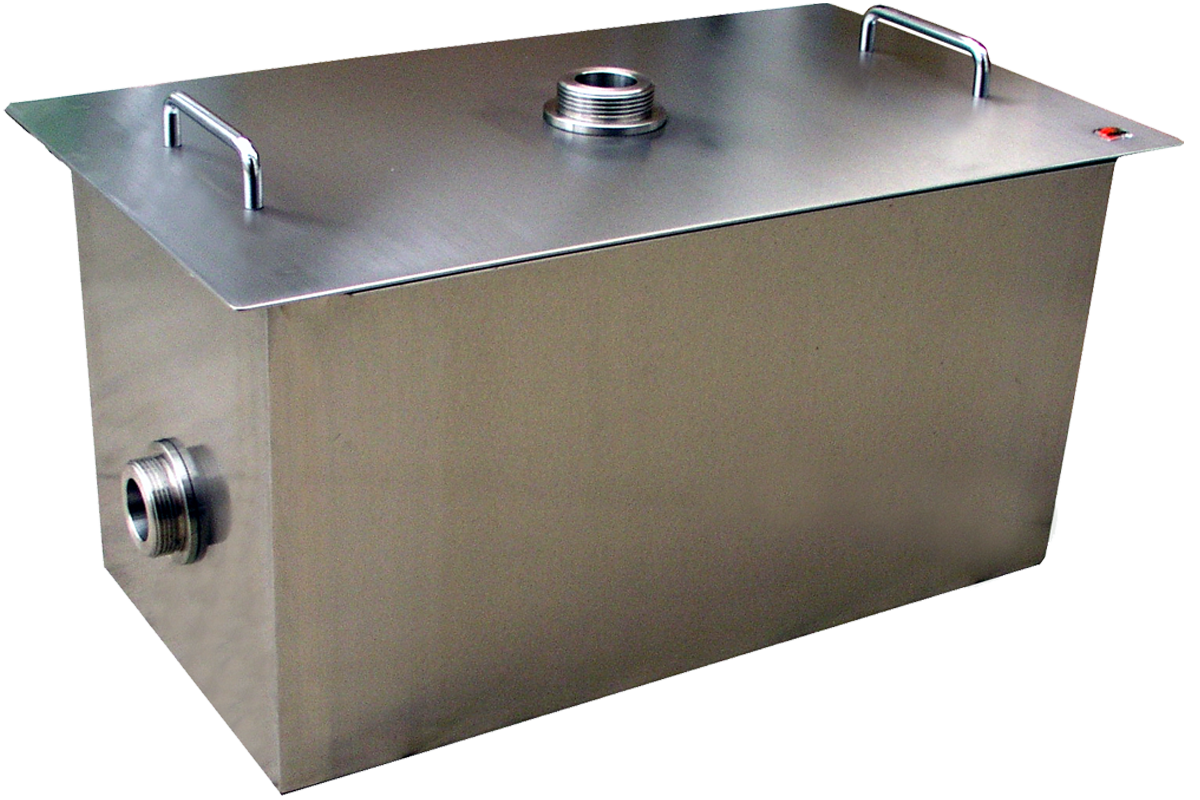

JS-2 Plaster Trap
The plaster trap is made of stainless steel material. It is used to capture various larger waste impurities in strongly chemically aggressive waste where plastics may be damaged. In such cases, the JS-1 trap cannot be used.
- Dimensions: l 500 × w 250 × h 230 mm

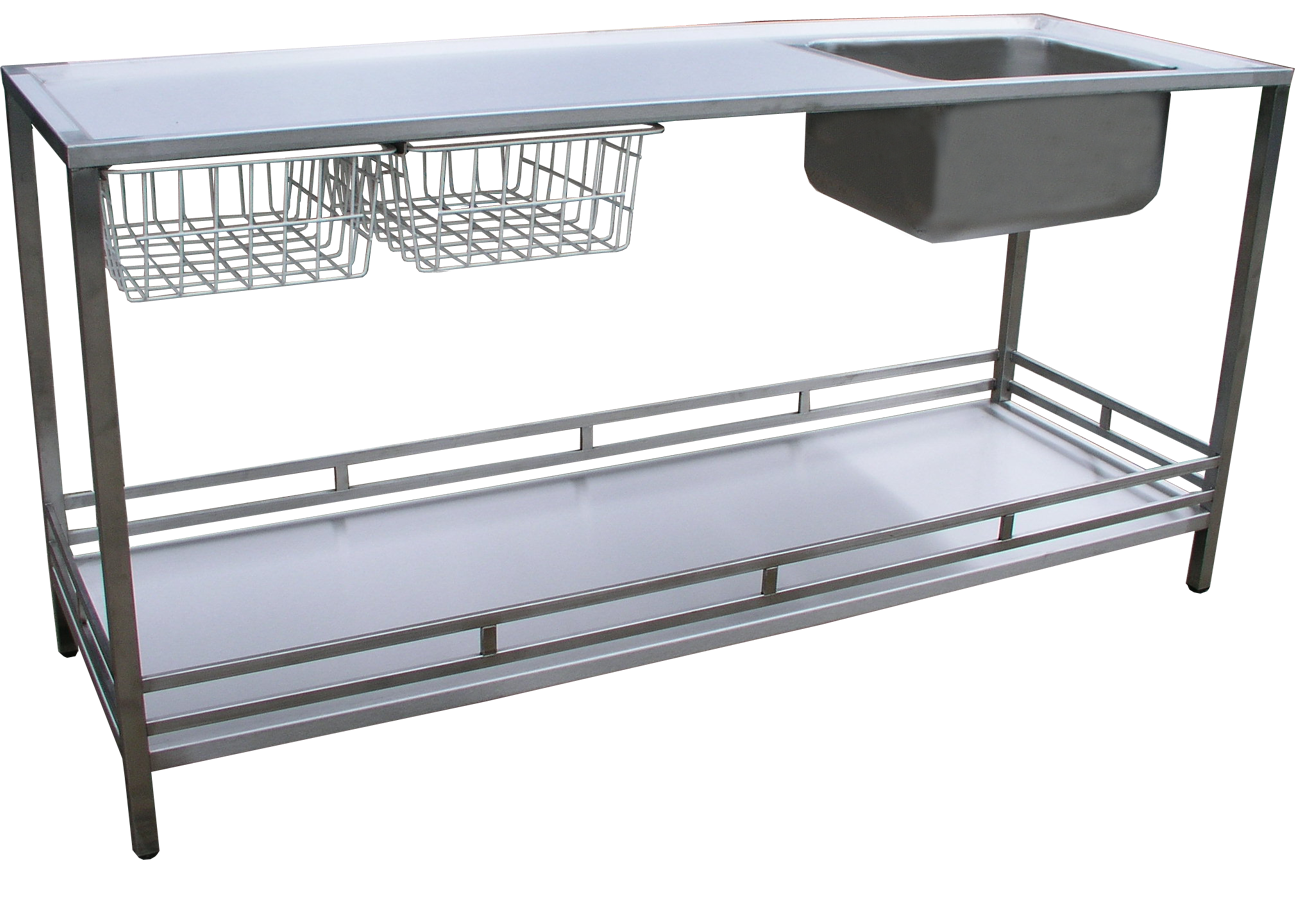

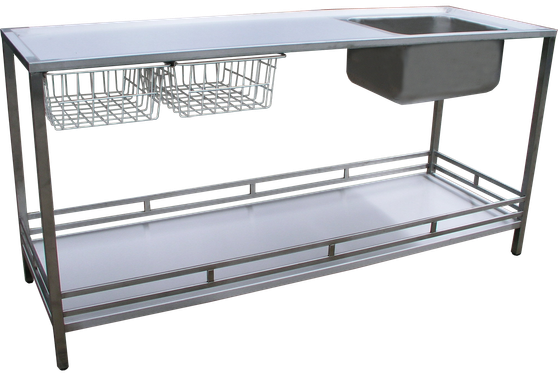

SNSN-1800 Plaster Table
The table is made of stainless steel profiles with an upper recessed stainless steel top, fitted with a pressed sink 400 × 400 × d 250 mm, lower pull-out baskets for plaster and material, and a lower flat stainless steel shelf without a guard rail.
The table is used in plaster rooms for preparing dressing material and is fitted with two braked and two unbraked castors Ø 125 mm.
- Dimensions: l 1800 × w 600 × h 900 mm

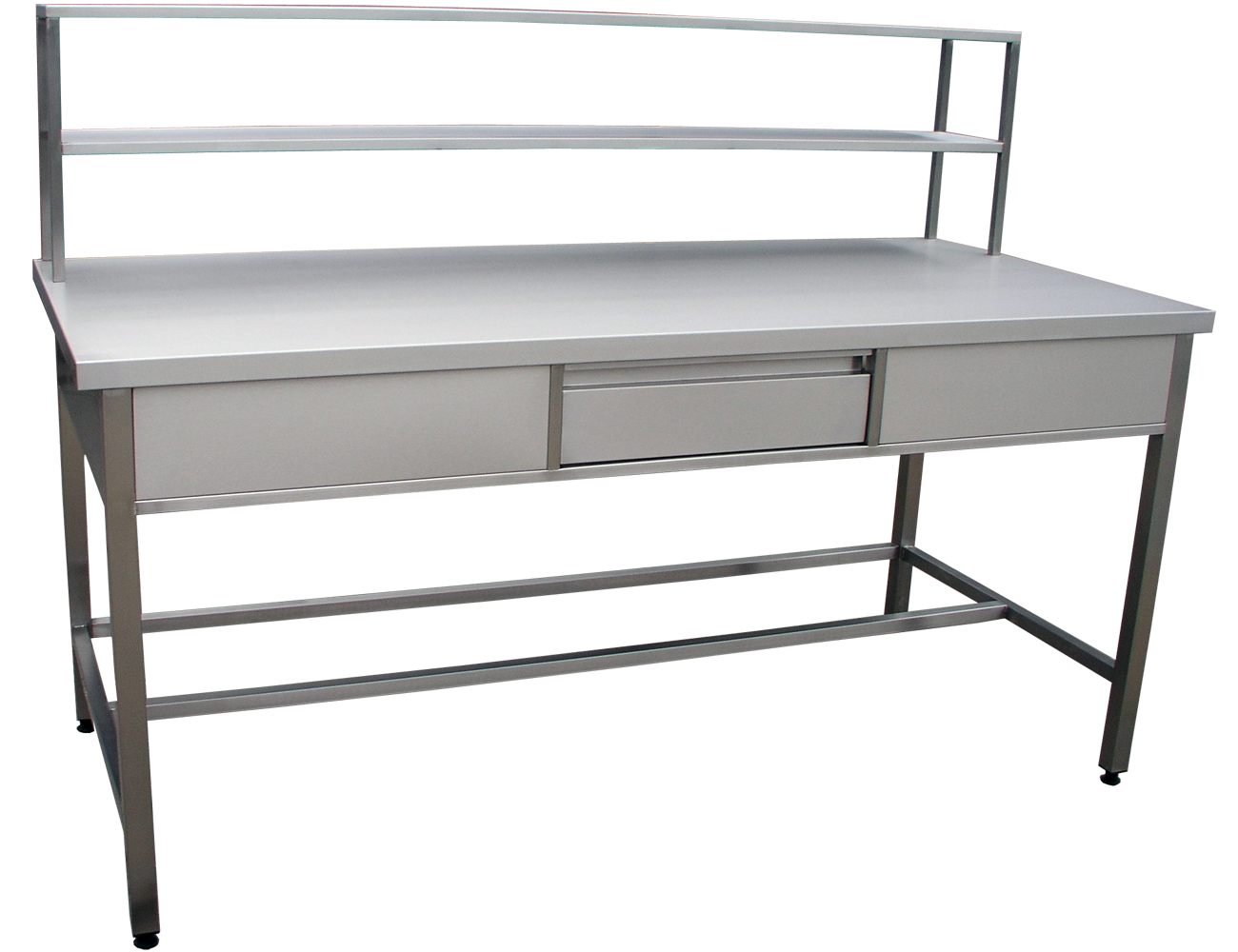

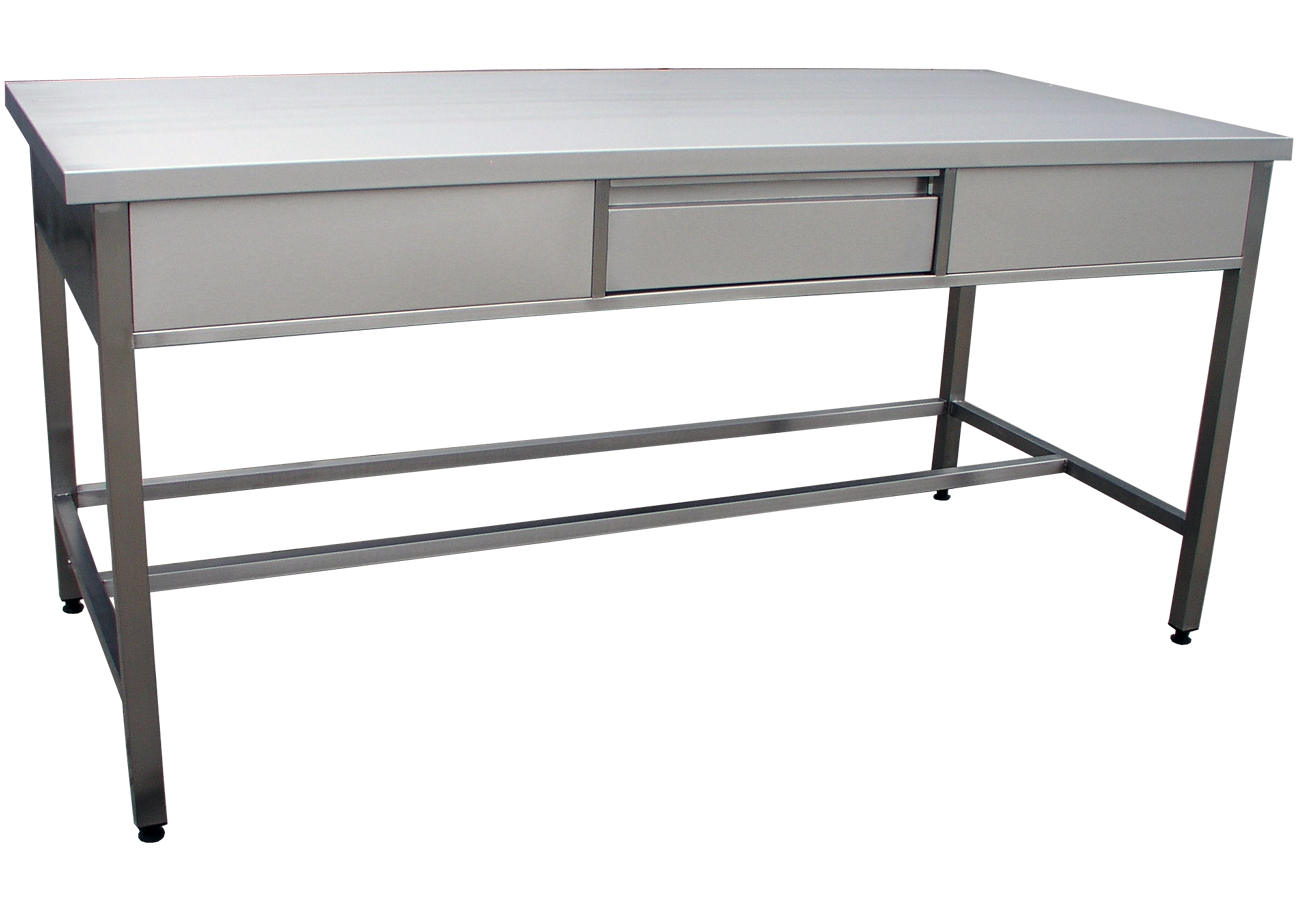

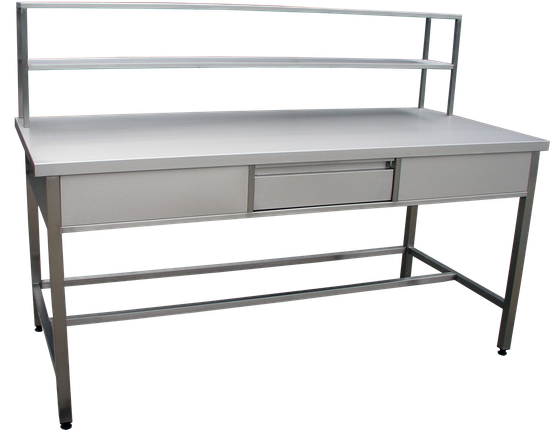

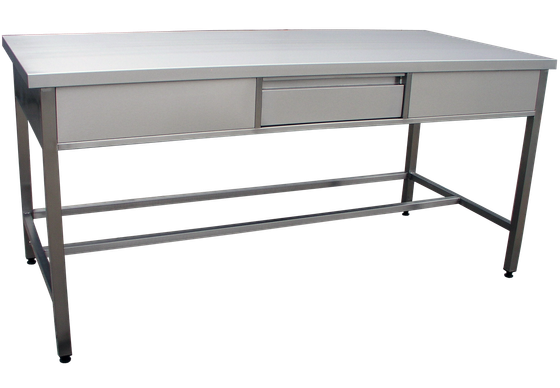

Set Preparation Table with Drawer / Set Preparation Table with Storage Gallery and Drawer
SSN-1400, SSN-1900, SSNG-1400, SSNG-1900
The table is made of stainless steel profiles and has two stainless steel storage tops. It is used in operating theatres and sterilization departments. The all-stainless-steel SSNG-1400 and SSNG-1900 versions are additionally equipped in the upper section with a two-tier storage gallery and in the lower section with a drawer without a lower shelf.
- Dimensions: l 1400 × w 800 × h 900 mm
- Dimensions: l 1900 × w 800 × h 900 mm

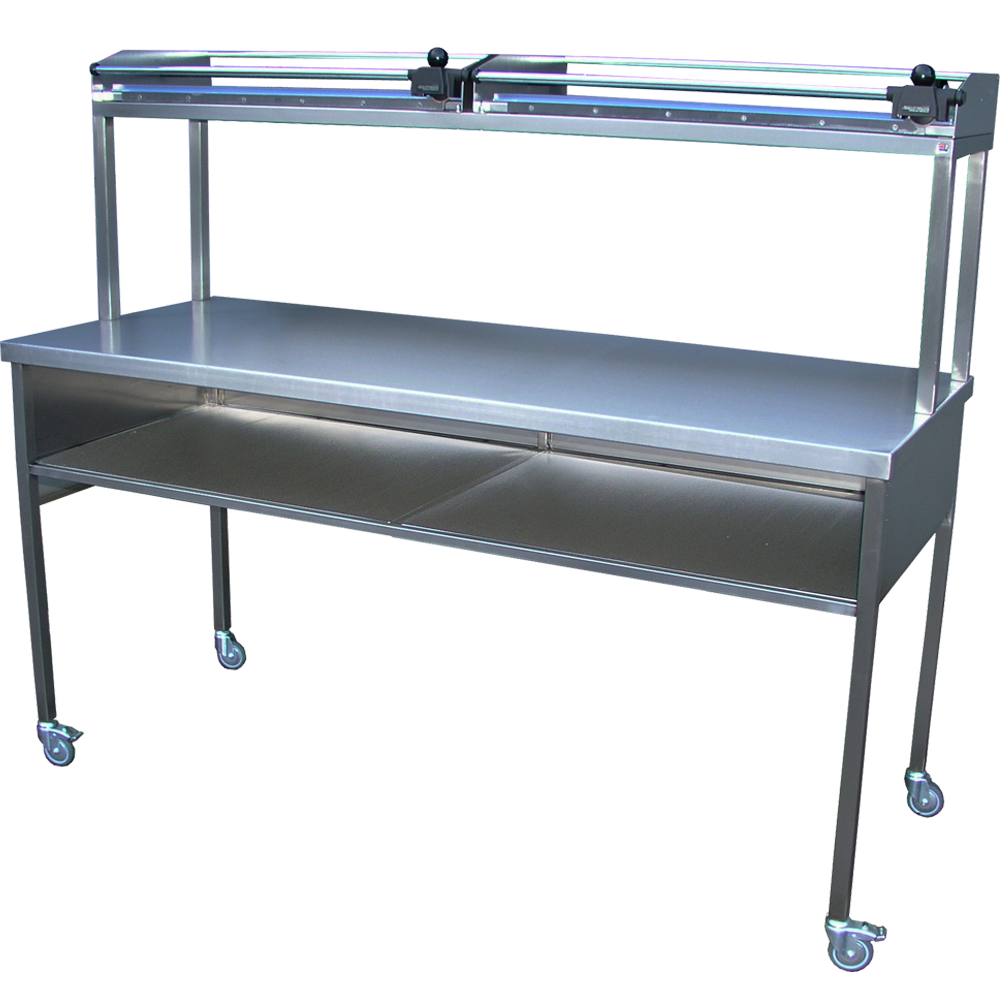

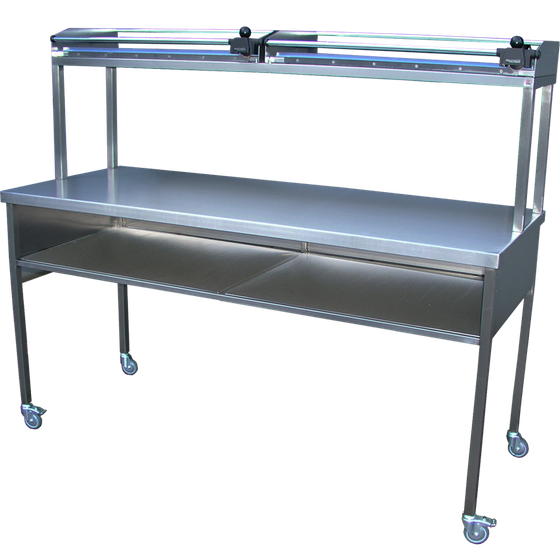

Set Preparation Table with One Cutter / Set Preparation Table with Two Cutters
SSNS-1750/1, SSNS-1750/2
The all-stainless-steel set preparation table is designed for use in sterilization departments. The table is equipped with one or two cutters for cutting packaging material in rolls. Cutter length 870 mm, maximum roll diameter 300 mm. The lower section of the table is fitted with a shelf for storing material. The table base is fitted with castors Ø 125 mm.
- Dimensions: l 1750 × d 700 × h 1500 mm

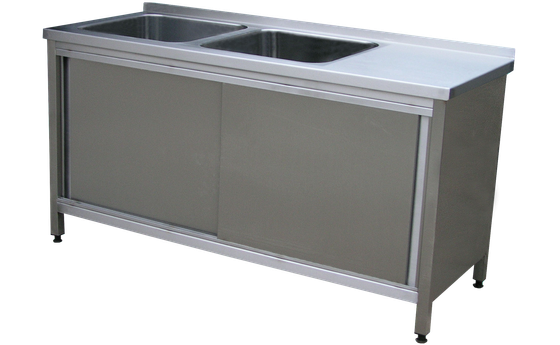

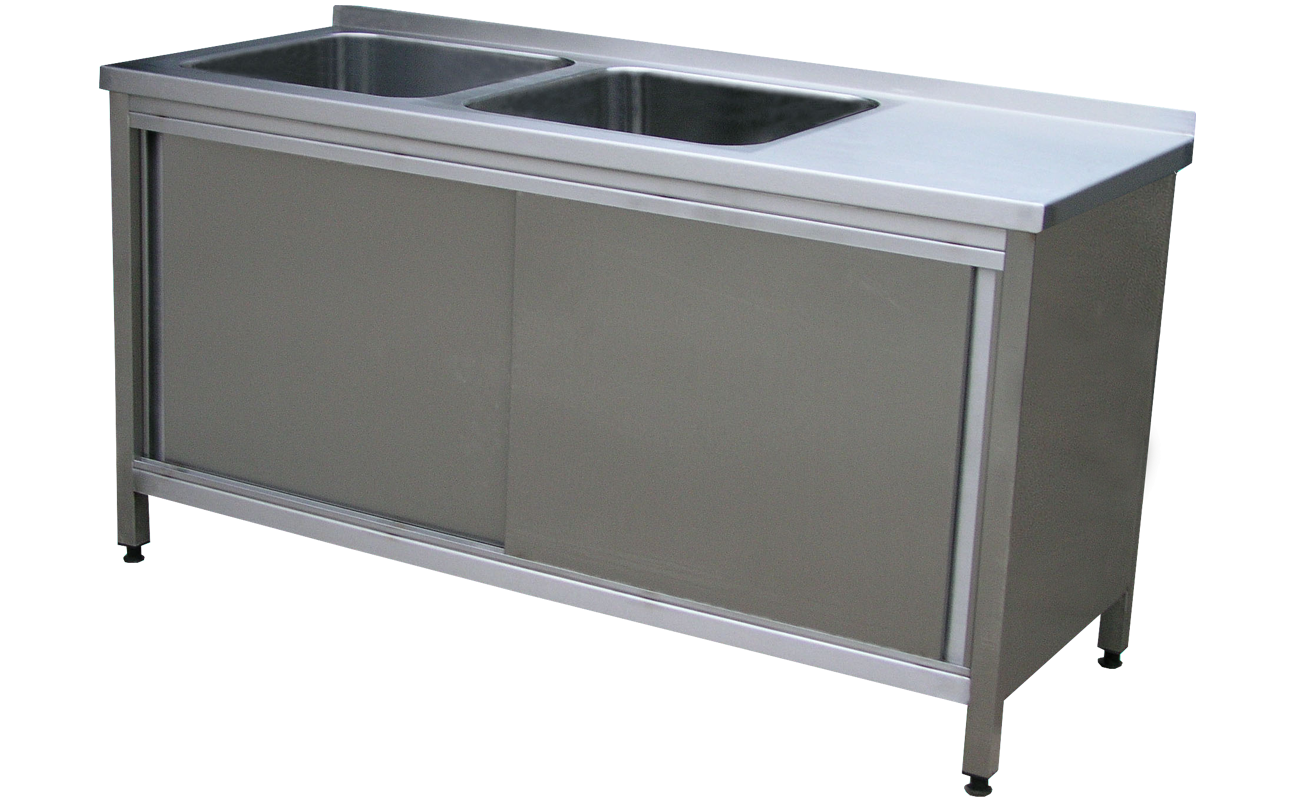

SNPSD-1 / SNPSD-2 Cabinet Sink Table
The table is made of stainless steel profiles with an upper flat top with a rear upstand to prevent water ingress. It is equipped with 1 or 2 sinks 500 × 500 × 250 mm and a lower cabinet with a shelf and sliding doors. Upon customer request, the upper top can be made as a recessed tray to provide increased protection against water ingress.
- Dimensions: l 1900 × w 700 × h 850 mm

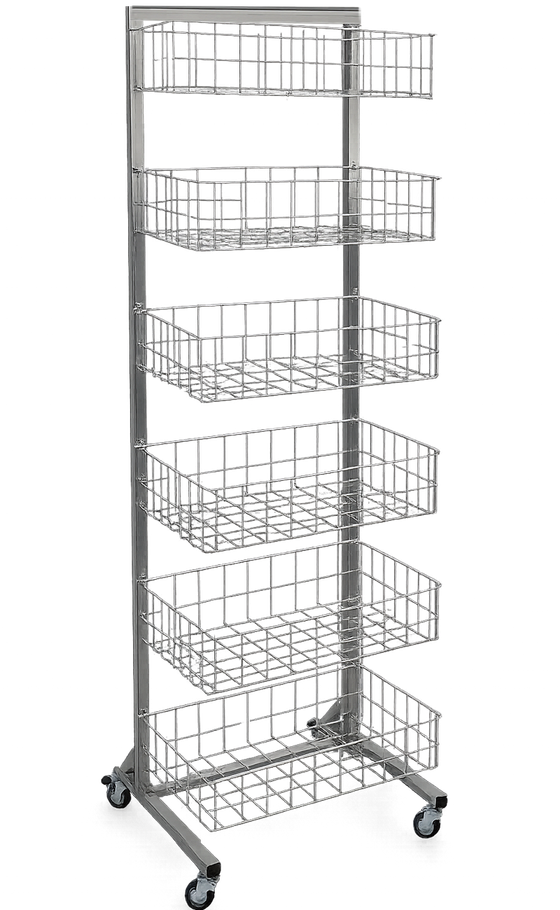

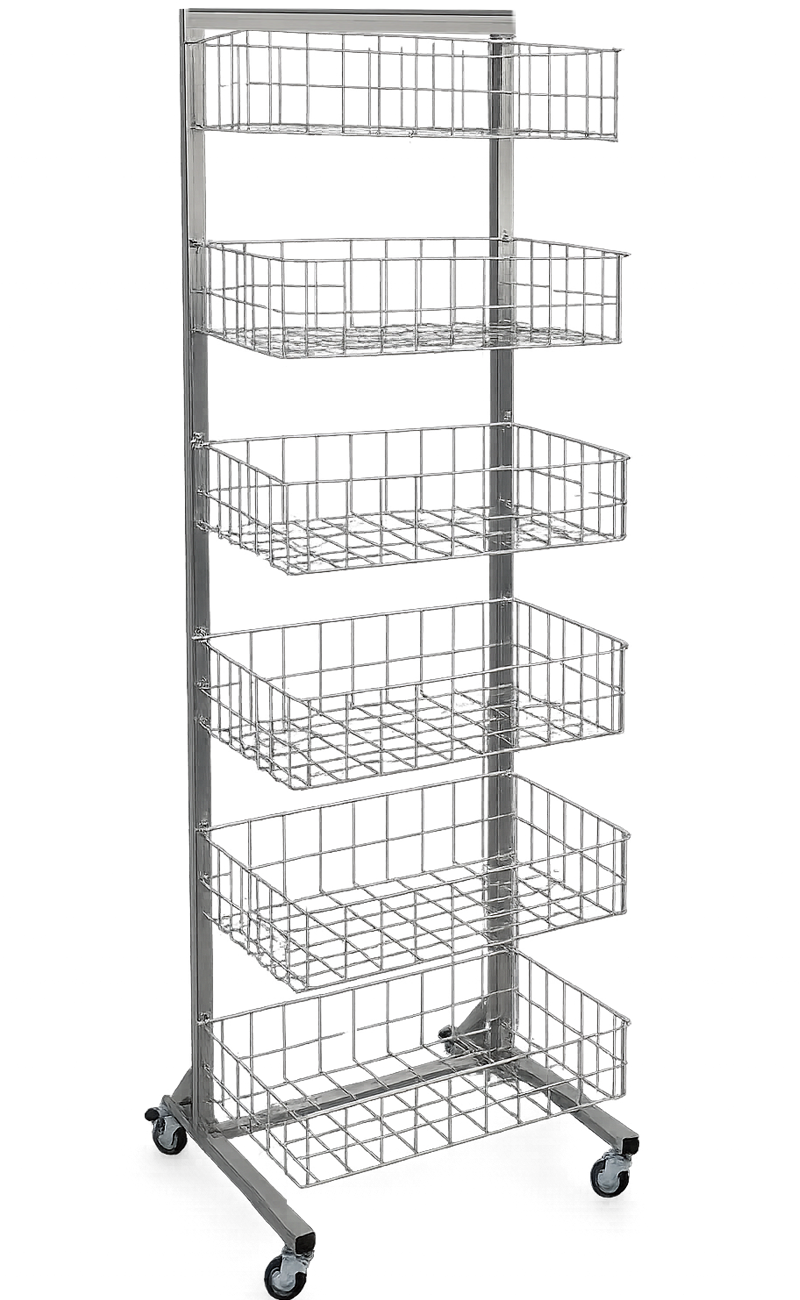

Mobile Sterilization Stand
PSSN-3, PSSN-4 , PSSN-6
The stand is made of stainless steel profiles and is equipped on the sides with hooks for hanging stainless steel baskets. The base is fitted with four castors Ø 50 mm /2 braked, 2 unbraked/. The stand includes NKZ-1 baskets with a height of 100 mm. For an additional charge, higher baskets with a height of 200 or 300 mm can also be used for the PSSN-3 and PSSN-4 versions.
- Dimensions:
- PSSN-3: w 600 × h 1650 × d 500 mm
- PSSN-4: w 600 × h 1650 × d 500 mm
- PSSN-6: w 600 × h 1650 × d 500 mm

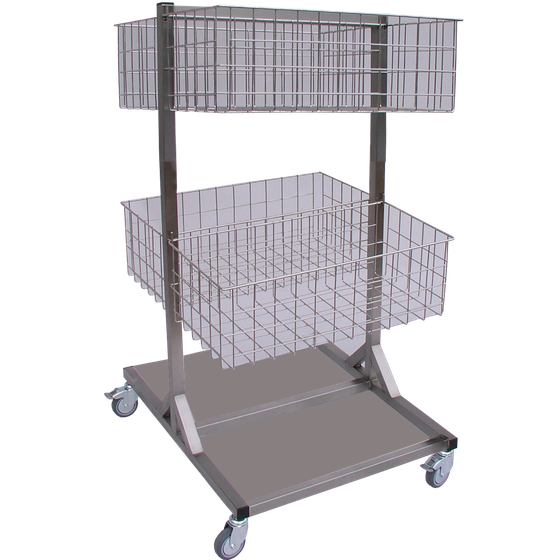

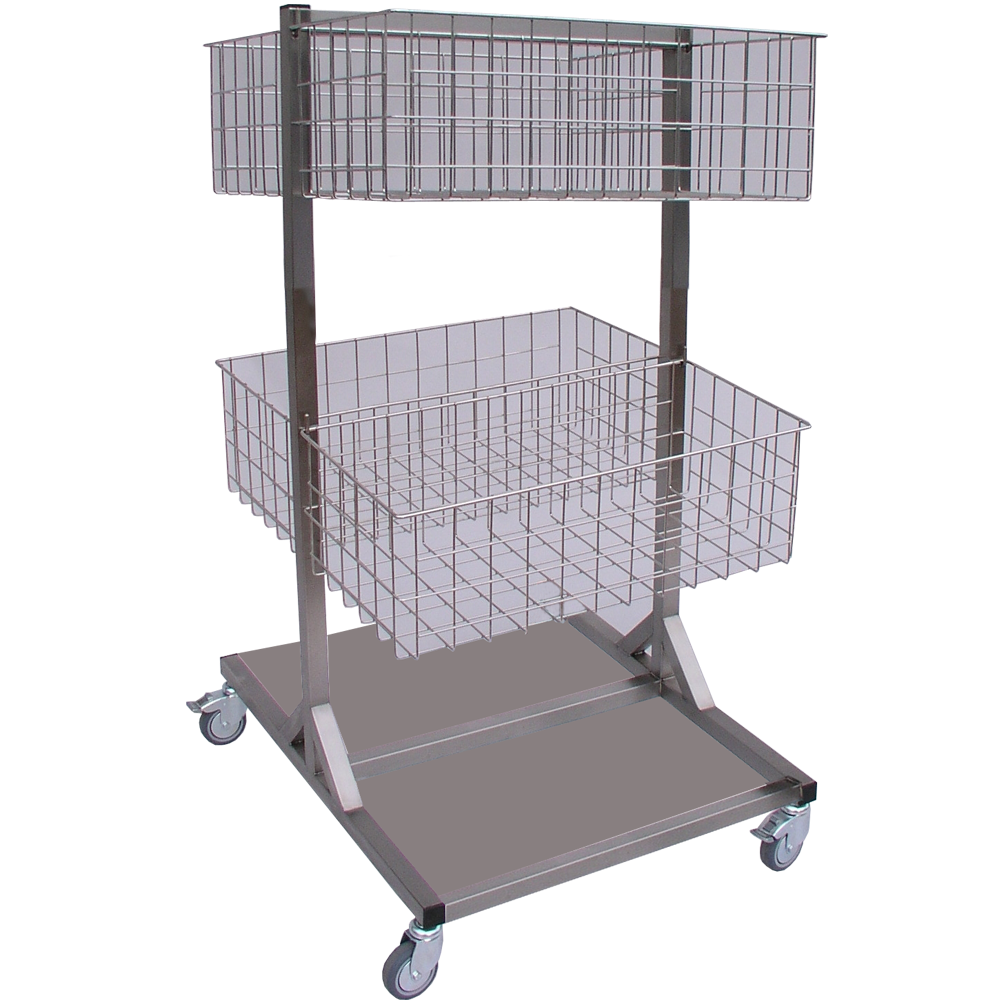

PSSNO-4P Mobile Sterilization Stand
Double-Sided with Four Stainless Steel Baskets
The double-sided stand is made of stainless steel profiles and is equipped on the sides with hooks for hanging 4 stainless steel baskets. The base is fitted with a stainless steel storage shelf and four castors Ø 50 mm /2 braked, 2 unbraked/. The stand includes NKZ-1 baskets with a height of 100 mm. For an additional charge, higher baskets with a height of 200 or 300 mm can also be used.
- Dimensions: w 600 × h 1050 × d 700 mm

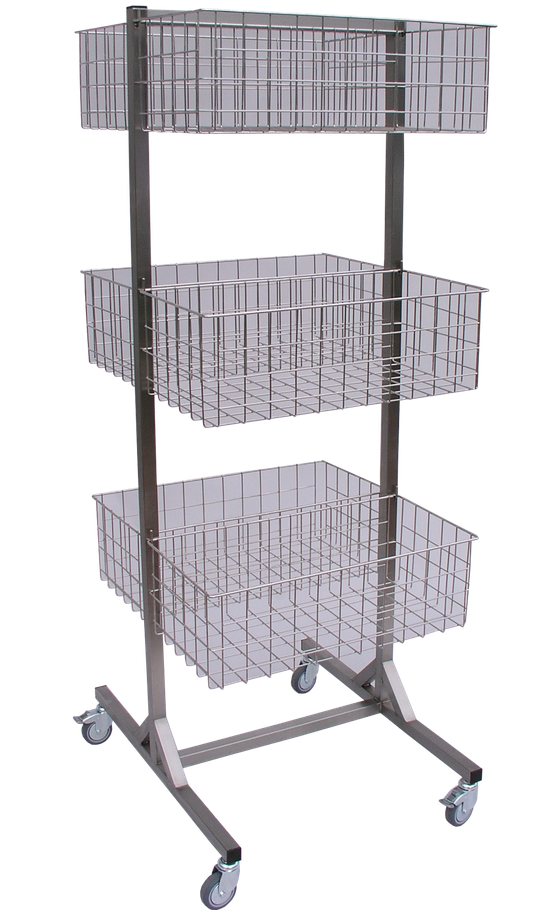

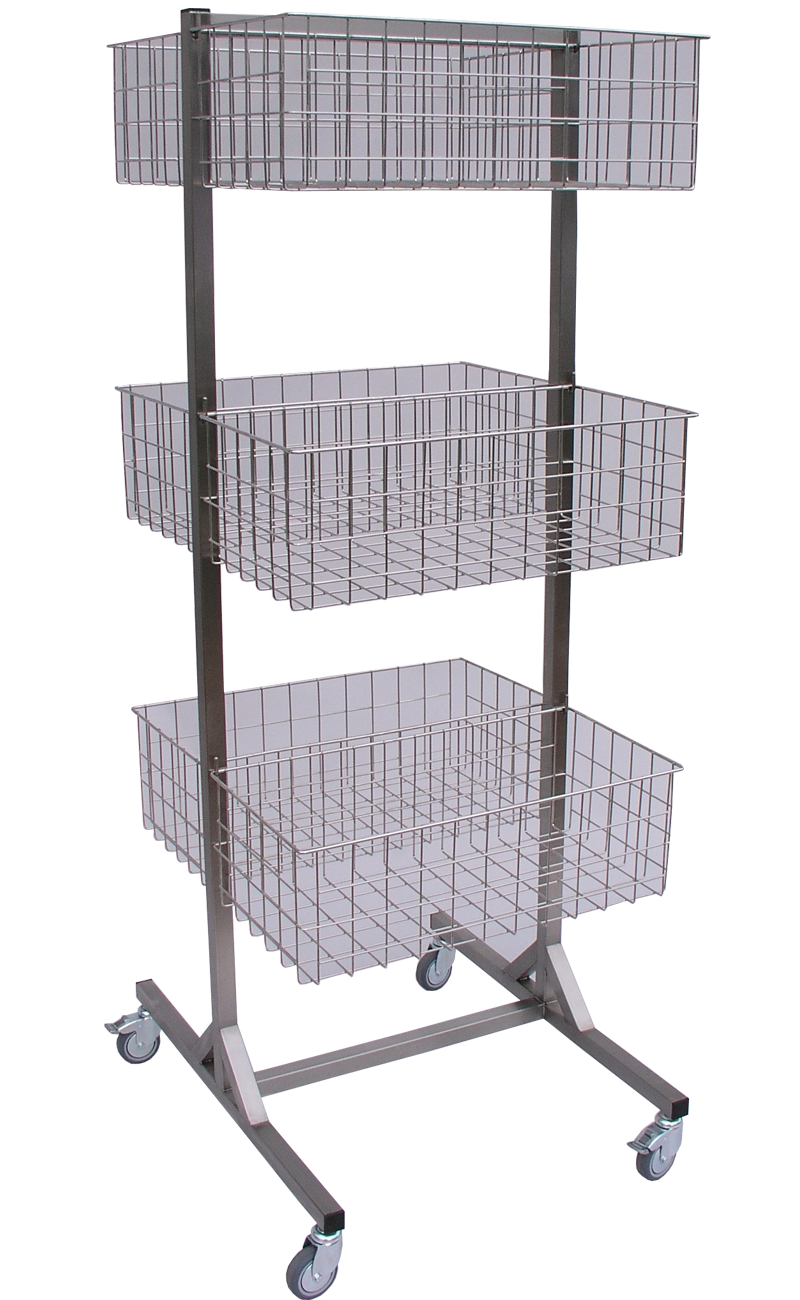

PSSNO-6 Mobile Sterilization Stand
Double-Sided with Six Stainless Steel Baskets
The double-sided stand is made of stainless steel profiles and is equipped on the sides with hooks for hanging 6 stainless steel baskets. The base is fitted with four castors Ø 50 mm /2 braked, 2 unbraked/. The stand includes NKZ-1 baskets with a height of 100 mm. For an additional charge, higher baskets with a height of 200 or 300 mm can also be used.
- Dimensions: w 600 × h 1650 × d 700 mm

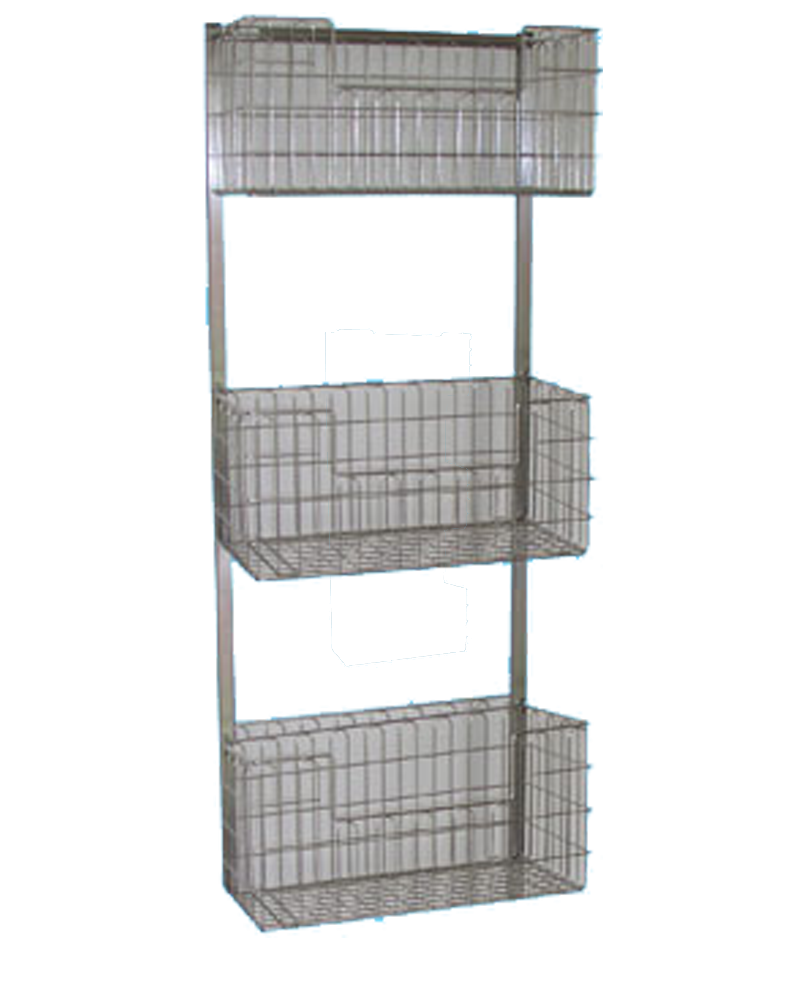

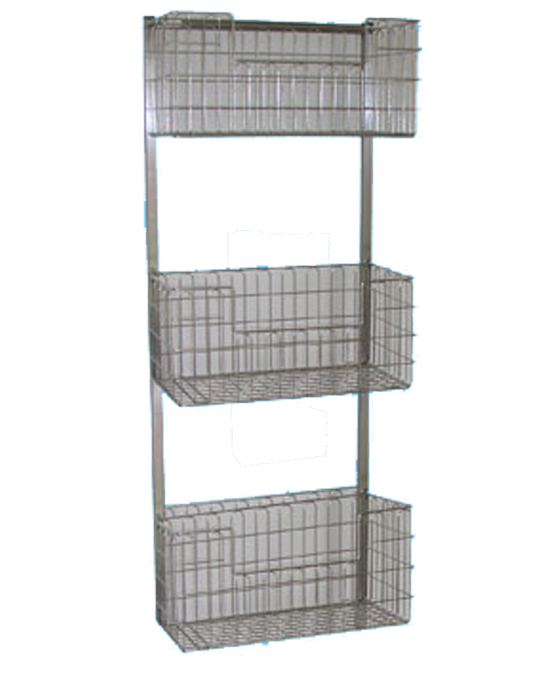

ZSSN-3 Hanging Sterilization Stand
The stainless steel stand is designed for baskets 600 × h 300 mm. Stainless steel baskets with a front opening or NKZ-3 baskets can be conveniently used.
- Dimensions: w 600 × d 350 × h 1550 mm

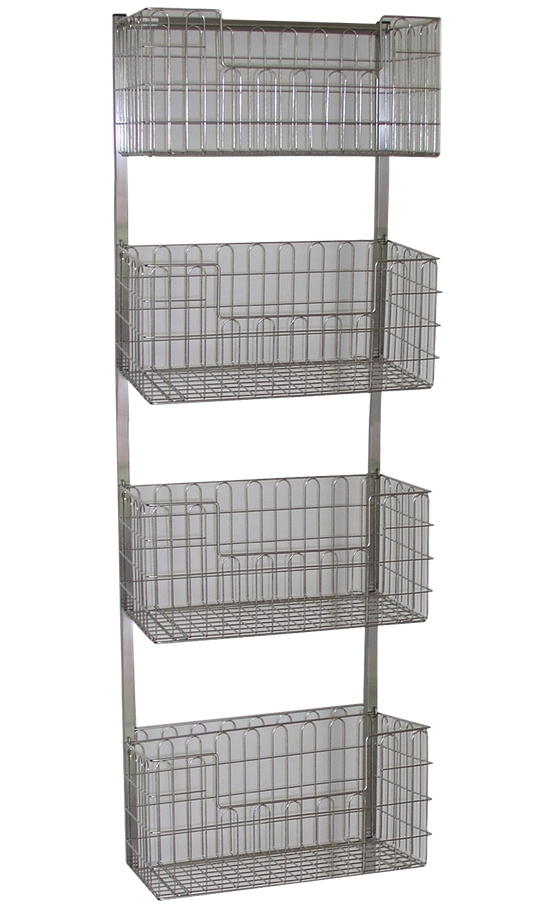

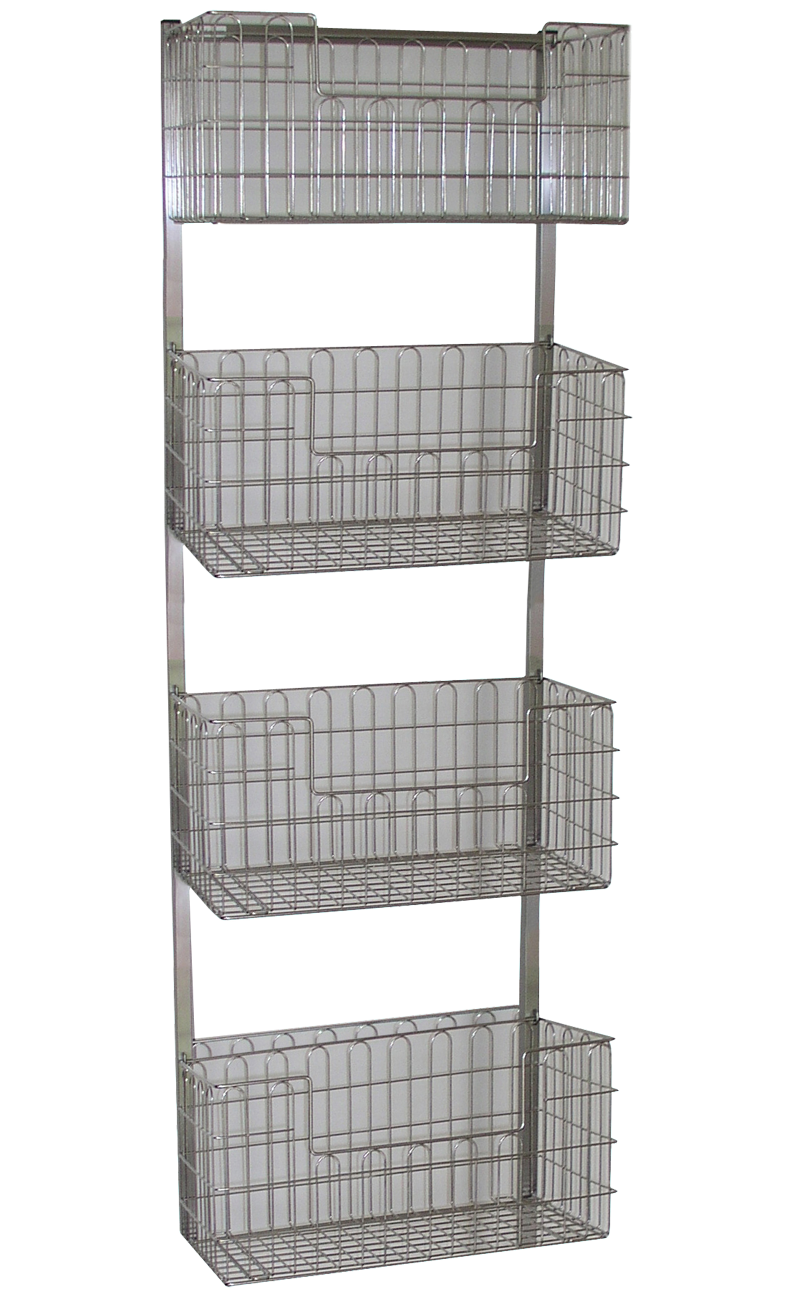

ZSSN-4 Hanging Sterilization Stand
The stainless steel stand is designed for baskets 600 × h 100–200 mm.
- Dimensions: l 600 × d 350 × h 1550 mm

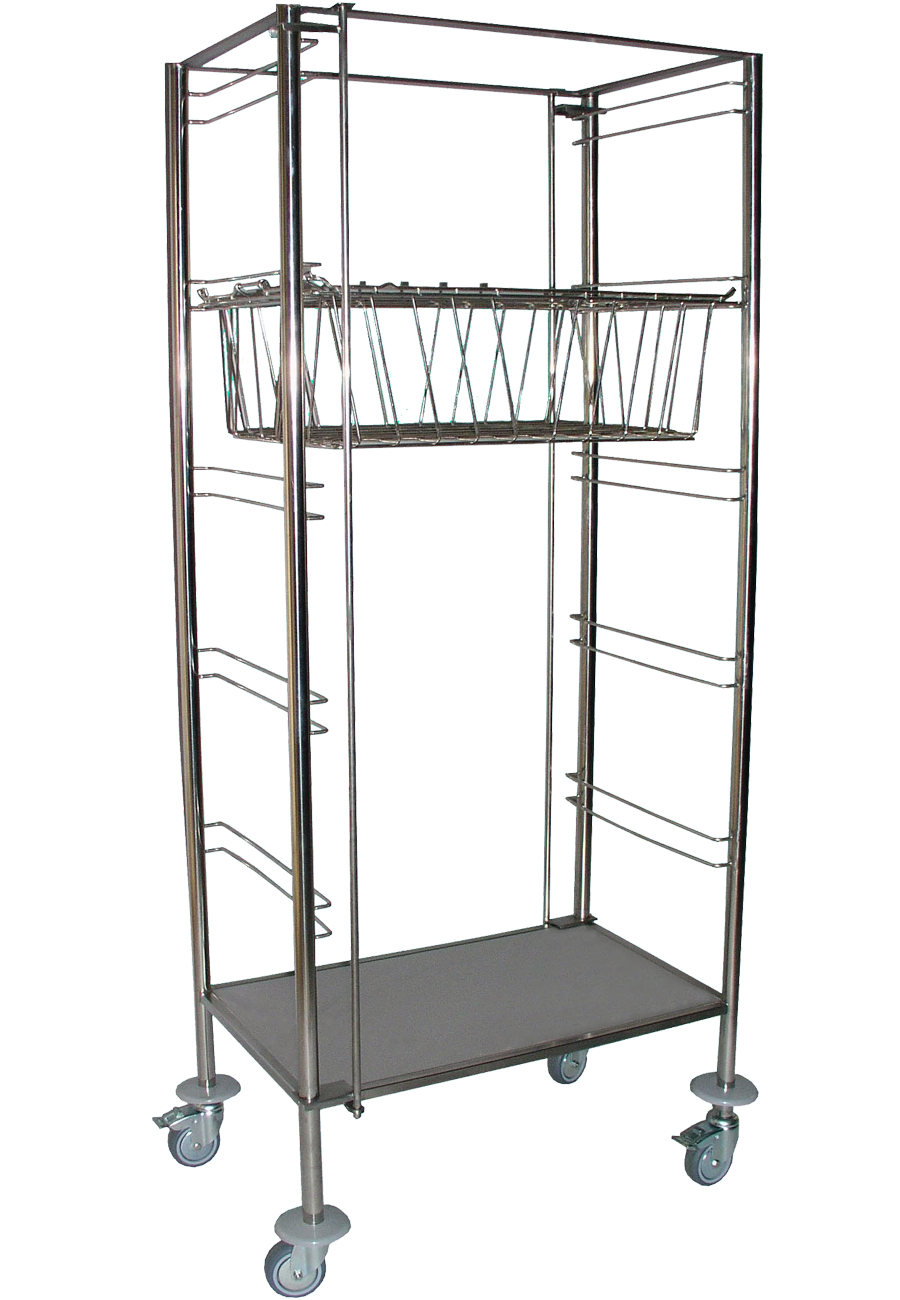

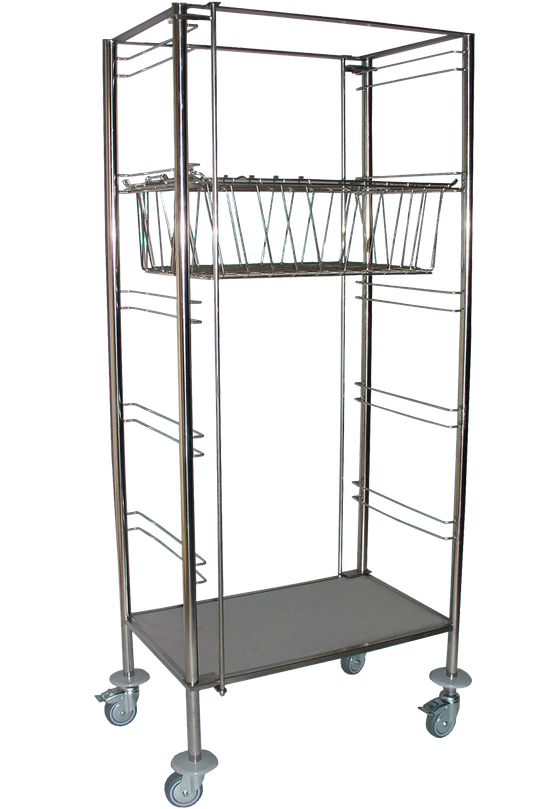

OPSN Double-Sided Pass-Through Sterilization Stand
The all-stainless-steel stand is designed for storing five stainless steel stackable baskets from both sides. The basket size is compatible with GETINGE baskets. The baskets are secured against sliding out by a simple mechanical system. The stand base is fitted with 2 braked and 2 unbraked castors Ø 75 mm.
- Dimensions: w 650 × d 400 × h 1500 mm

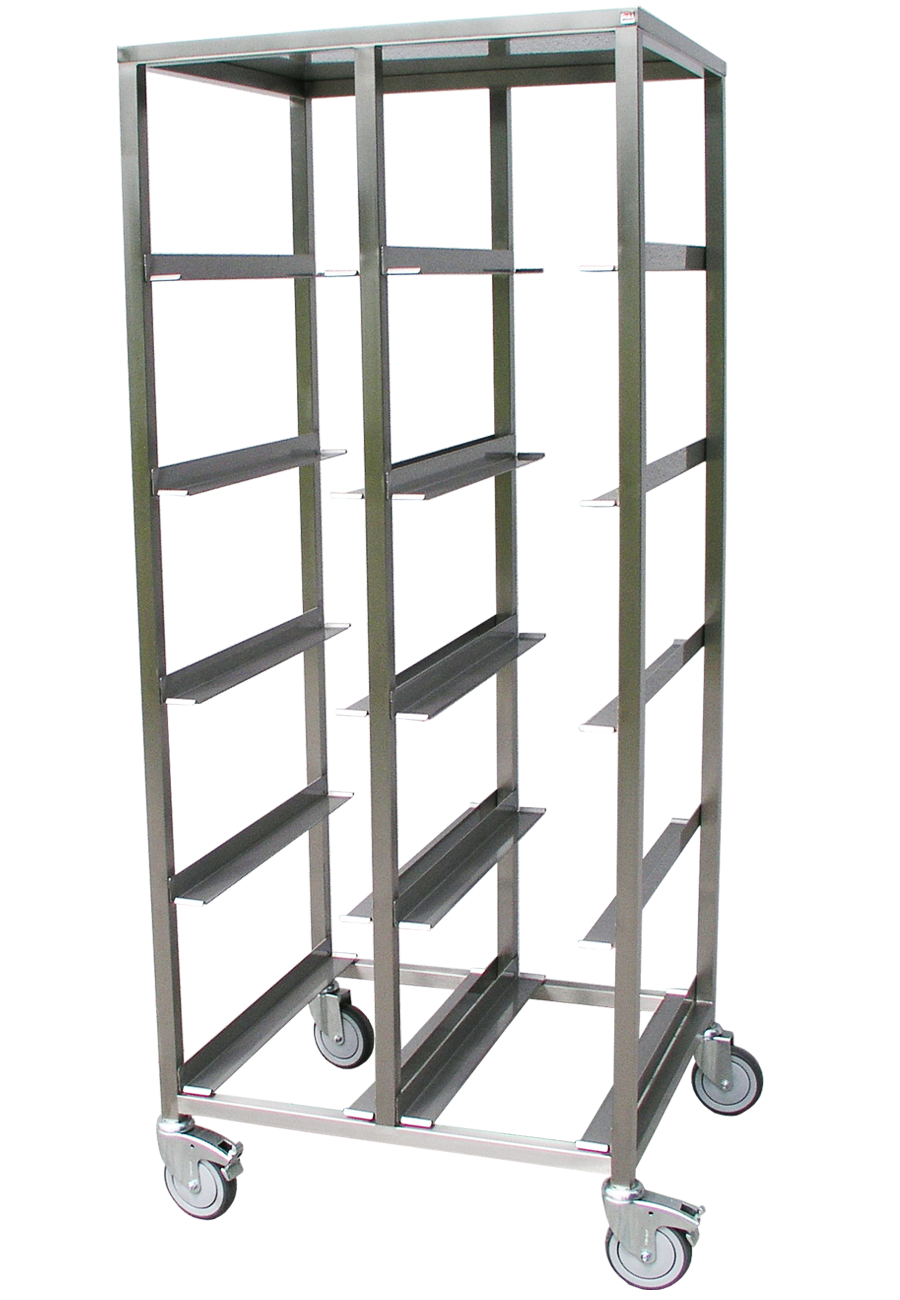

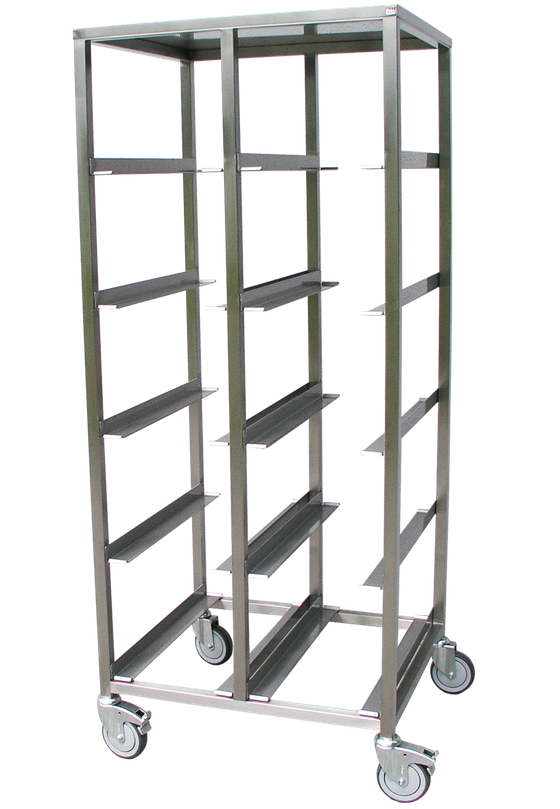

SRKN-2 Rack for Sterilization Containers
The stainless steel rack is designed for storing standard sterilization containers measuring 300 × 300 × h 260 mm. The fixed welded runners are fitted at the ends with a raised edge to prevent the containers from sliding out. Five containers can be inserted side by side on each side. The rack is fitted with two unbraked and two braked castors Ø 75 mm. For an additional charge: available with castors Ø 125 mm.
- Dimensions: l 730 × d 650 × h 1750 mm

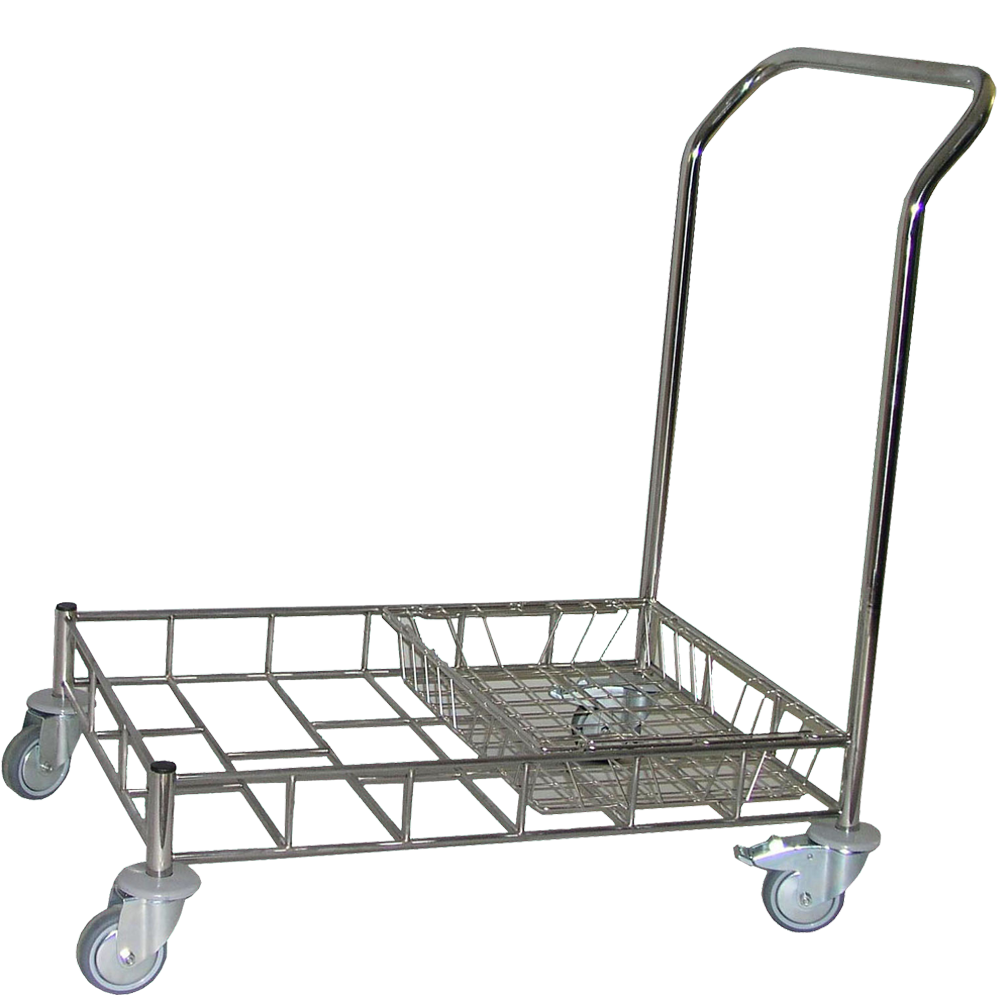

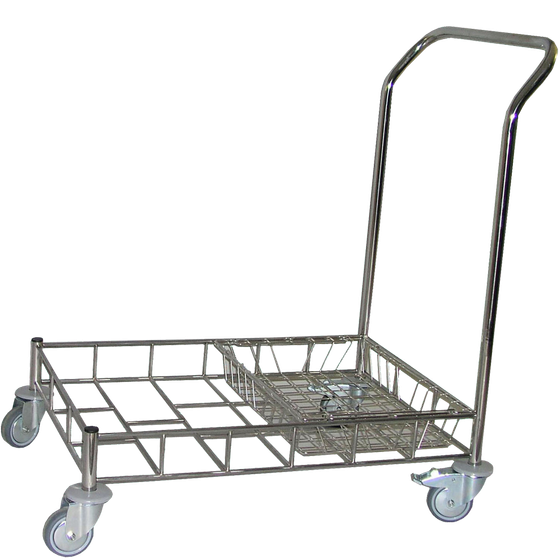

Trolley for Transporting Sterilization Baskets / Compatible with GETINGE /
VNK-600/A – 2 baskets, VNK-600/B – 1 basket
The trolley is made of stainless steel profiles and is equipped with a handle for easy handling. It is designed for transporting one or two stackable sterilization baskets measuring 585 × 395 mm. The trolley is fitted with castors Ø 125 mm.
- Dimensions: 850 × 650 × h 900 mm

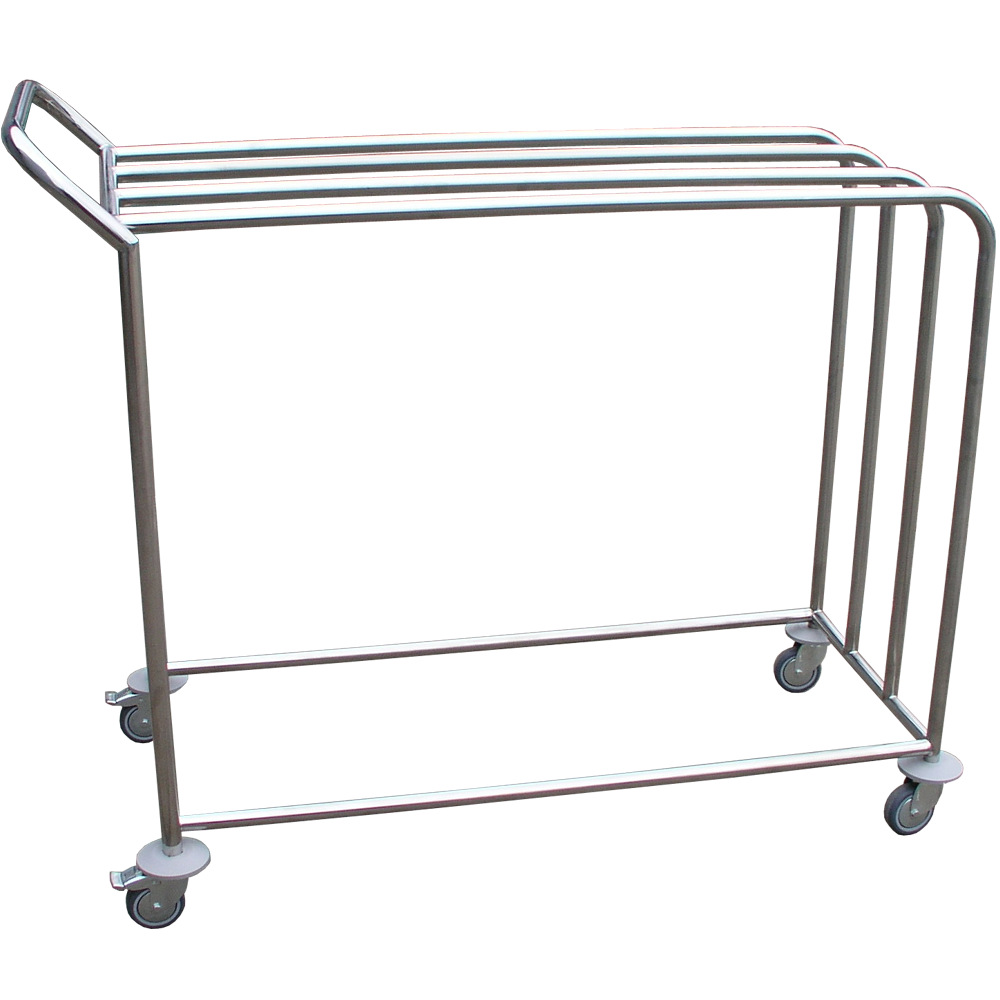

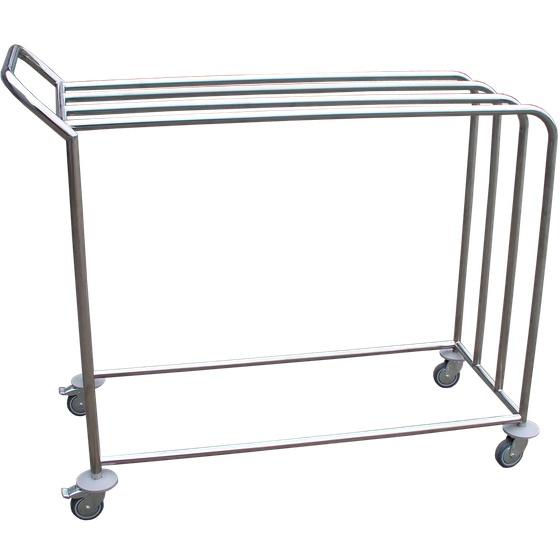

SSP-1300 / SSP-1500 Stand for Sterilization Paper
The SSP-1300 stand is made of stainless steel profiles.
It is designed for storing sterilization paper and drapes on 4 tubes.
The SSP-1500 stand is made of stainless steel profiles.
It is designed for storing sterilization paper and drapes on 6 tubes.
Each tubular profile is fitted with a tilting device for fixing the paper.
It is fitted with two unbraked and two braked castors Ø 75 mm with rubber bumpers.
- Overall dimensions SSP-1300: l 1400 × w 600 × h 900 + 100 mm handle
- Overall dimensions SSP-1500: l 1600 × w 650 × h 900 + 100 mm handle

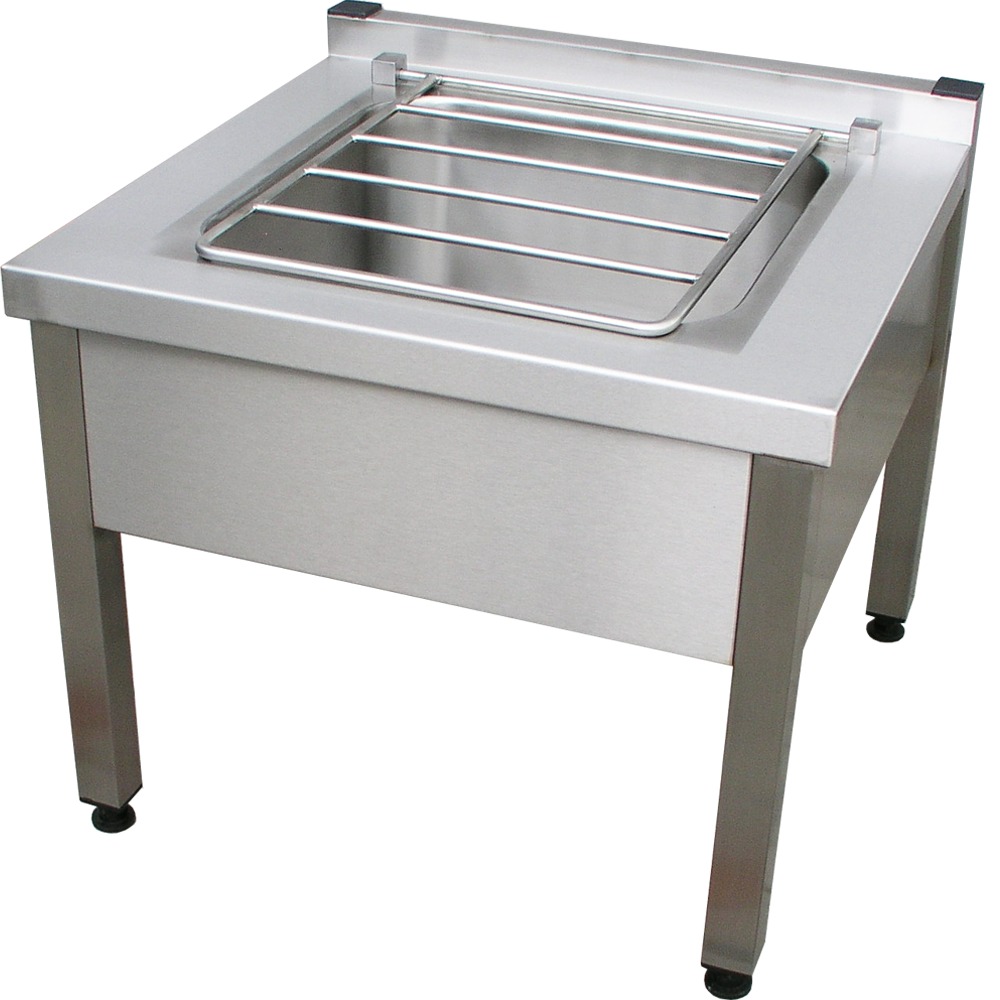

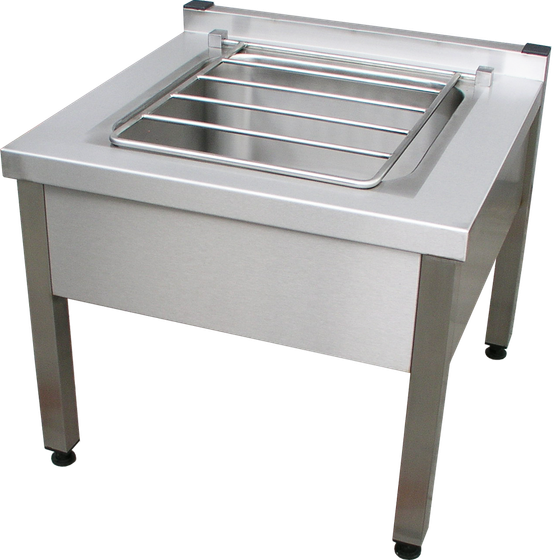

VL-1 Stainless Steel Slop Sink
The all-stainless-steel slop sink is fitted with a hinged grate.
The sink includes an outlet siphon Ø 50 mm.
- Dimensions: l 500 × w 530 × h 500 mm
