Stands

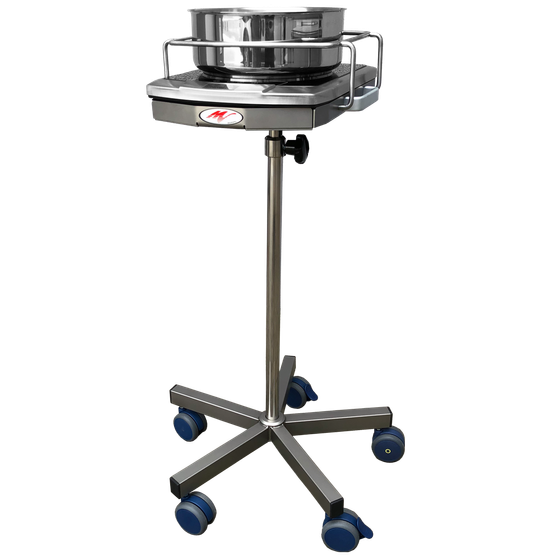

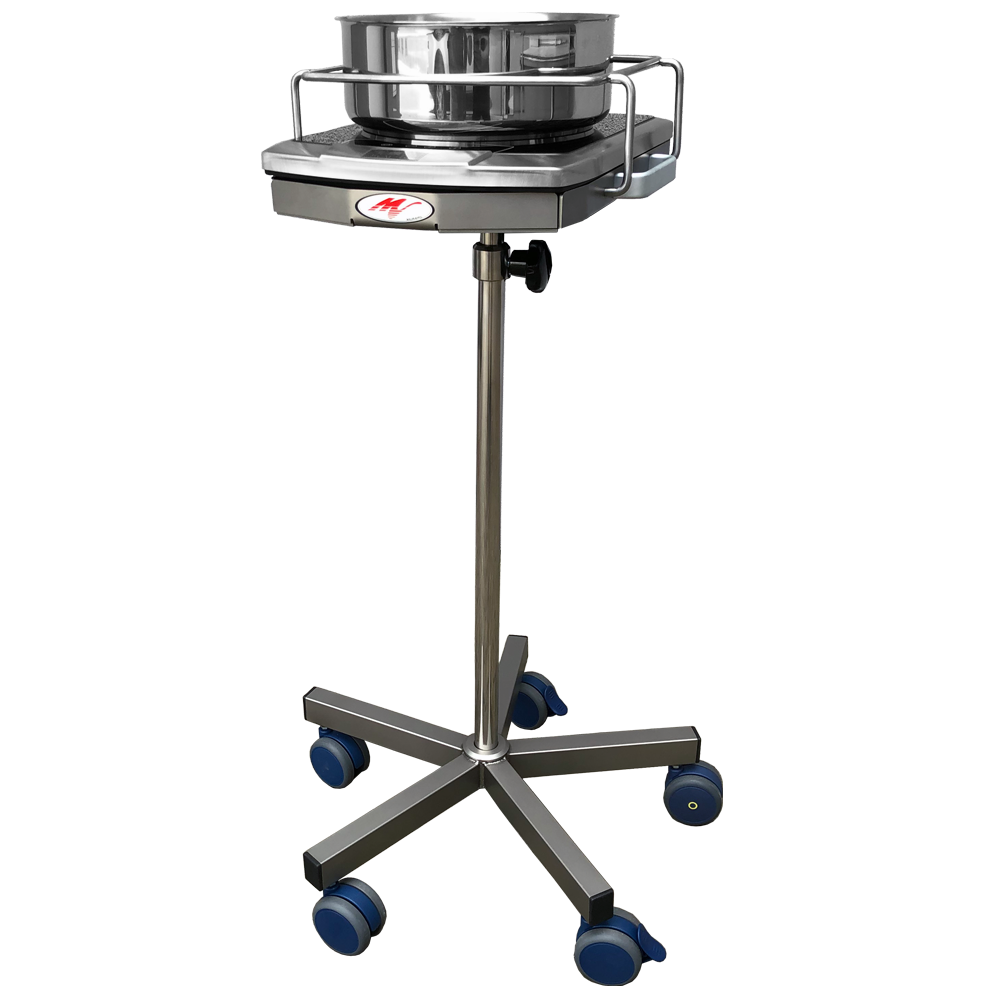

SMO-1 Heated Bowl Stand
Digital solution heater
Designed for operating theatres to heat solutions to the required temperature.
The temperature control range is 30–80 °C, with digital adjustment in 10 °C increments. The unit is also equipped with a special rapid-heating button. For safety reasons, it includes both visual and acoustic overheating protection signals.
The stand is made of stainless steel and allows manual height adjustment from 850 to 1150 mm. The base is fitted with Ø 75 mm anti-static rubber castors, two of which are braked.

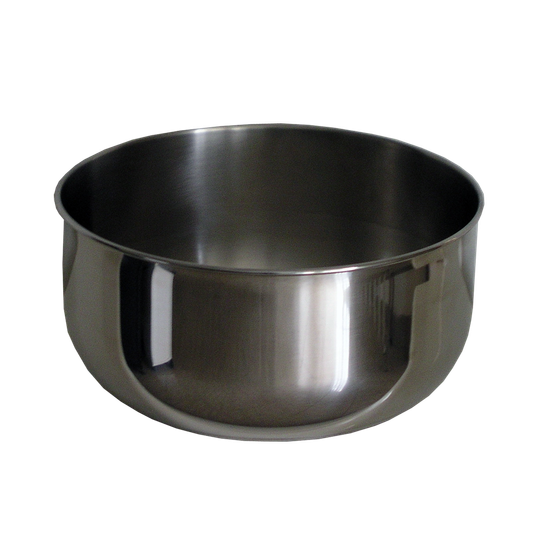

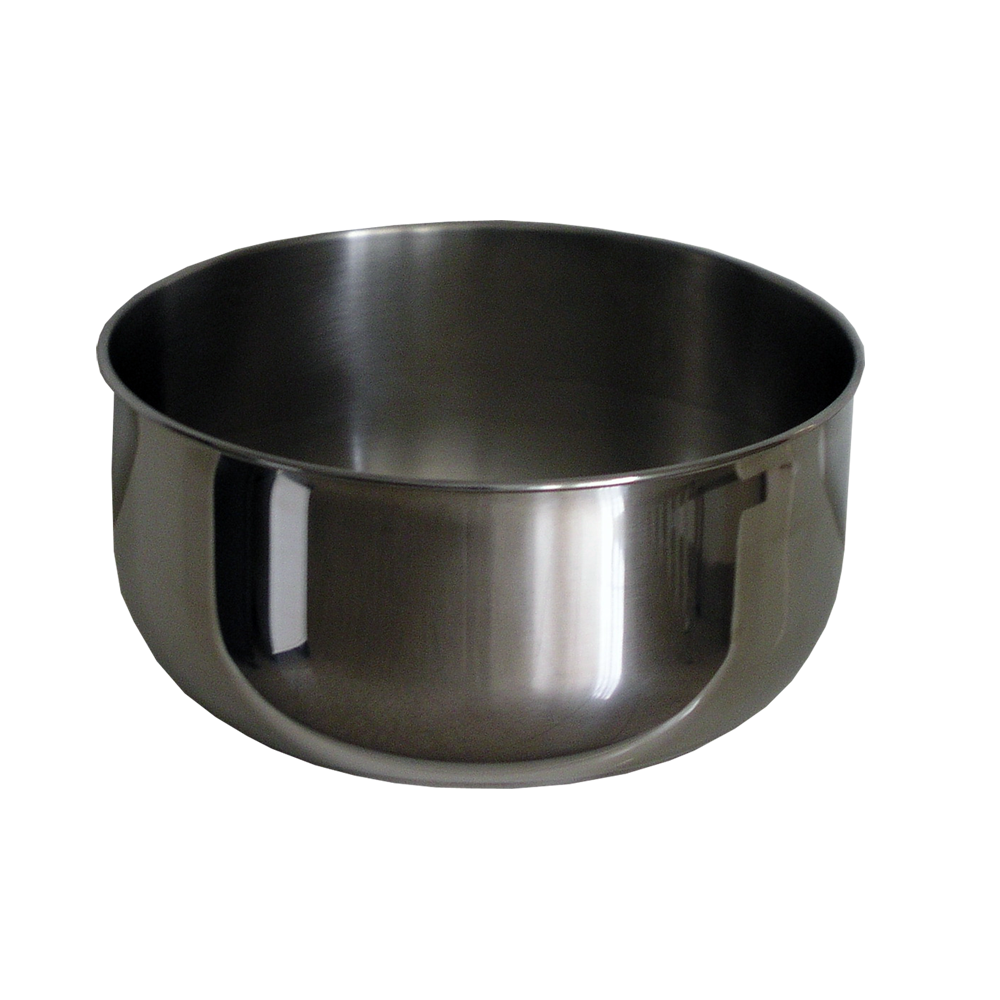

The SMO-1 stand includes a stainless steel boiling bowl VM-1 with a capacity of 4 litres or VM-2 with a capacity of 7 litres. The bowl is marked in 1-litre increments. Warranty: 5 years.
- Dimensions: 550 × h 850–1150 mm
- Power supply: 230 V / 50 Hz – 1000 / 2200 W rapid heating

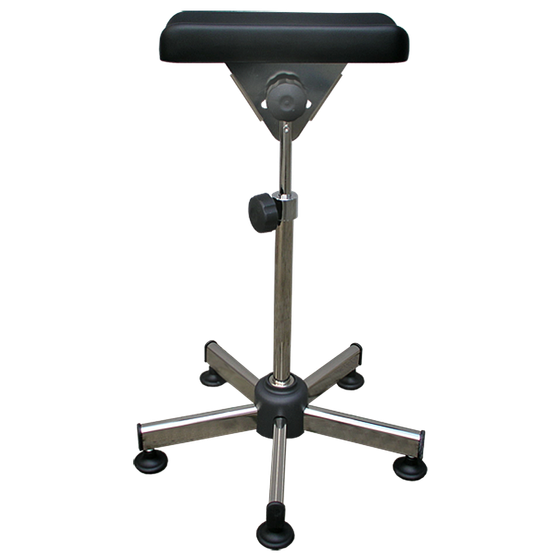

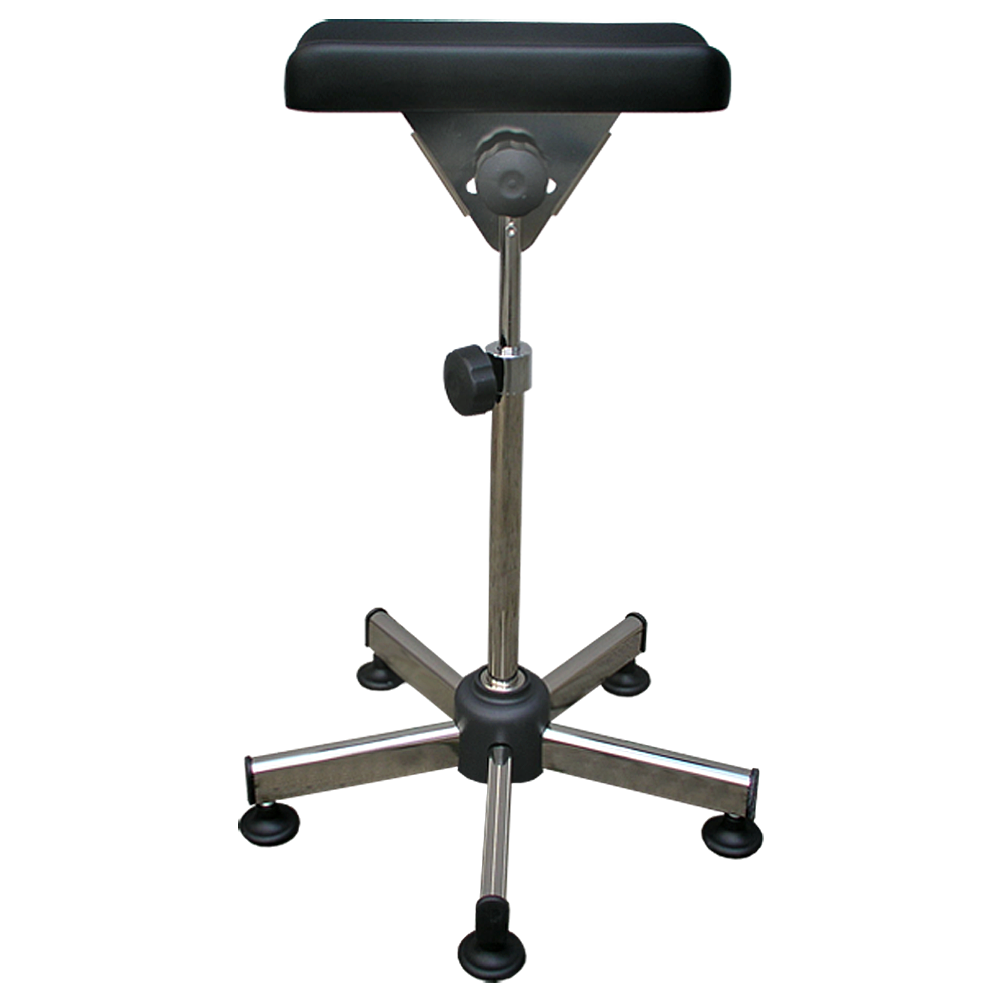

SNK-1 Limb Support Stand
The stand is made of chrome-plated profiles and the shaped support is made of polyurethane material. It is designed to support an arm or leg during treatment or dressing changes, especially for elderly patients who have difficulty lifting their limbs after surgical procedures.
The support, measuring 300 × 115 mm, can be tilted within a range of -45° / +45° and the height can be adjusted from 600 to 800 mm using two separate locking screws. The base is fitted with plastic glides. Plastic Ø 50 mm castors can be supplied for an additional charge.
- Dimensions: w 420 × h 600–800 mm

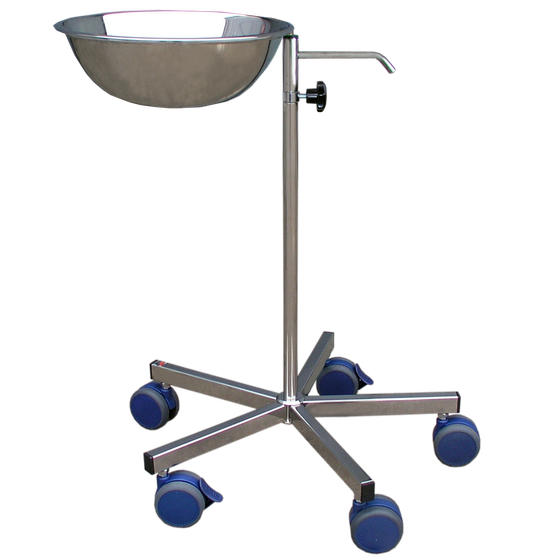

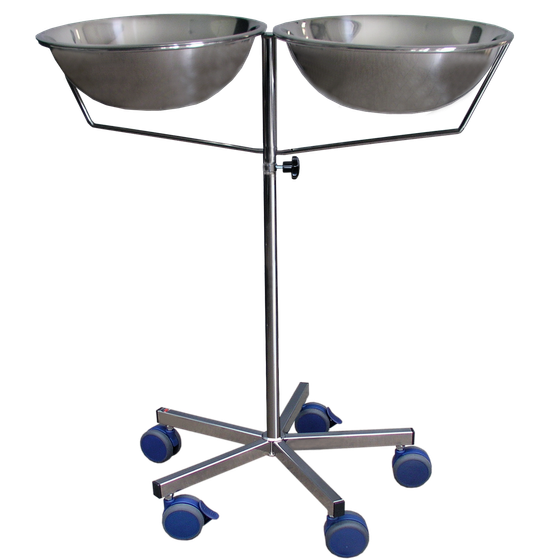

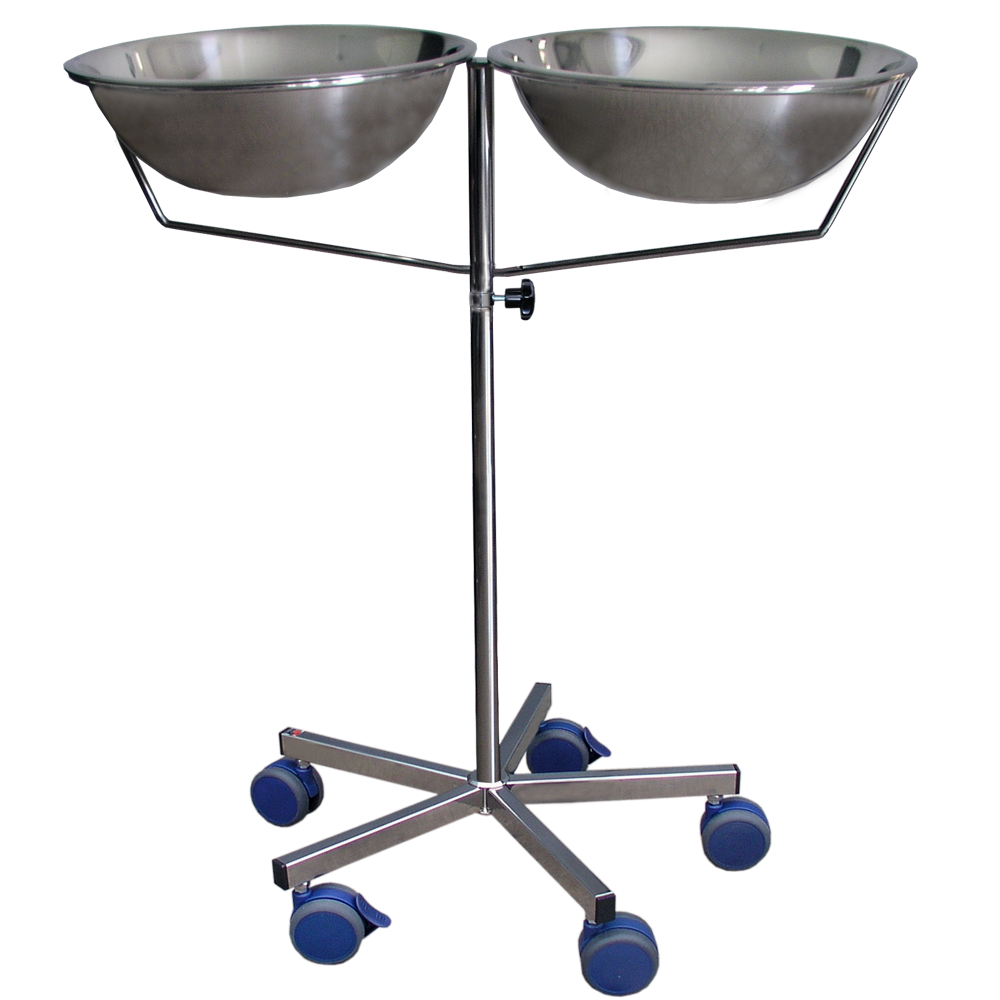

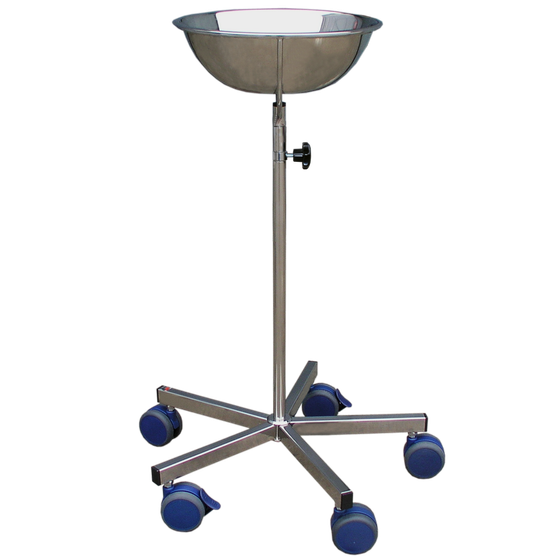

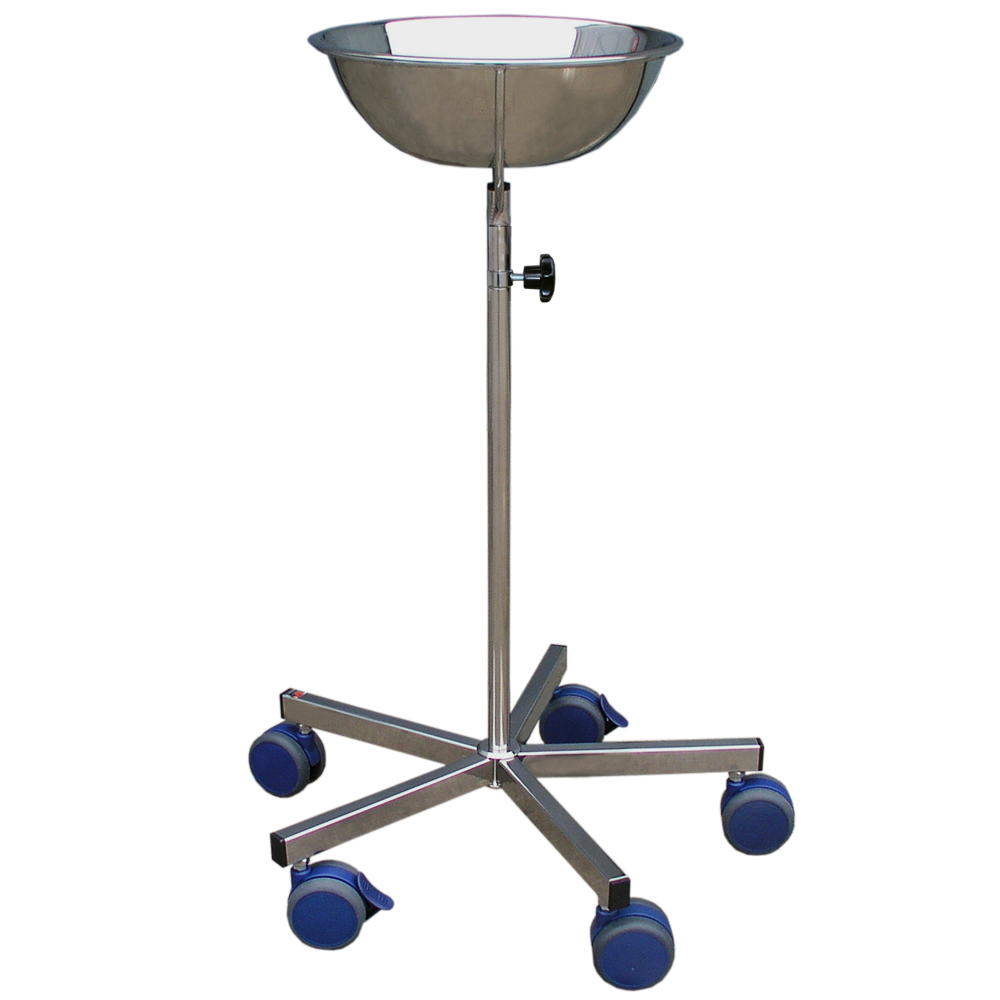

Stainless Steel Stand for Aseptic Basin
SAUN-1, SAUN-2, SAUN-1D
The stand is made of stainless steel profiles. It includes a stainless steel aseptic basin with a diameter of Ø 340 mm, depth of 120 mm and capacity of 6 litres.
The basin height can be adjusted within a range of 860–1300 mm.

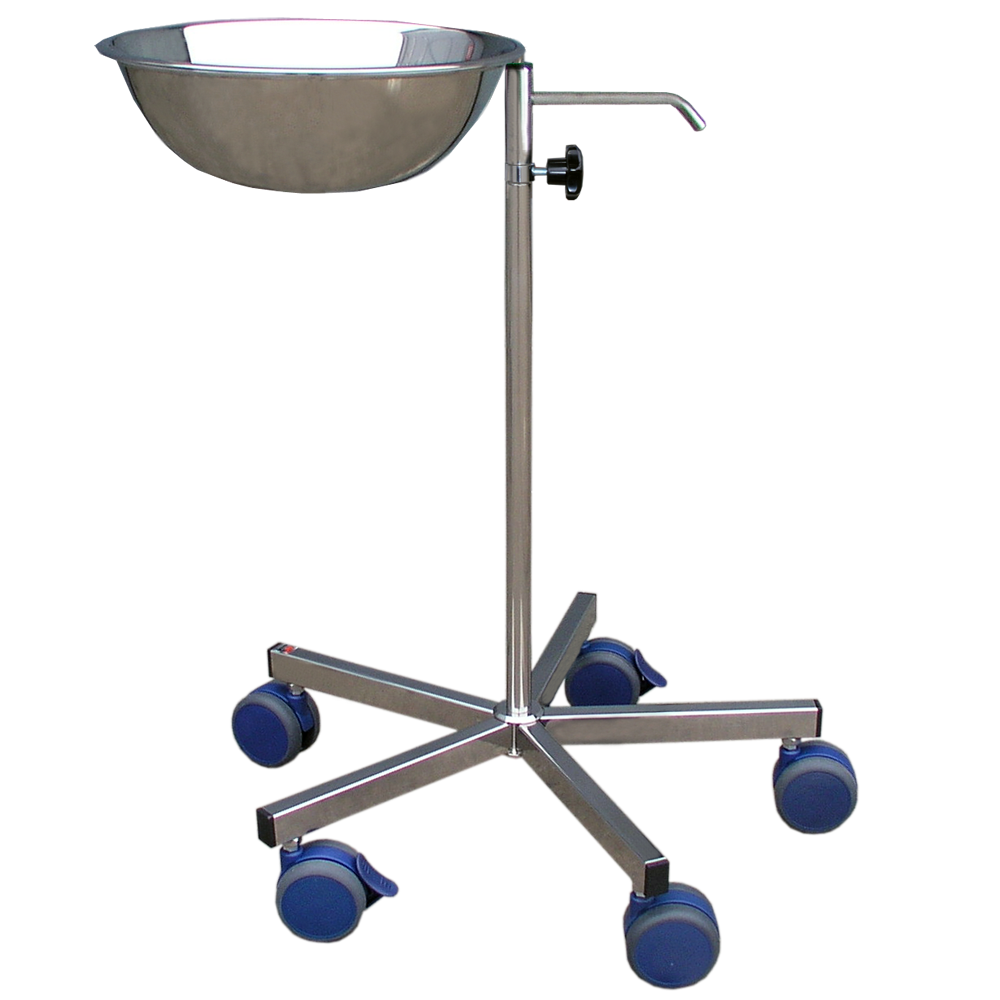

The SAUN-1D version is additionally equipped with a handling holder.
The base of the stand is fitted with five rubber swivel castors Ø 75 mm, two braked and three unbraked.
- Dimensions: l 450 × w 450 × h 860–1300 mm

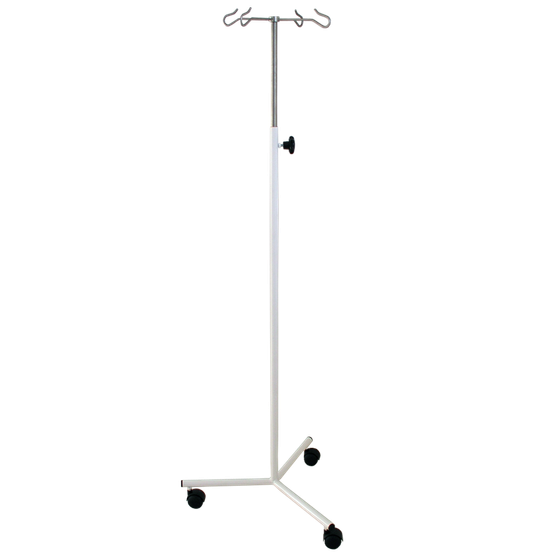

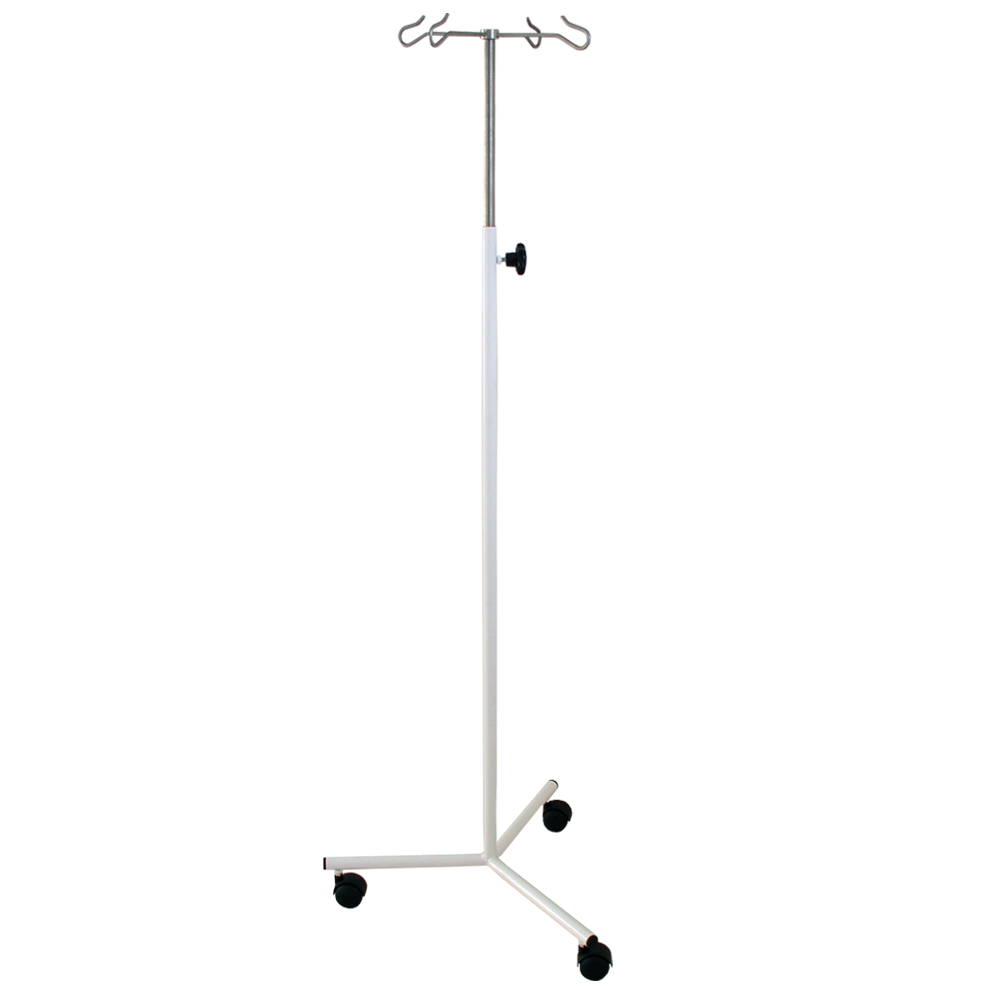

ISL-3 Painted IV Stand
Painted IV stand with a three-arm base and a height-adjustable stainless steel holder with four plastic hooks, each with a load capacity of 2 kg.
The stand is fitted with three plastic castors Ø 50 mm, one braked and two unbraked.
- Dimensions: 550 × h 1200–2050 mm

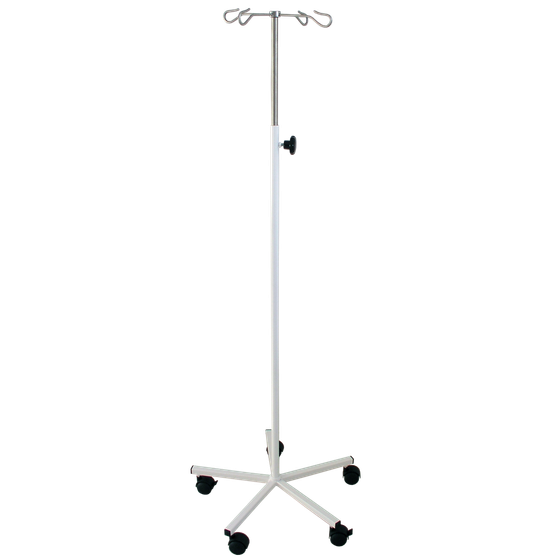

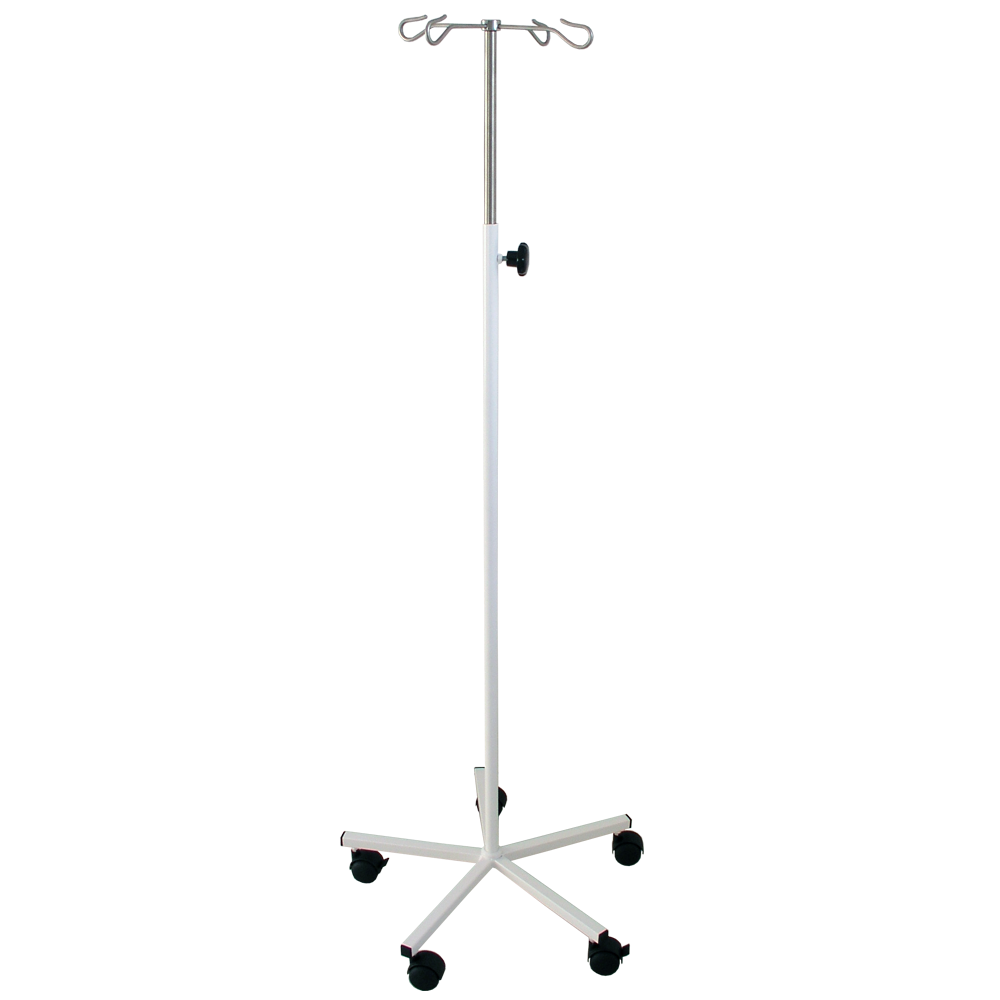

ISL-5 Painted IV Stand
Stable painted IV stand with a five-arm base and a height-adjustable stainless steel holder with four plastic hooks, each with a load capacity of 2 kg. Upon customer request, hooks with a load capacity of 6 kg can be supplied.
The stand is fitted with five plastic castors Ø 50 mm, two braked and three unbraked.
- Dimensions: 550 × h 1200–2050 mm

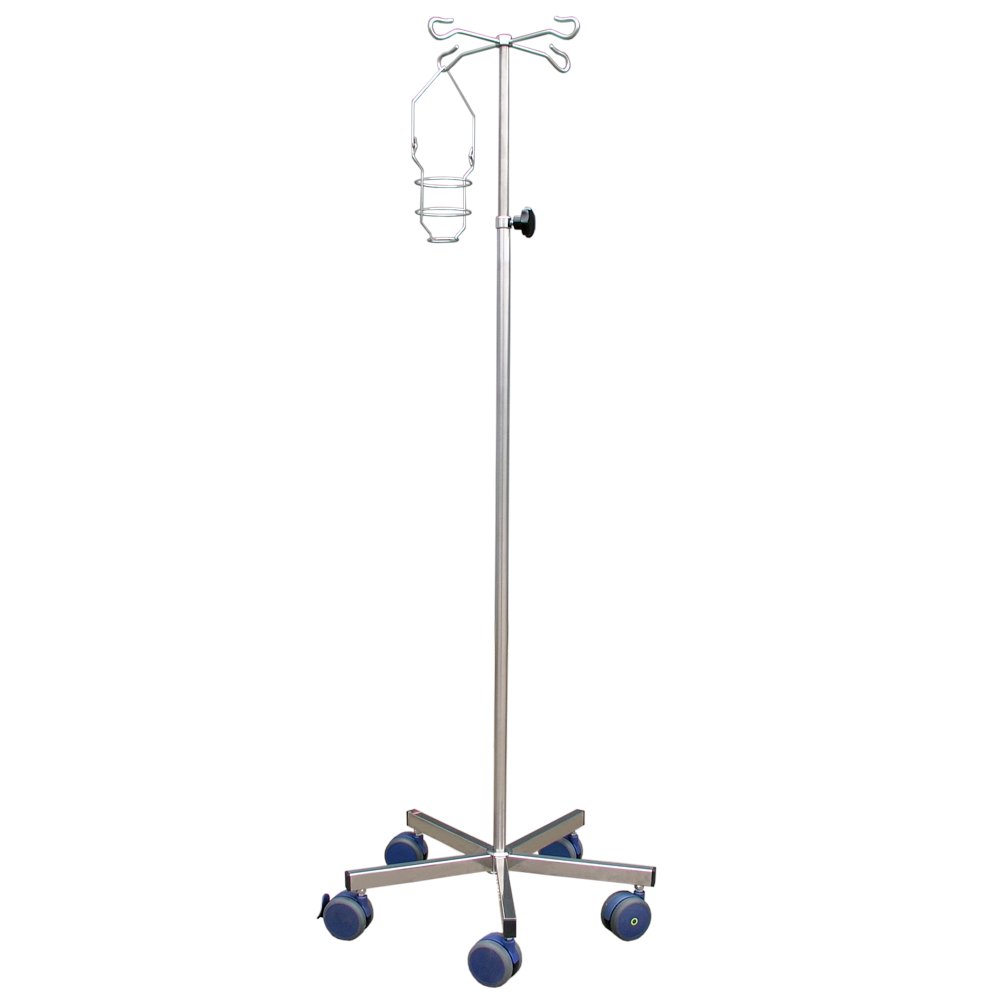

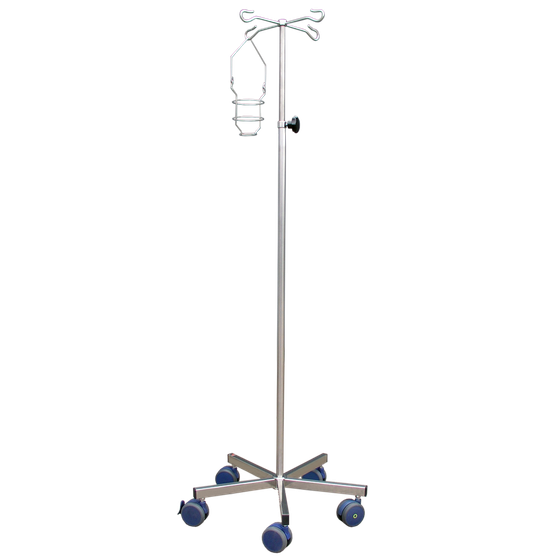

ISN-5 Stainless Steel IV Stand
For ICU and operating theatres
Stable IV stand made of stainless steel, with a five-arm base and a height-adjustable holder with four hooks, each with a load capacity of 6 kg.
The stand is fitted with five high-quality anti-static rubber castors Ø 75 mm, two braked and three unbraked.
- Dimensions: 550 × h 1200–2050 mm

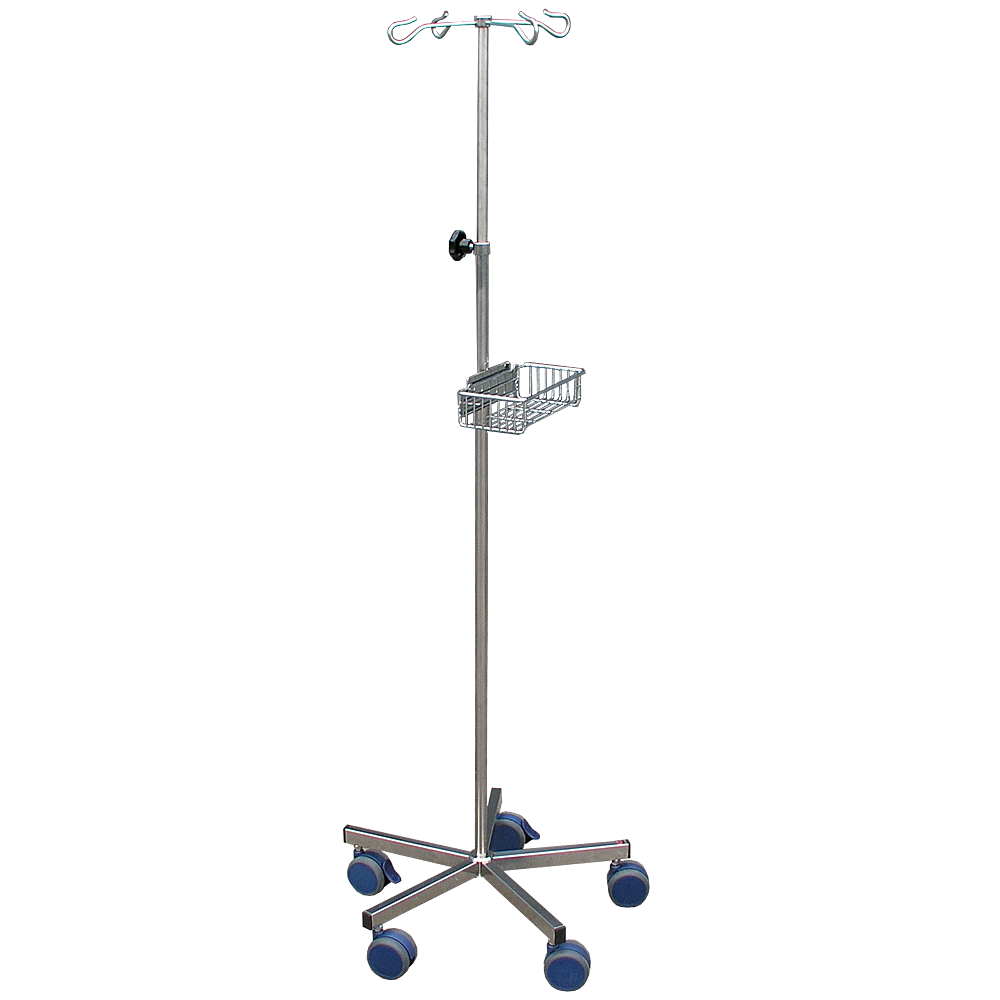

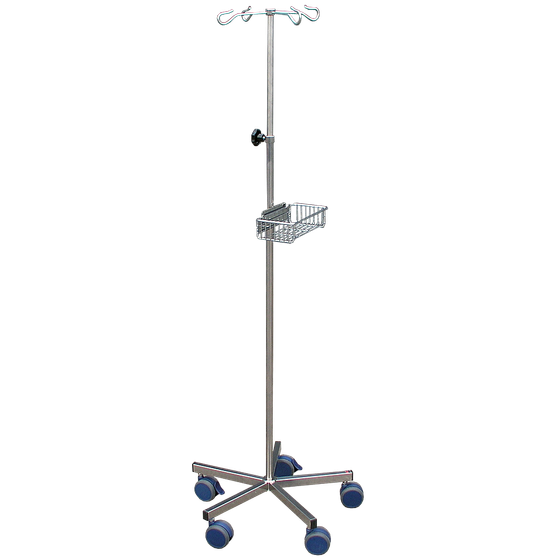

ISN-5K Stainless Steel IV Stand with Instrument Basket
For ICU and operating theatres
Stable IV stand made of stainless steel, with a five-arm base and a height-adjustable holder with four hooks, each with a load capacity of 6 kg.
This version includes a removable instrument basket, suspended on two hooks. The basket can be removed from the stand holder.
The stand is fitted with five high-quality anti-static rubber castors Ø 75 mm, two braked and three unbraked.
- Dimensions: 550 × h 1200–2050 mm
- Basket dimensions: 250 × 120 × h 70 mm – mesh size 30 × 30 mm

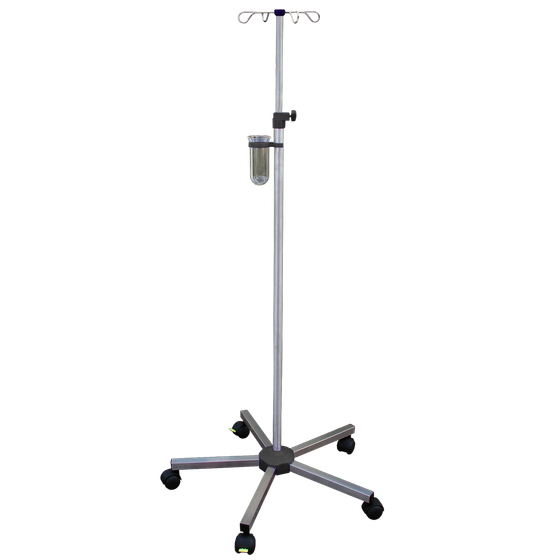

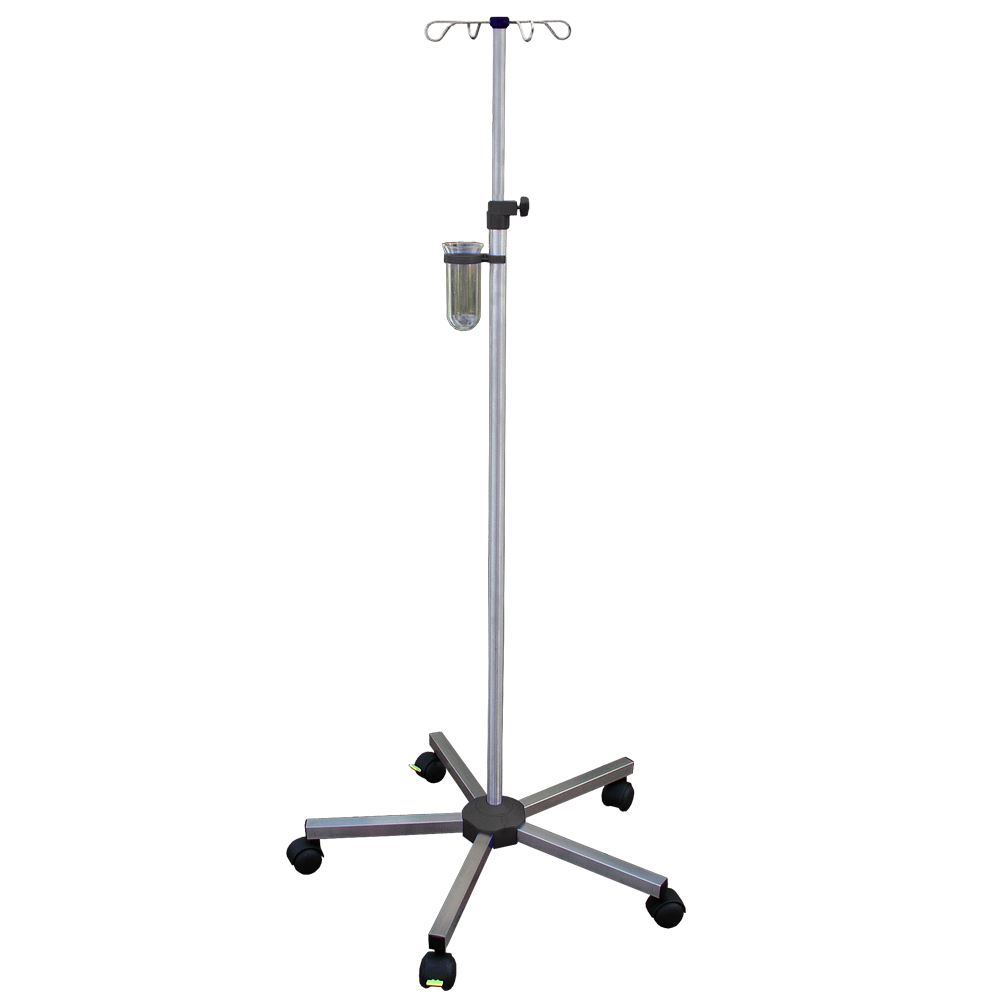

ISN-5EN Assembled Stainless Steel IV Stand
Stable assembled stainless steel stand for outpatient departments, with a load capacity of 2.5 kg per hook.
The stand also includes a drip container.
The base is fitted with anti-static plastic castors Ø 50 mm, two braked and three unbraked.
- Dimensions: 630 × h 1350–2150 mm

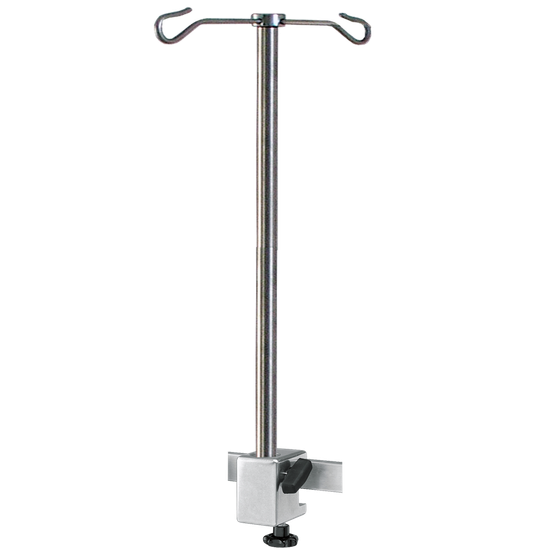

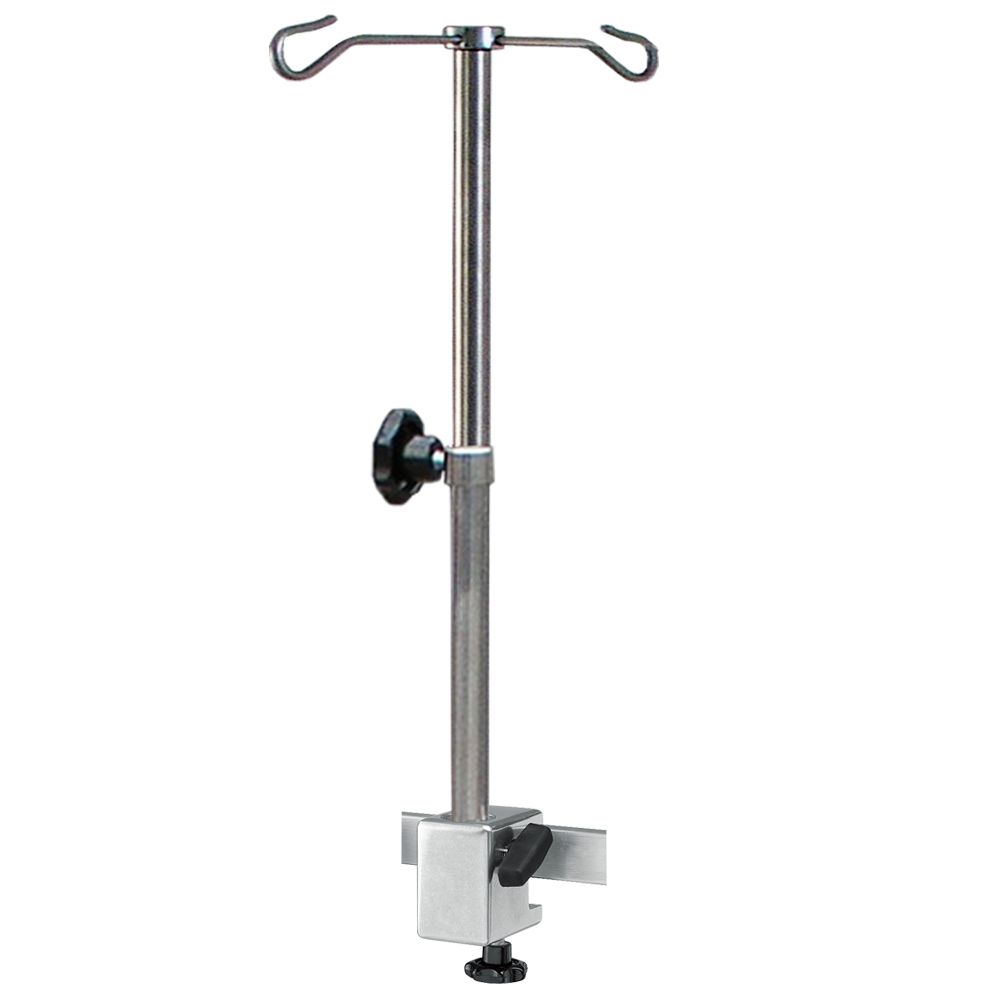

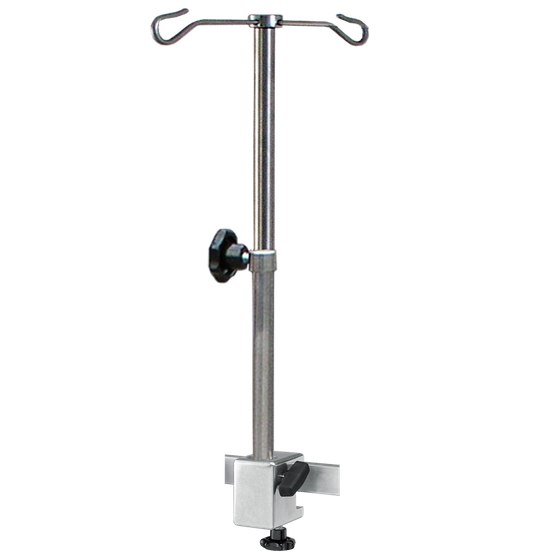

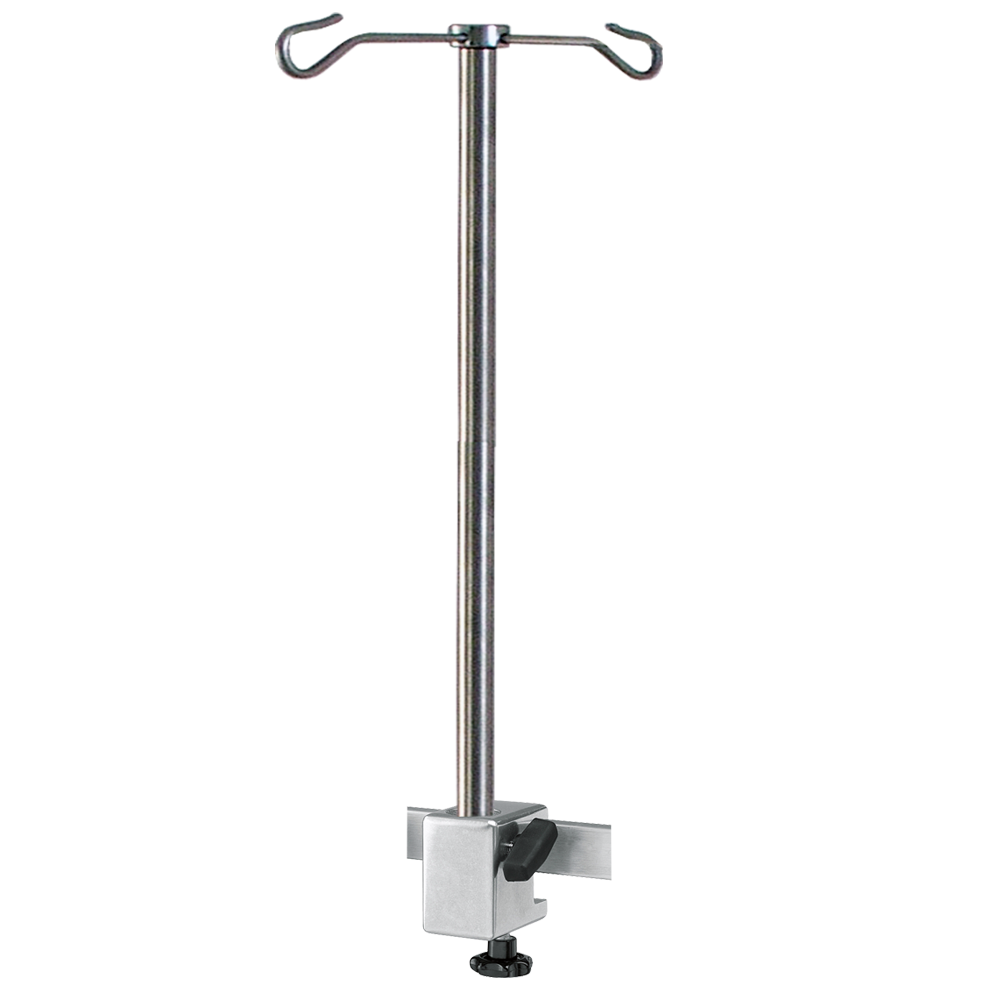

IV Stand – ISNL-1 / ISNL-2
The IV stand is made of stainless steel profiles, with height adjustment and a head equipped with two hooks. It includes a holder for attachment to a 25 × 10 mm Euro rail on a bed or examination couch.
Hook load capacity: 5 kg.
- Adjustable height ISNL-1: 200–900 mm above the bed
- Adjustable height ISNL-2: 750–1300 mm above the bed

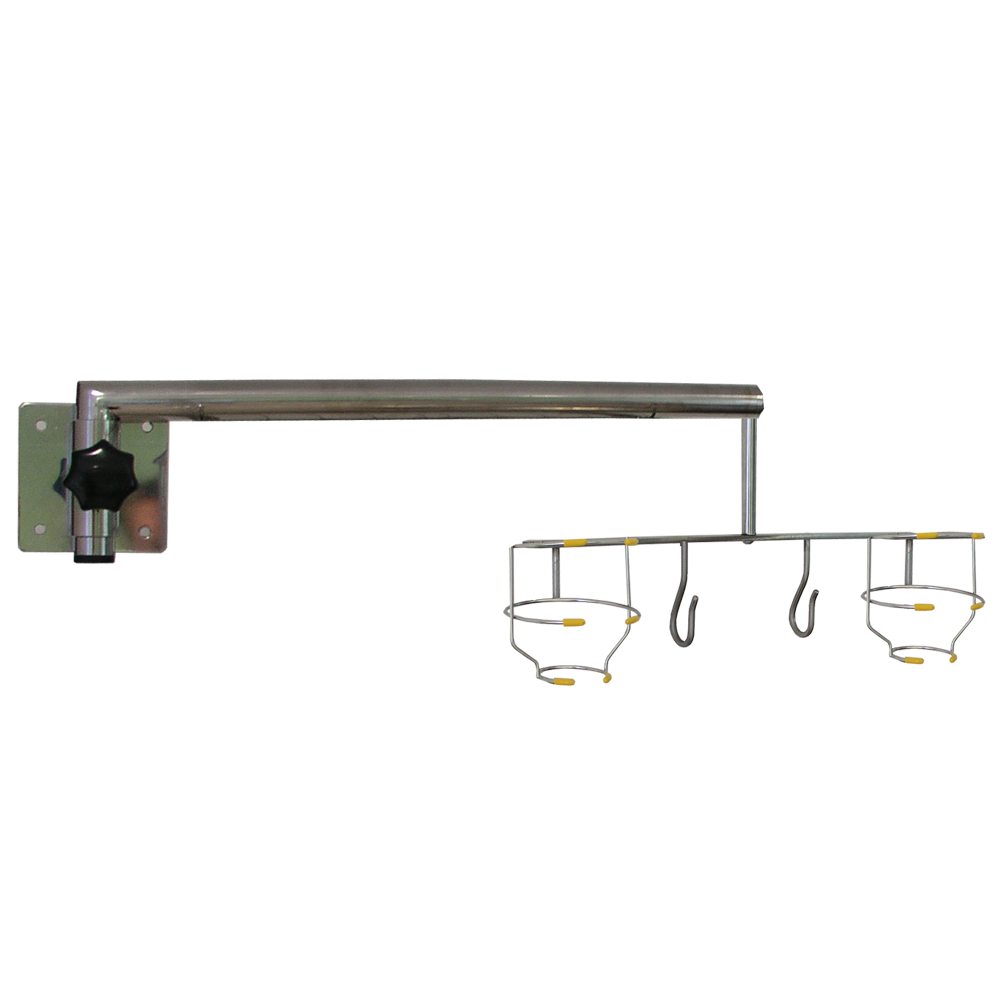

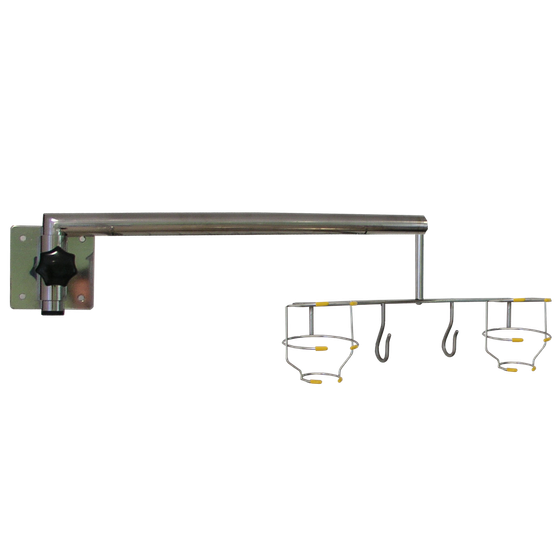

INDN-1 Fixed Wall-Mounted IV Holder / INDN-2 Telescopic Wall-Mounted IV Holder
The IV holder is made of stainless steel profiles and can be rotated and locked in the required position. It is equipped with a swivel head with two hooks and two baskets.
The baskets can be positioned either on the outside or in the centre of the holder head.
- Adjustable length of the INDN-2 telescopic holder: 800–1500 mm
- INDN-1 dimensions: l 900 × h 200 mm
- INDN-2 dimensions: l 800–1500 × h 200 mm

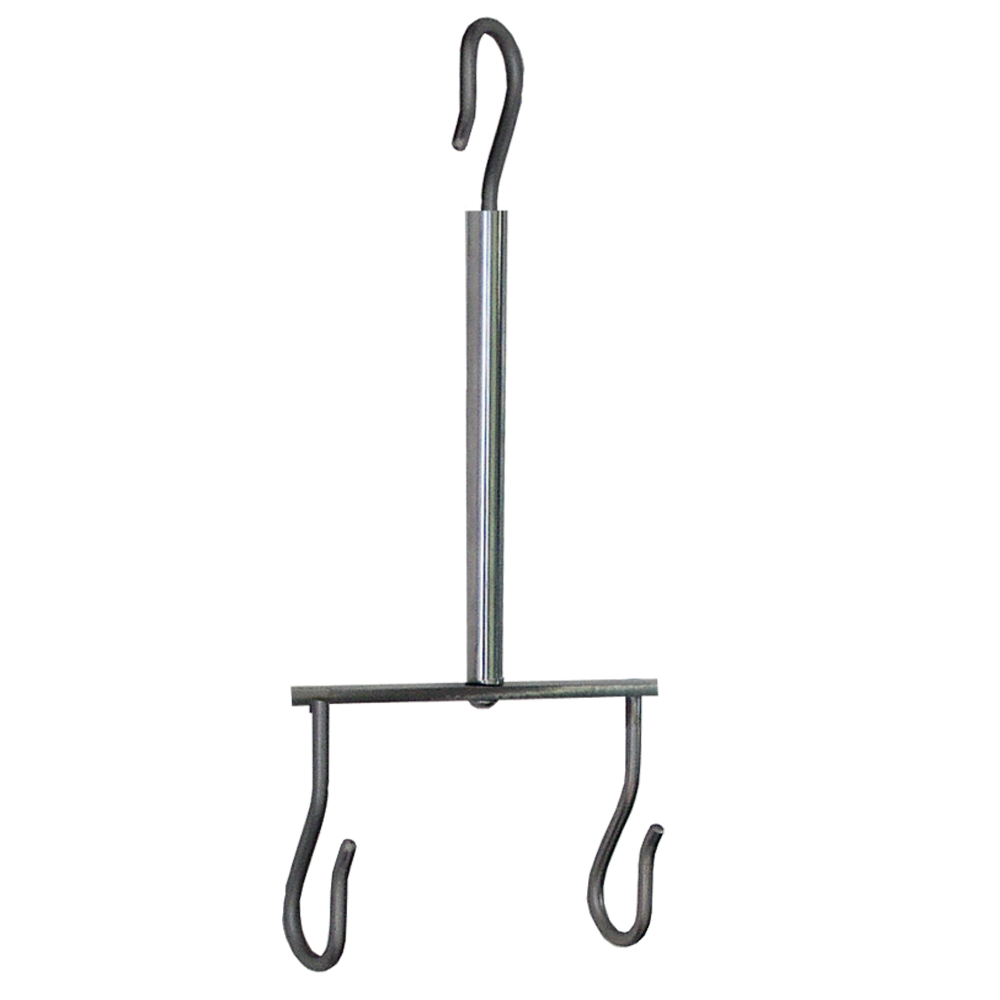

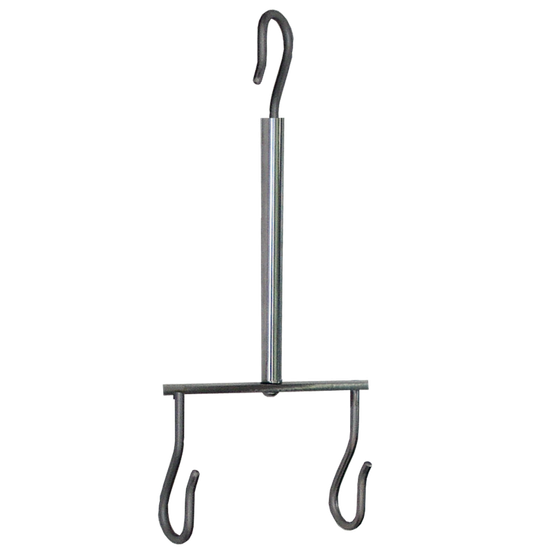

ISDN-1 Stainless Steel Ceiling-Mounted IV Holder
The IV holder is made of stainless steel profiles and is designed for suspension from the ceiling or from a ceiling-mounted rail system. The swivel head is fitted with two hooks, allowing two stainless steel IK baskets to be suspended. The length of the holder can be specified by the customer.
- Standard length: 900 mm

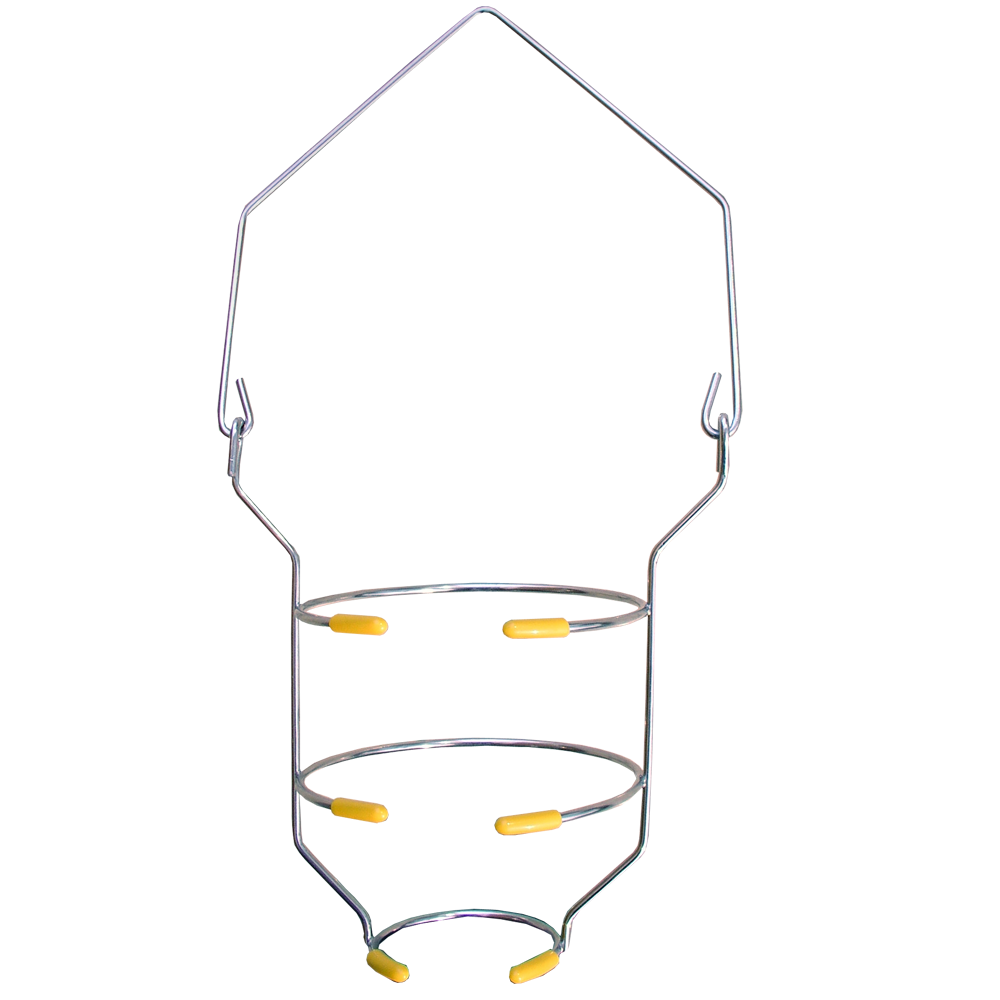

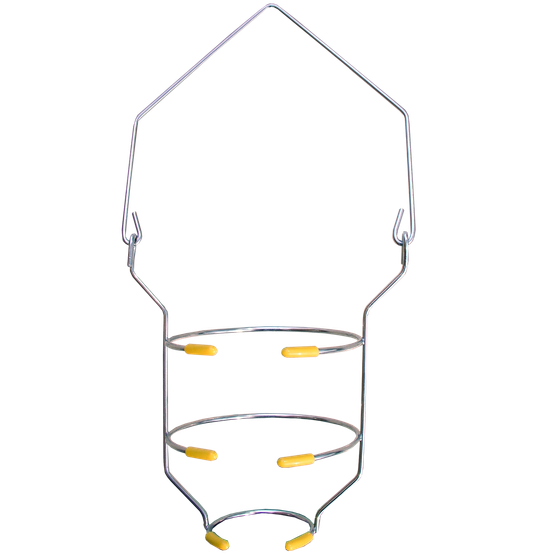

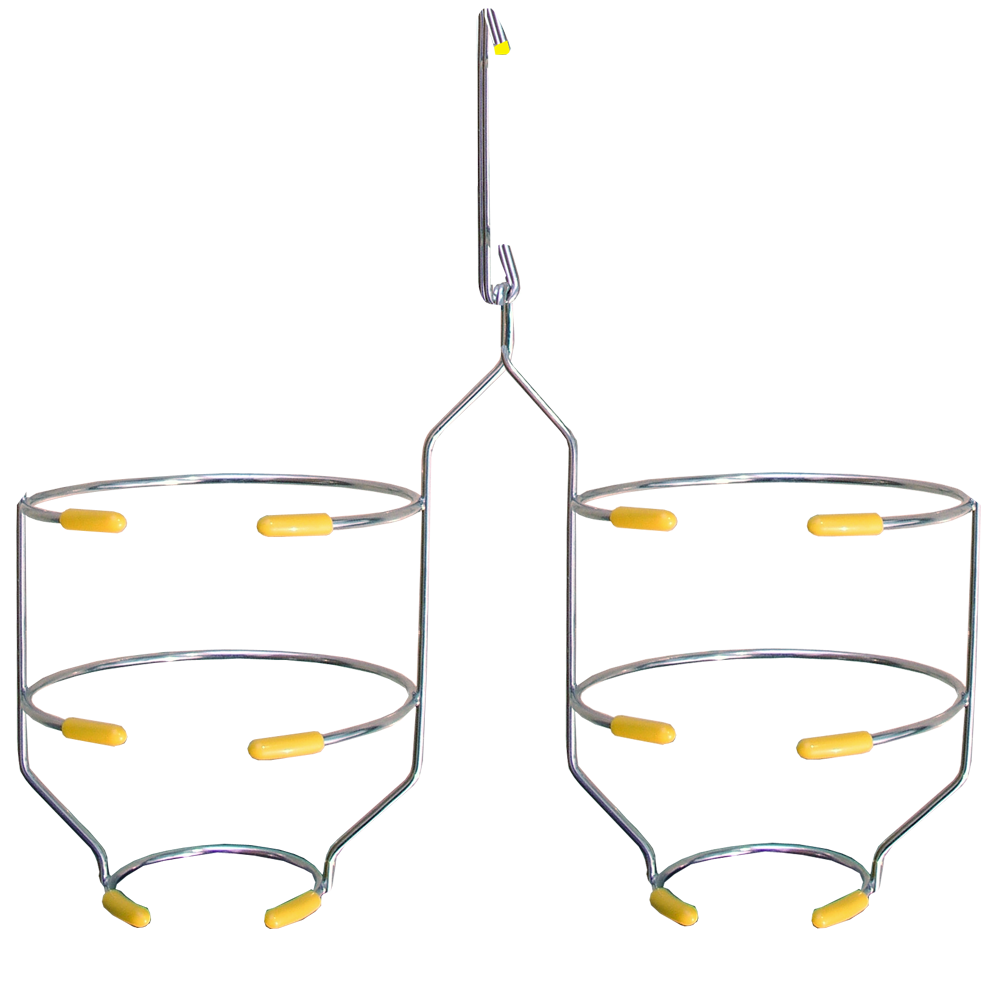

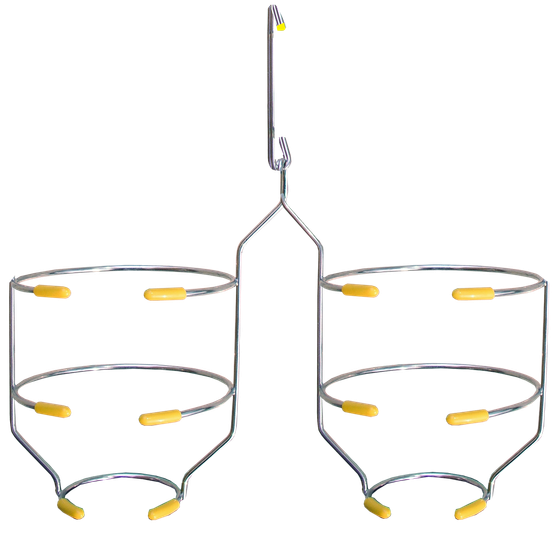

Stainless Steel Infusion Basket – IK 100–500 / IK2 100–500
The stainless steel IK infusion basket allows an infusion bottle with a capacity of 100–500 ml to be suspended from the hook of an IV stand.
The IK2 version allows two infusion bottles with a capacity of 100–500 ml to be suspended from the hook of an IV stand.

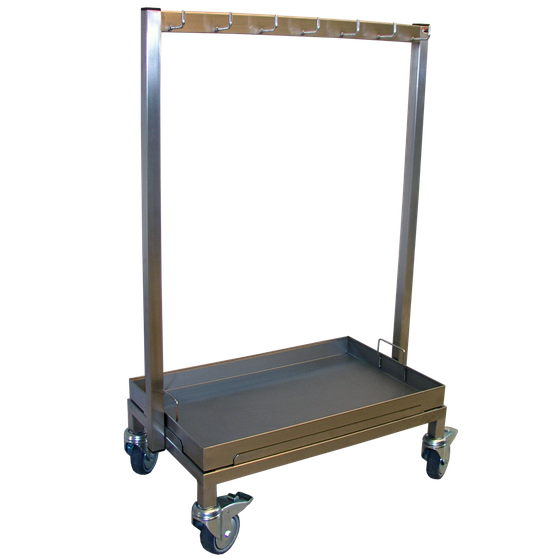

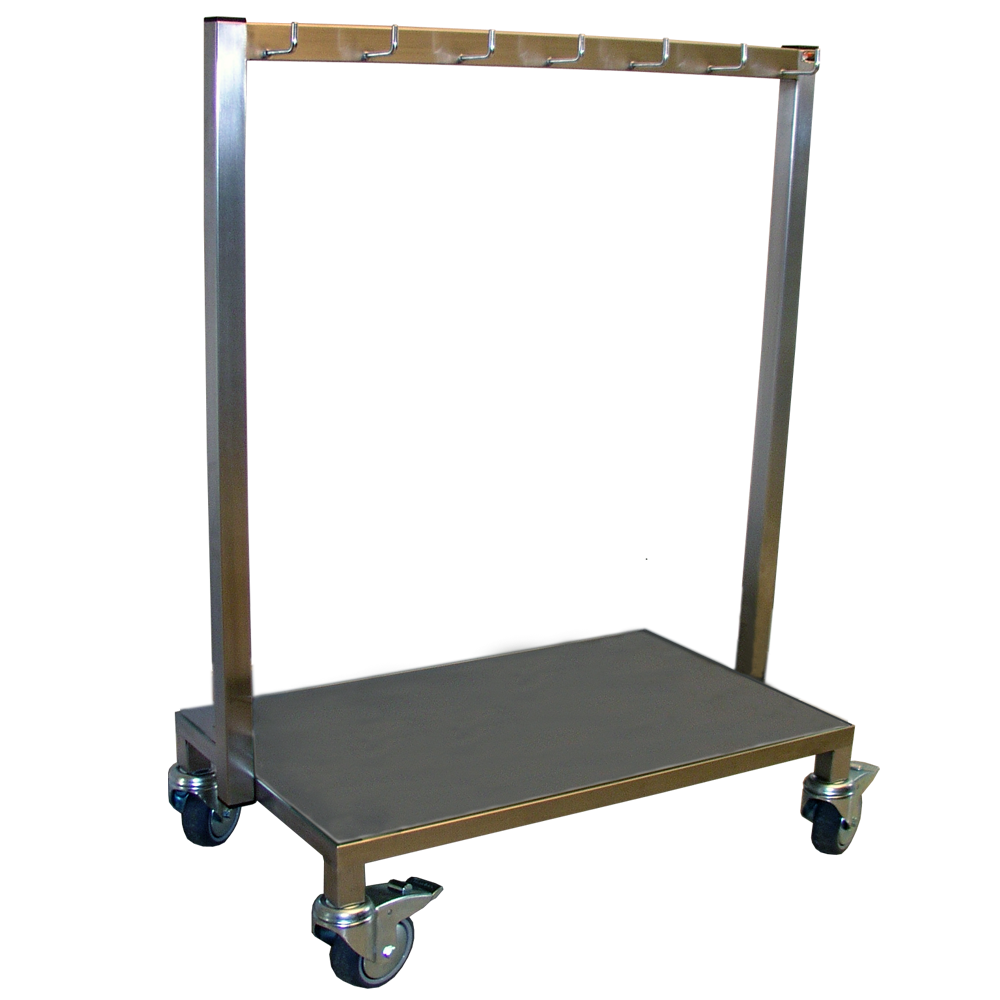

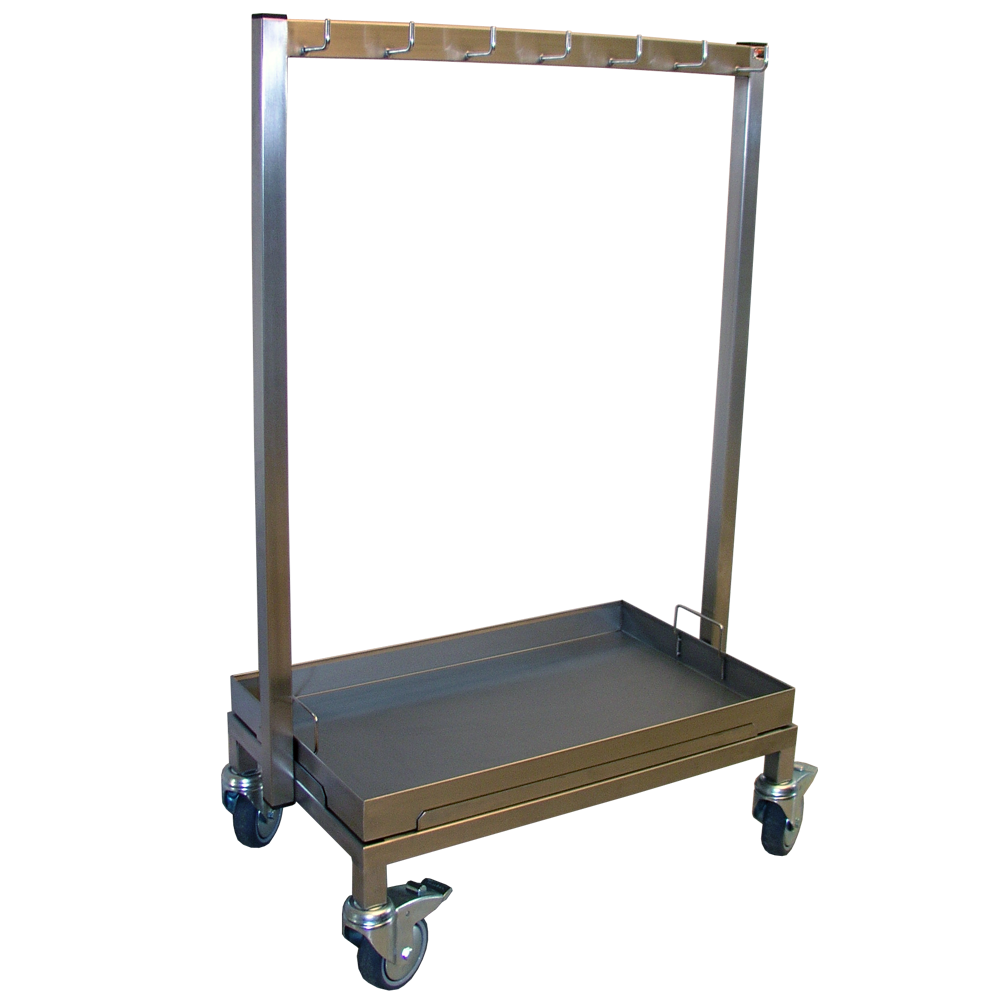

SOR-700/1 Stand for Surgical Drapes and Sheets
The stand is made of stainless steel profiles. The upper section is fitted with stainless steel hooks and the lower section includes a stainless steel tray. It is designed for storing surgical drapes and sheets in operating theatres.
The stand is fitted with two braked and two unbraked anti-static castors Ø 75 mm.
- Dimensions: l 700 × w 400 × h 1100 mm

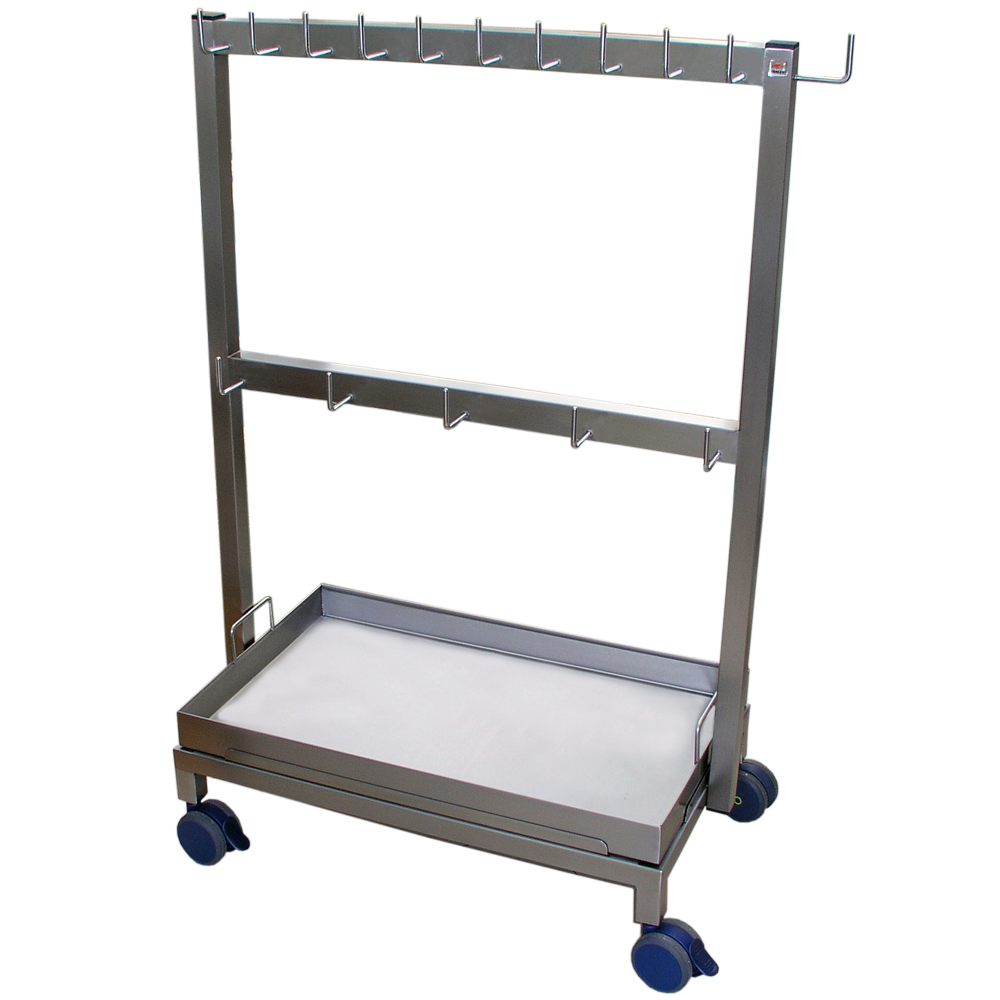

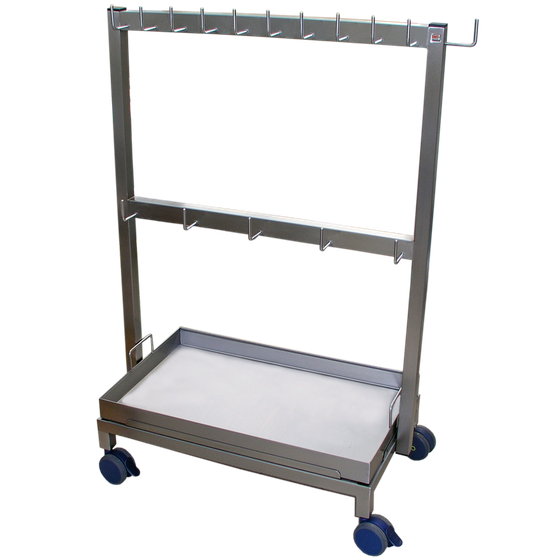

SOR-700/2 Stand for Surgical Drapes and Sheets
The stand is made of stainless steel profiles. The upper section is fitted with stainless steel hooks and a side hook, while the lower section includes a second rail with five hooks and a storage tray. It is designed for storing surgical drapes and sheets in operating theatres.
The stand is fitted with two braked and two unbraked anti-static castors Ø 75 mm.
- Dimensions: l 700 × w 400 × h 1100 mm

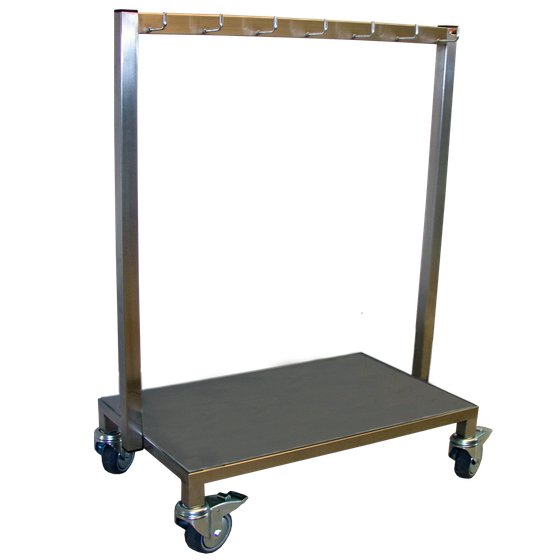

VRTG-700 Stand for X-Ray Aprons
The mobile stand is made of stainless steel profiles and the upper section is fitted with four stainless steel hooks. It is designed for hanging X-ray aprons.
The stand is fitted with two braked and two unbraked castors Ø 75 mm.
- Dimensions: l 700 × w 500 × h 1600 mm

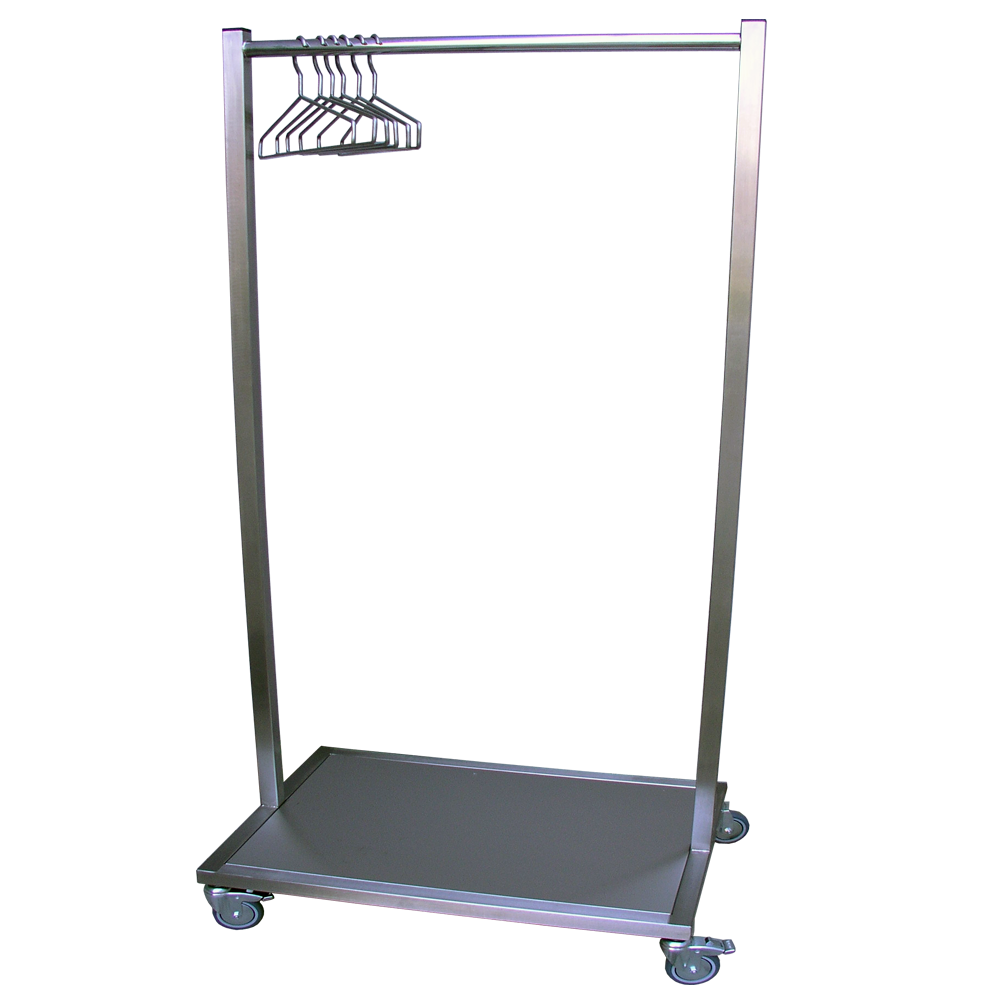

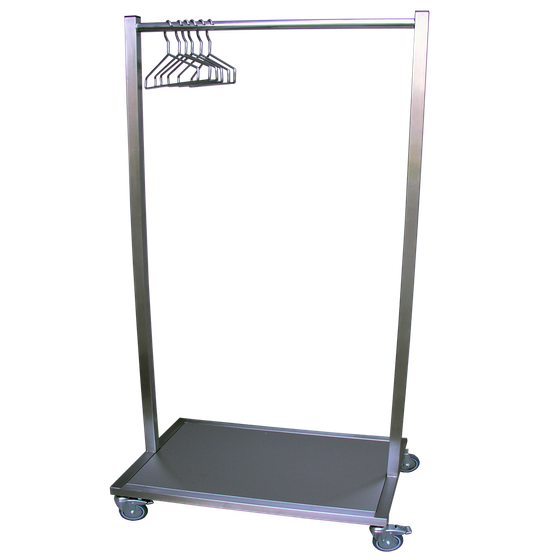

VRTG-700 R Stand for X-Ray Aprons
The mobile stand is made of stainless steel profiles and the upper section consists of a circular bar for hanging hangers. It is designed for hanging X-ray aprons.
The stand is fitted with two braked and two unbraked castors Ø 75 mm.
Stainless steel hangers are not included in the product price and are available for an additional charge.
- Dimensions: l 700 × w 500 × h 1600 mm

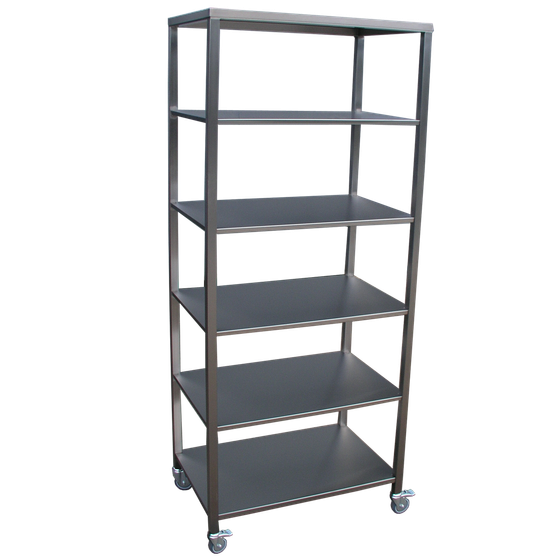

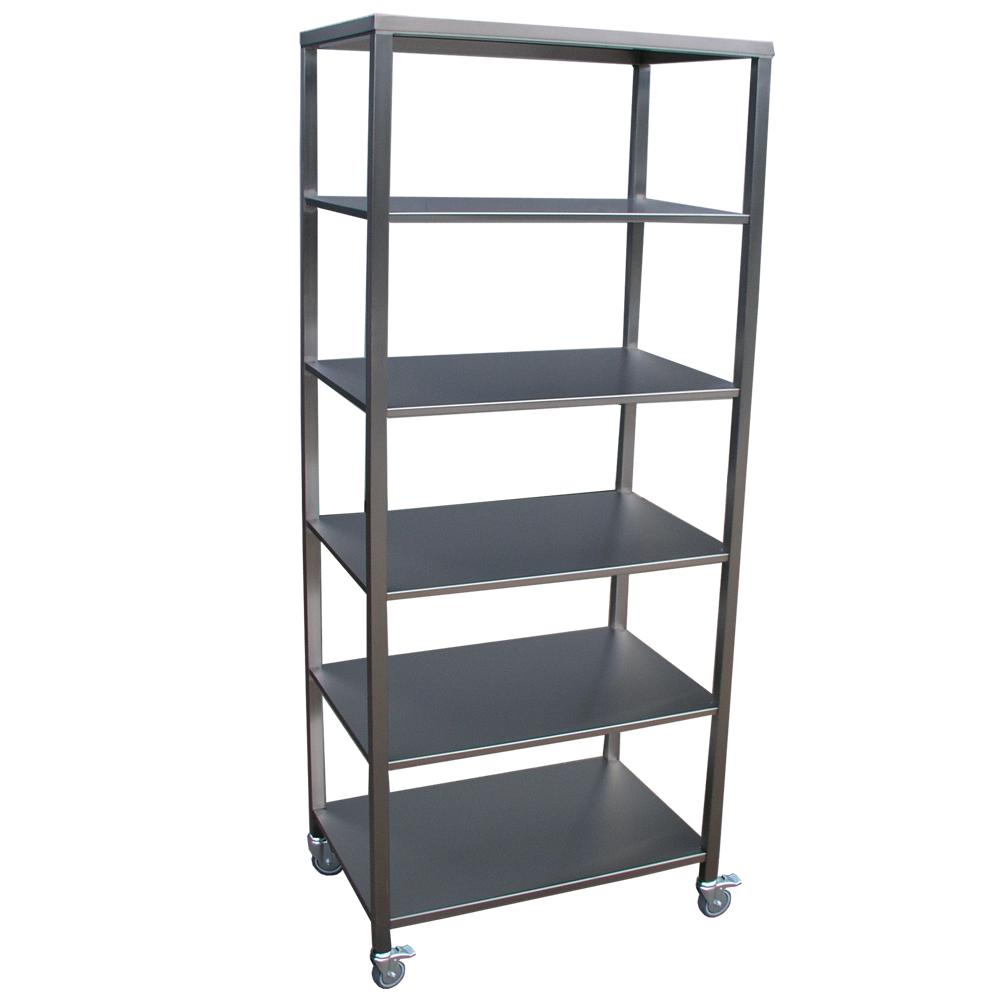

VPPM-750 / VPPM-1000 Bedpan Stand
Made of stainless steel profiles with six stainless steel shelves. Designed for storing 12 or 18 bedpans respectively.
The stand is fitted with two braked and two unbraked castors Ø 75 mm.
- VPPM-750 dimensions: l 750 × w 500 × h 1800 mm
- VPPM-1000 dimensions: l 1000 × w 500 × h 1800 mm

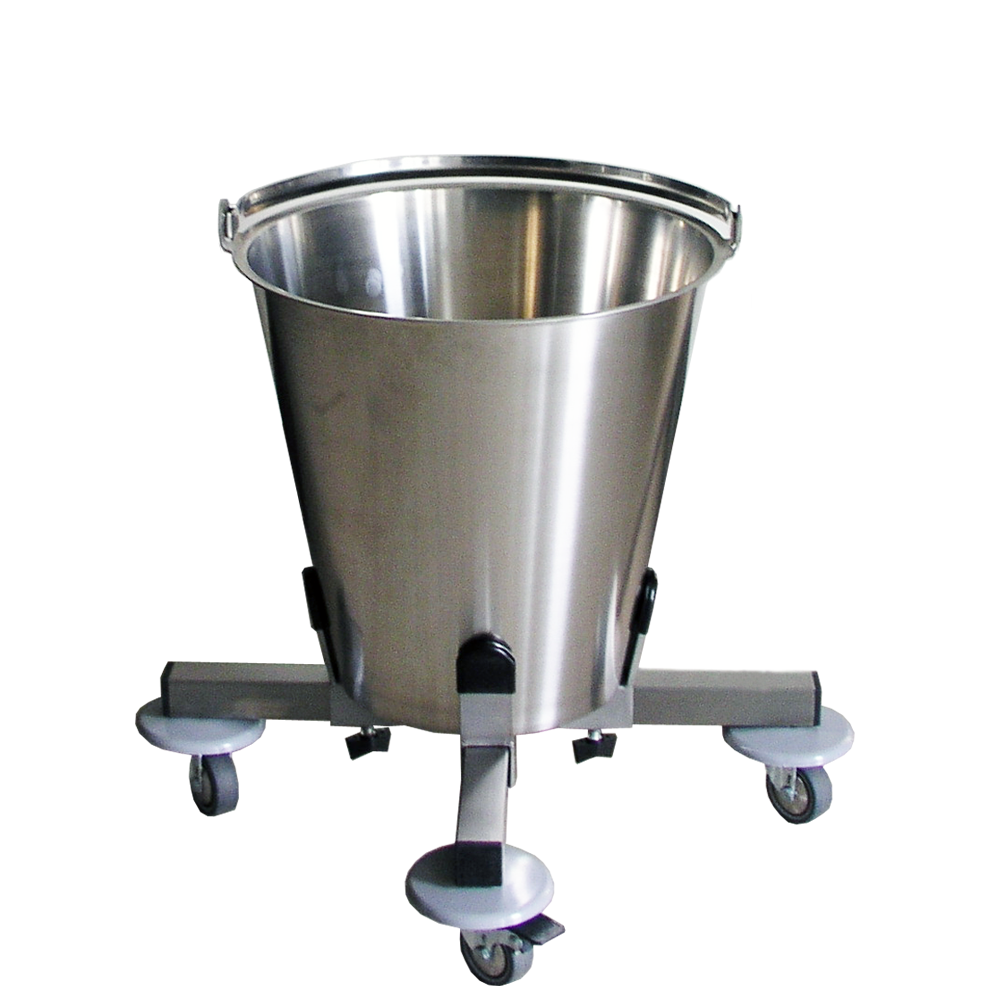

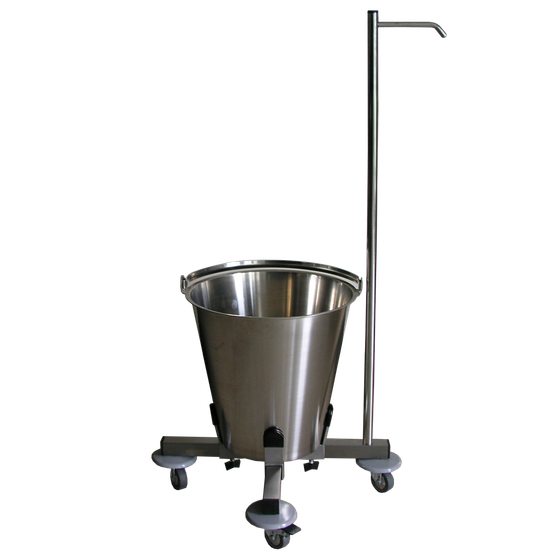

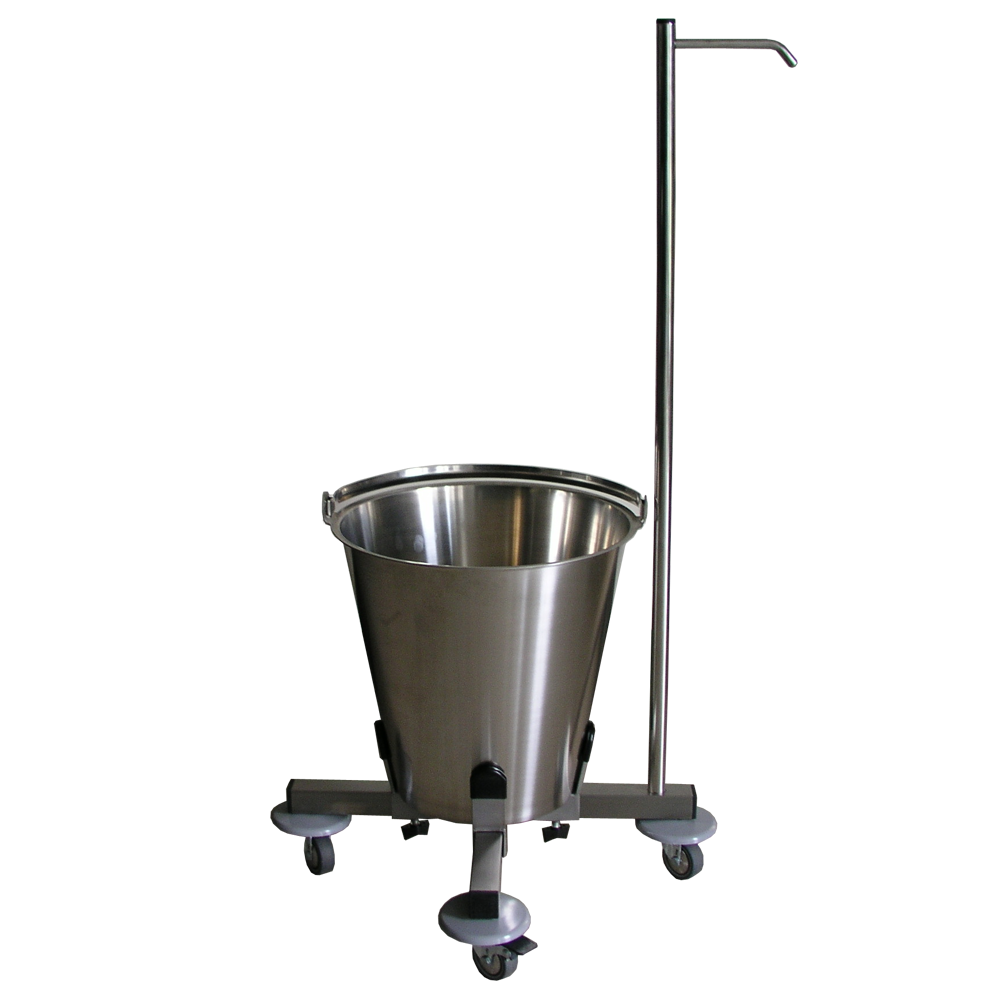

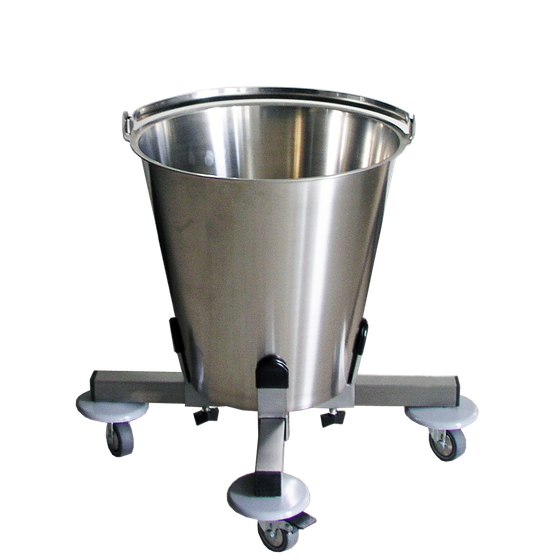

SOP-1 / SOP-1D Waste Container Stand
Made of stainless steel profiles, with adjustable base diameter for the container. Designed for the disposal of containers and medical material in operating theatres.
The stand is fitted with four swivel castors Ø 50 mm. The base includes a stainless steel 18/10 bucket with a capacity of 15 litres.
The SOP-1D version includes a handle for easier handling.
- Dimensions: l 450 × w 450 × h 700 mm
- Bucket capacity: 15 litres

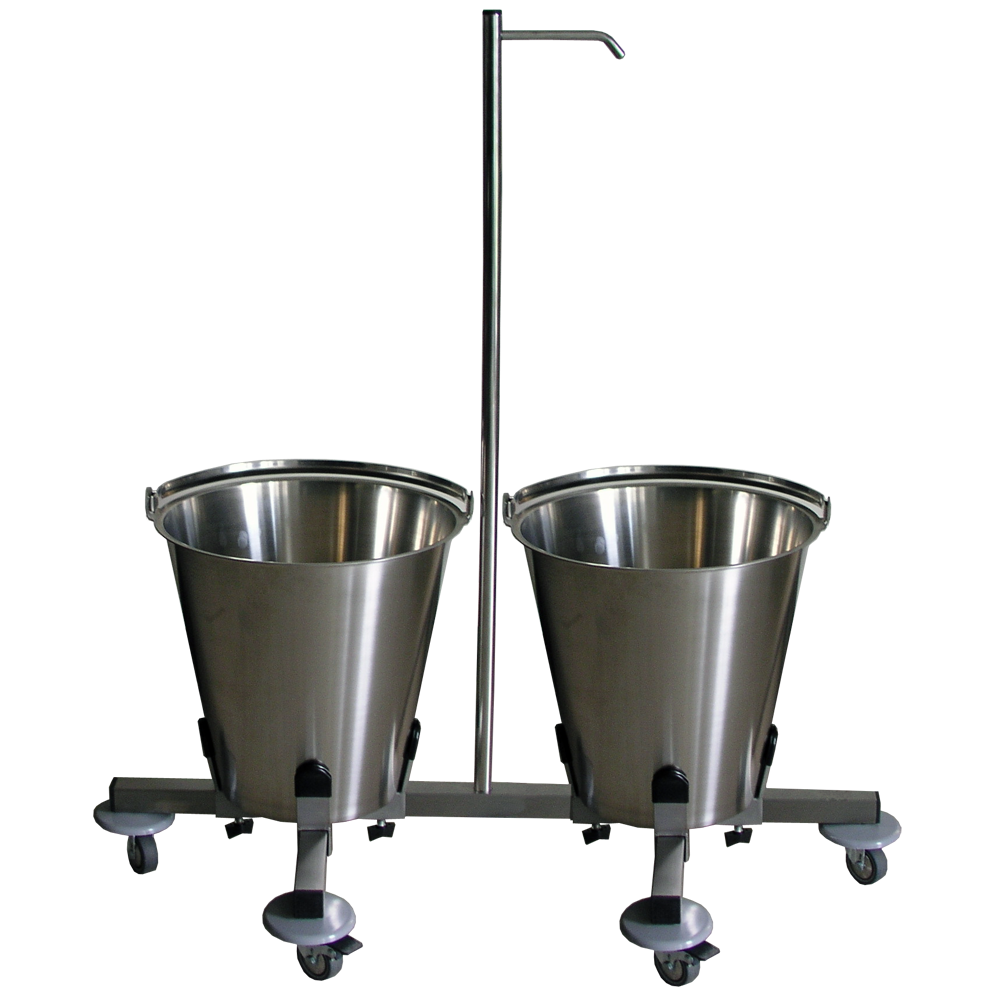

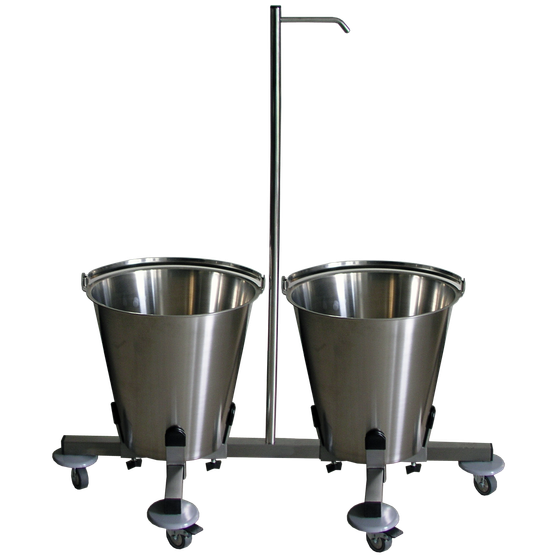

SOP-1D-2 Waste Container Stand with Handle
Made of stainless steel profiles, with adjustable base diameter for the containers and equipped with a handling handle. Designed for the disposal of containers and medical material in operating theatres.
The base is fitted with six swivel castors Ø 50 mm.
The stand includes two stainless steel 18/10 buckets, each with a capacity of 15 litres.
- Dimensions: l 850 × w 450 × h 700 mm
- Bucket capacity: 15 litres

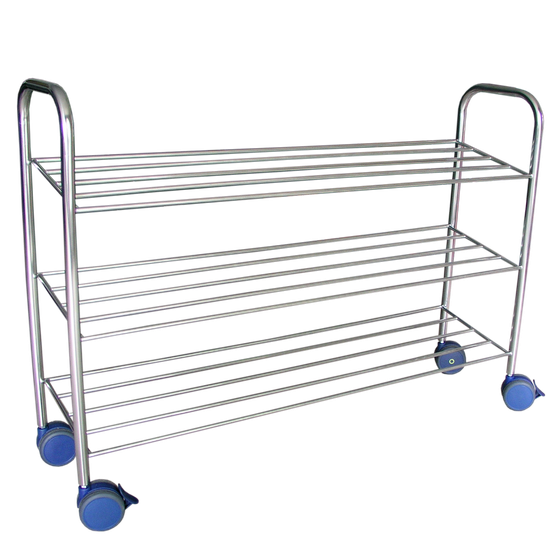

PSO Mobile Shoe Rack
Three-tier stand made of stainless steel profiles, designed for 12 pairs of shoes.
The stand is fitted with two braked and two unbraked anti-static plastic castors Ø 75 mm.
- Dimensions: l 1000 × w 300 × h 700 mm

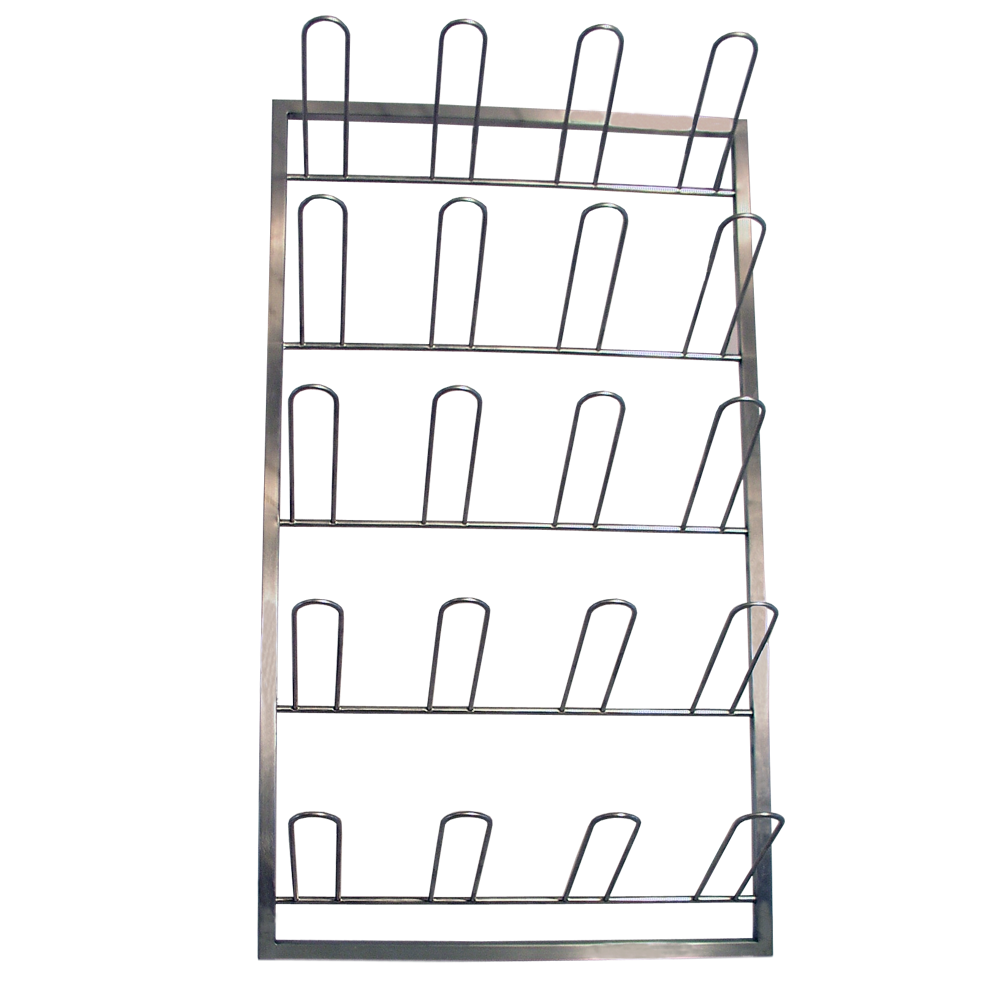

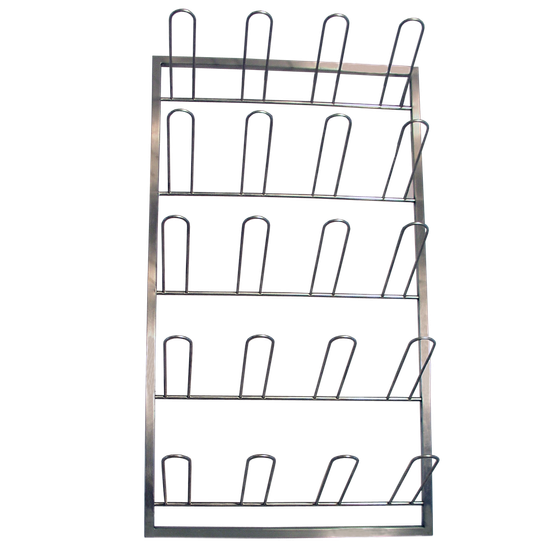

NDO Wall-Mounted Shoe Holder
Stainless steel wire holder, designed as standard for hanging 10 pairs of shoes in surgical preparation rooms.
- Dimensions: l 1200 × w 600 mm
