Tables w/o Storage Gallery

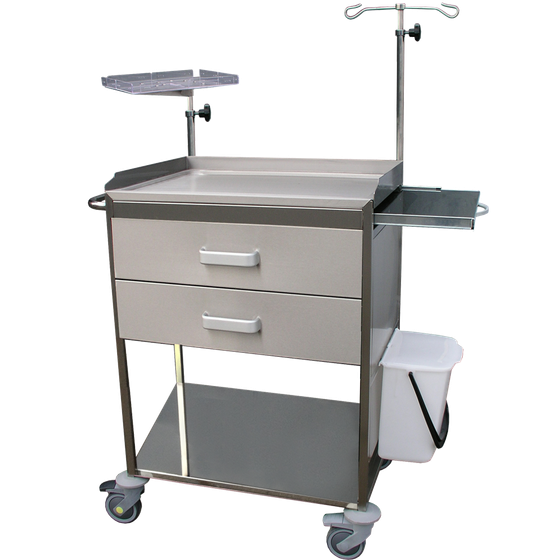

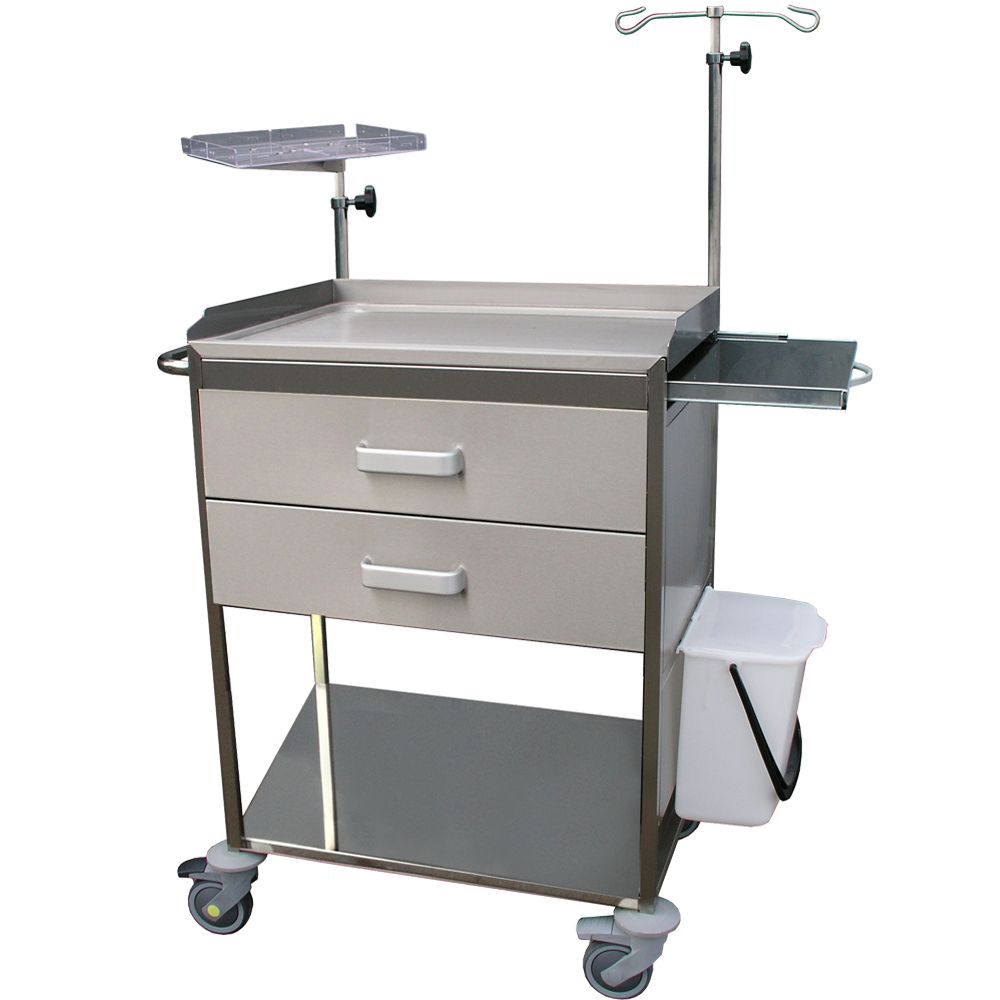

UNI-2N-R Universal Instrument Table with Shelf

The table is made of stainless steel profiles with an upper pressed stainless steel tray with a guard rail and a lower storage tray. It is equipped with two drawers, 100 and 200 mm deep, with full-extension runners, a side handle, an integrated pull-out writing shelf on the right side, an adjustable IV stand with two hooks with a load capacity of 5 kg, and an adjustable defibrillator holder. A hanging semi-circular 8-litre plastic bin is fitted on the lower right side. The table is fitted with two braked and two unbraked castors Ø 125 mm.
Optional accessories for an additional charge: central lock, cannula holder, glove holder and holder with hazardous waste container.

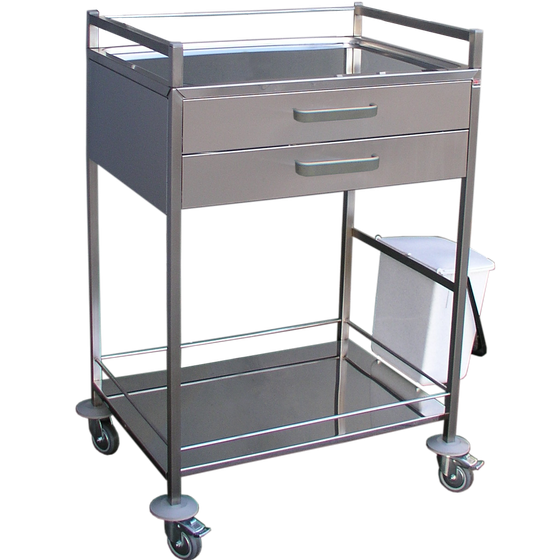

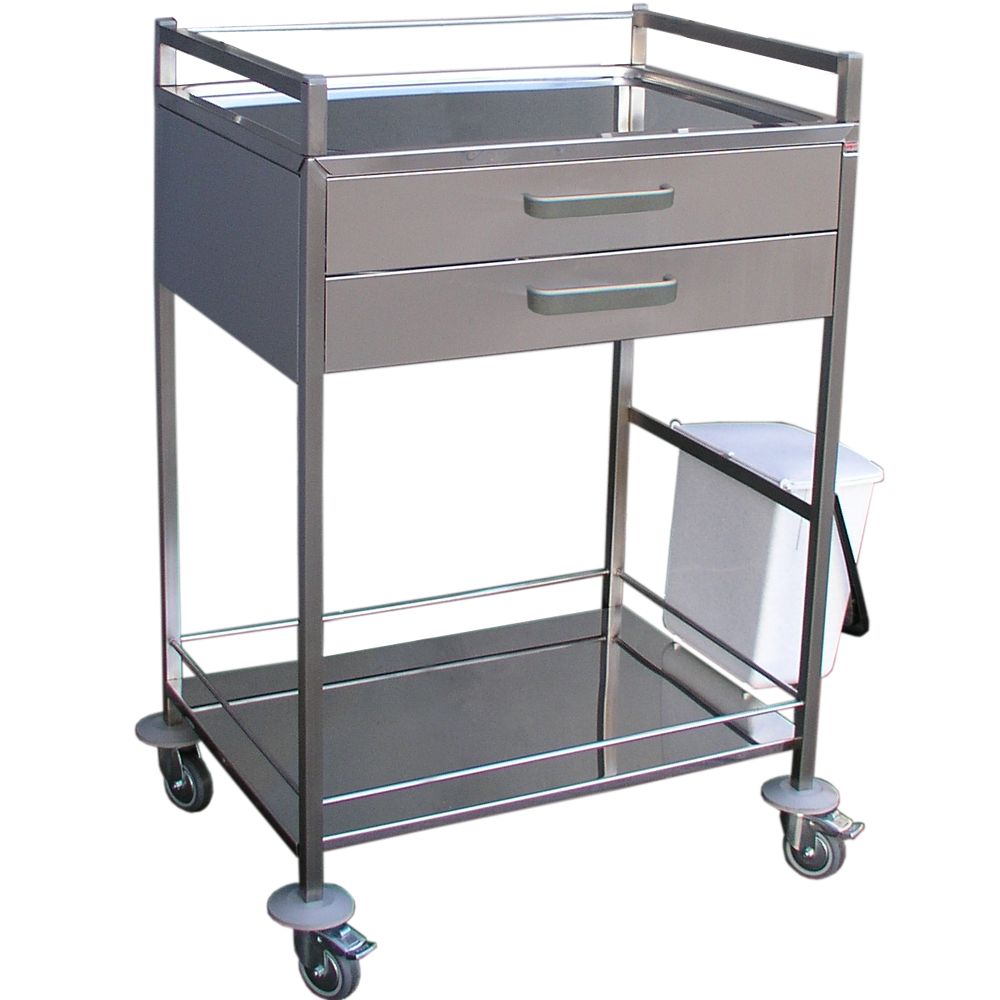

UNI-1N / UNI-2N Anaesthesia Table

The table is made in a UNI version without storage gallery, with one or two 100 mm deep drawers with full-extension runners / UNI-2N /, a lower storage tray with a guard rail and a hanging 8-litre plastic bin on the side. As standard, the base is fitted with castors Ø 75 mm, 2 braked and 2 unbraked.
Upon request, the table can be equipped with anti-static castors Ø 75 or Ø 125 mm for an additional charge.
Drawer fronts can be supplied in RAL colours according to the colour chart. For an additional charge: transparent plastic drawer insert PVZ-2+2 or PVZ-2+3.

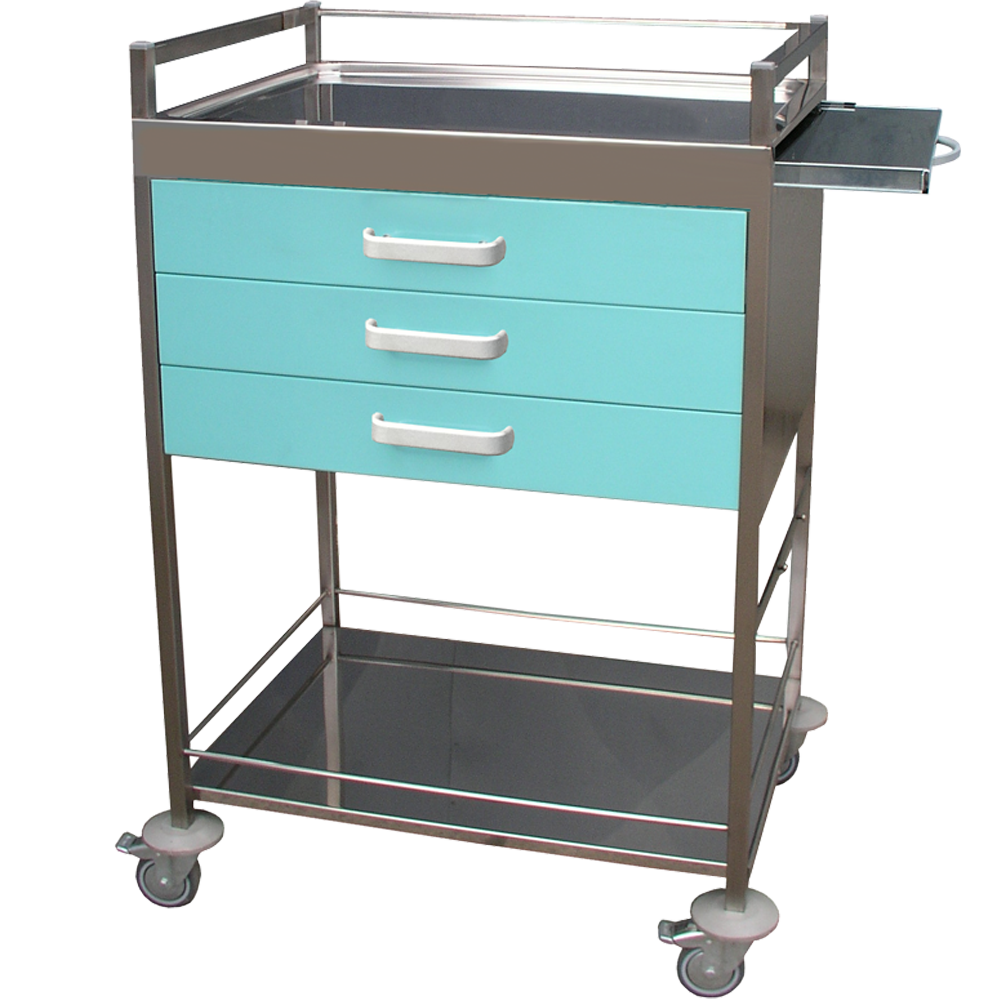

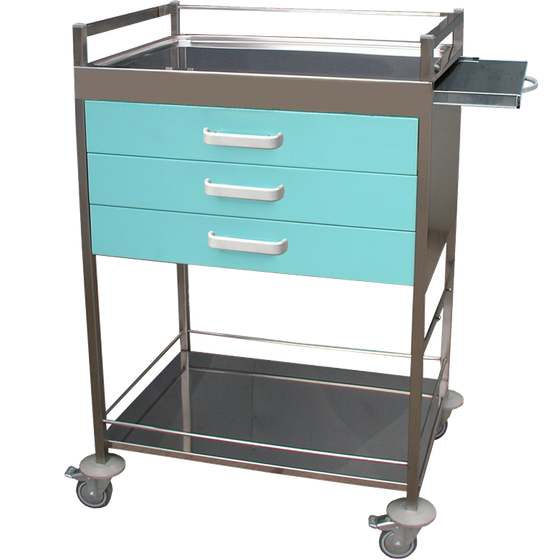

UNI-3NB Anaesthesia Table

The table with a guard rail is made without storage gallery and is equipped with three 100 mm deep drawers with full-extension runners, an upper pressed storage tray, an integrated pull-out side shelf on the right side and a lower storage tray with a guard rail. The table is fitted with castors Ø 75 mm, 2 braked and 2 unbraked. Upon request, the table can be equipped with anti-static castors Ø 75 or Ø 125 mm for an additional charge. Drawer fronts can be supplied in RAL colours according to the colour chart.
For an additional charge: transparent plastic drawer insert PVZ-2+2 or PVZ-2+3.

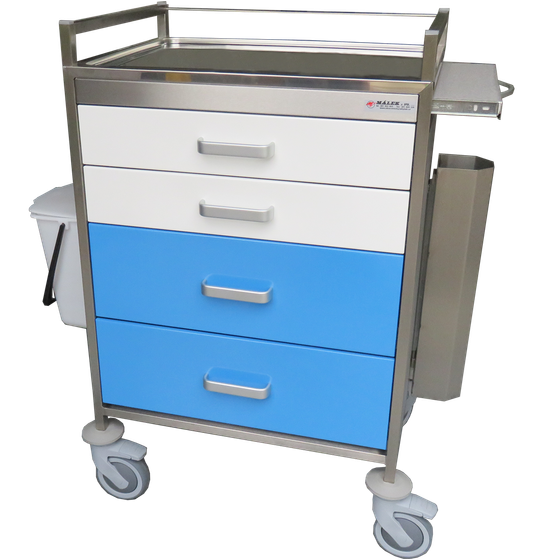

UNI-4NP Anaesthesia Table

The table is made in a UNI version without storage gallery, with four drawers with full-extension runners, an integrated pull-out side shelf on the right side and a side bin. The upper pressed tray with rounded corners is fitted with a guard rail and handles. Two drawers are 100 mm deep and two drawers are 200 mm deep. The table is fitted with two braked and two unbraked castors Ø 125 mm and four rubber bumpers. Upon request, the table can be equipped with anti-static castors up to Ø 150 mm for an additional charge. Drawer fronts can be supplied in RAL colours according to the colour chart.
For an additional charge: transparent plastic drawer insert PVZ-2+2 or PVZ-2+3.

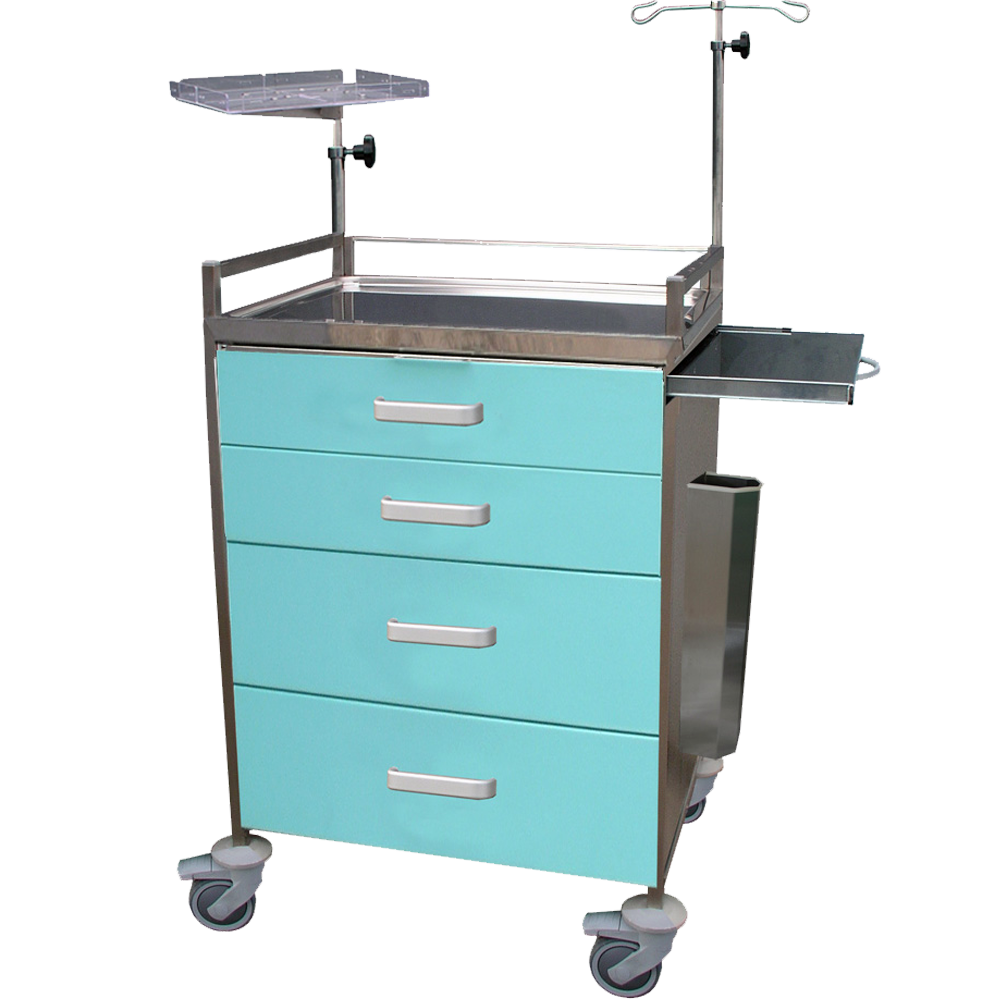

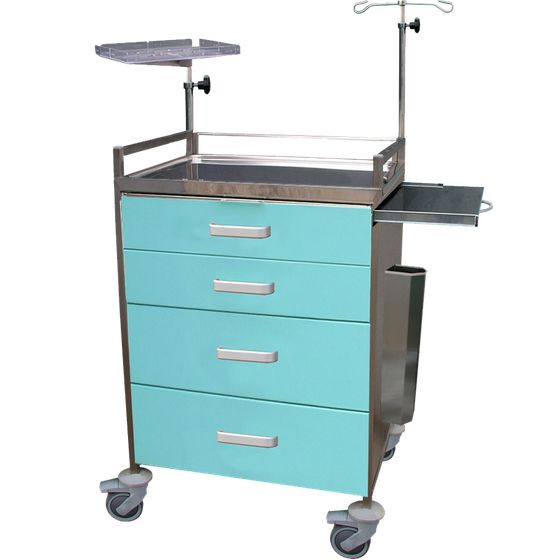

UNI-4NR-BP Resuscitation Table

The table is made in a UNI version with a defibrillator holder and IV stand, four drawers with full-extension runners, an integrated pull-out side shelf, cannula holder and side 8-litre bin. The upper pressed tray with rounded corners is fitted with a guard rail and handles. Two drawers are 100 mm deep and two drawers are 200 mm deep. The table is fitted with two braked and two unbraked castors Ø 125 mm and four rubber bumpers. Upon request, the table can be equipped with anti-static castors up to Ø 150 mm for an additional charge.
Drawer fronts can be supplied in RAL colours according to the colour chart. For an additional charge: transparent plastic drawer insert PVZ-2+2 or PVZ-2+3.

UNI-900-2LZS Painted Anaesthesia Table

The table is made of painted profiles with an upper recessed stainless steel tray and a guard rail. It is equipped with two 150 mm deep drawers with full-extension runners, a lower cabinet with a rotary locking system and a handling handle on the left side. The base is fitted with four castors Ø 125 mm, 2 braked and 2 unbraked. Drawer fronts can be supplied in RAL colours. For an additional charge, the table can be equipped with four rubber bumpers.

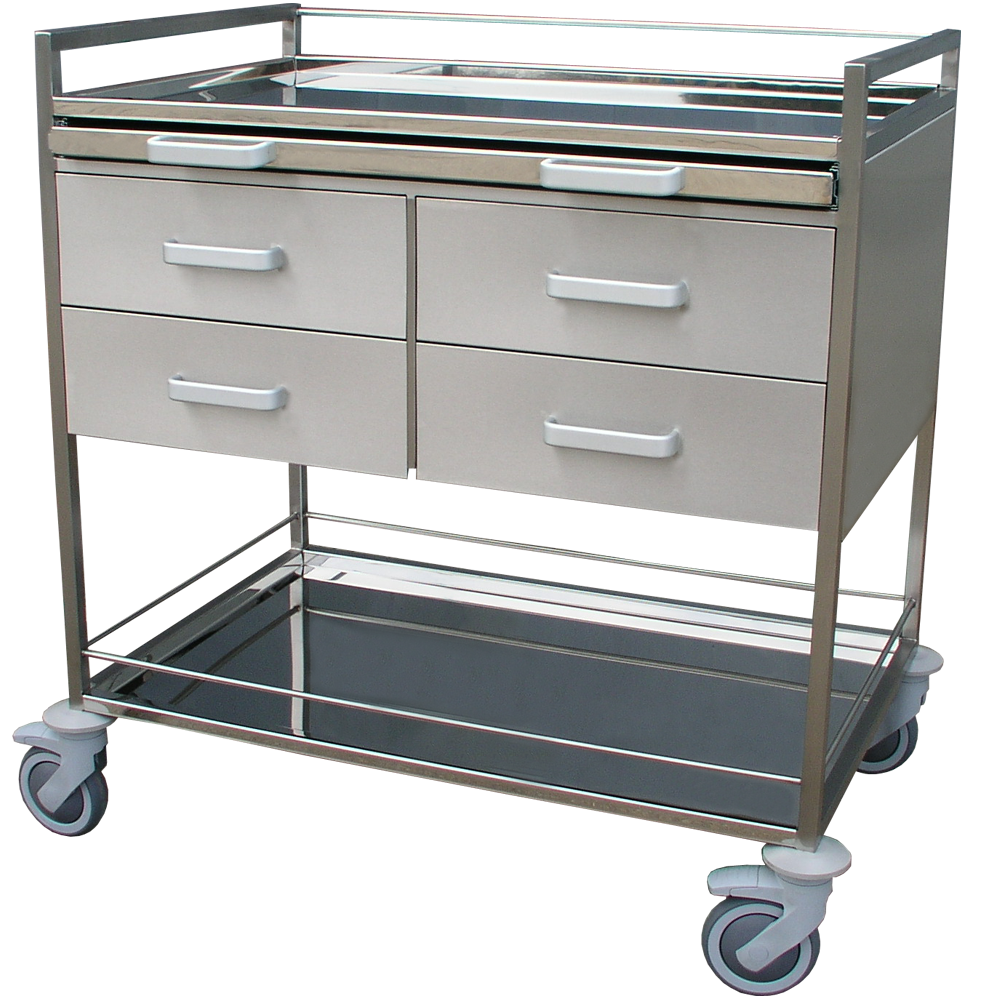

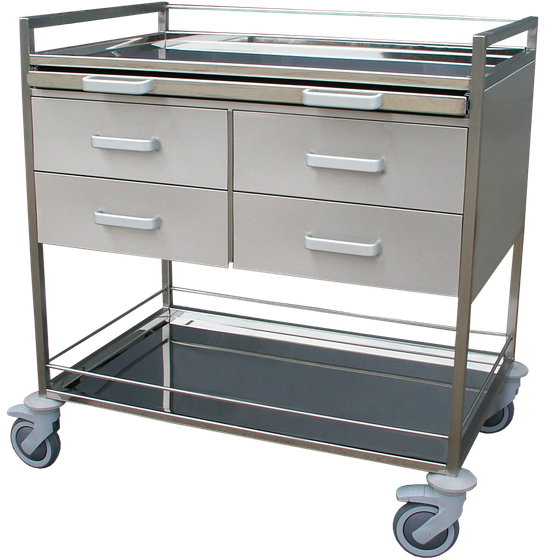

UNI-900-4N Anaesthesia Table

The table is made of stainless steel profiles with an upper recessed stainless steel tray and upper and lower guard rails. It is equipped with four 150 mm deep drawers with full-extension runners. The table includes a catheter holder and a hanging basket for medical material, 300 × 200 × d 300 mm. The base is fitted with four castors Ø 125 mm, 2 braked and 2 unbraked, and four rubber bumpers.
For an additional charge: central lock.

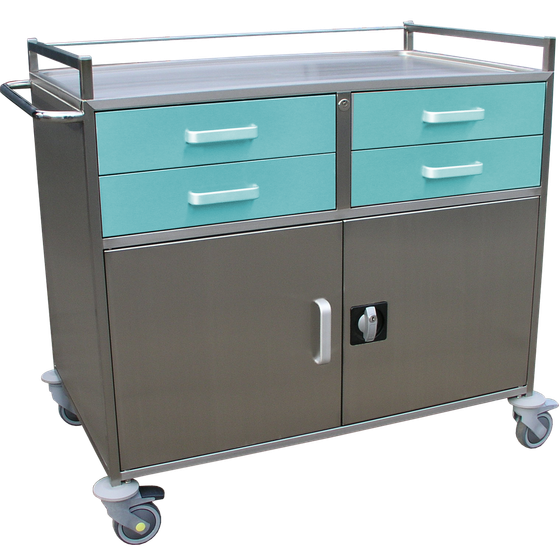

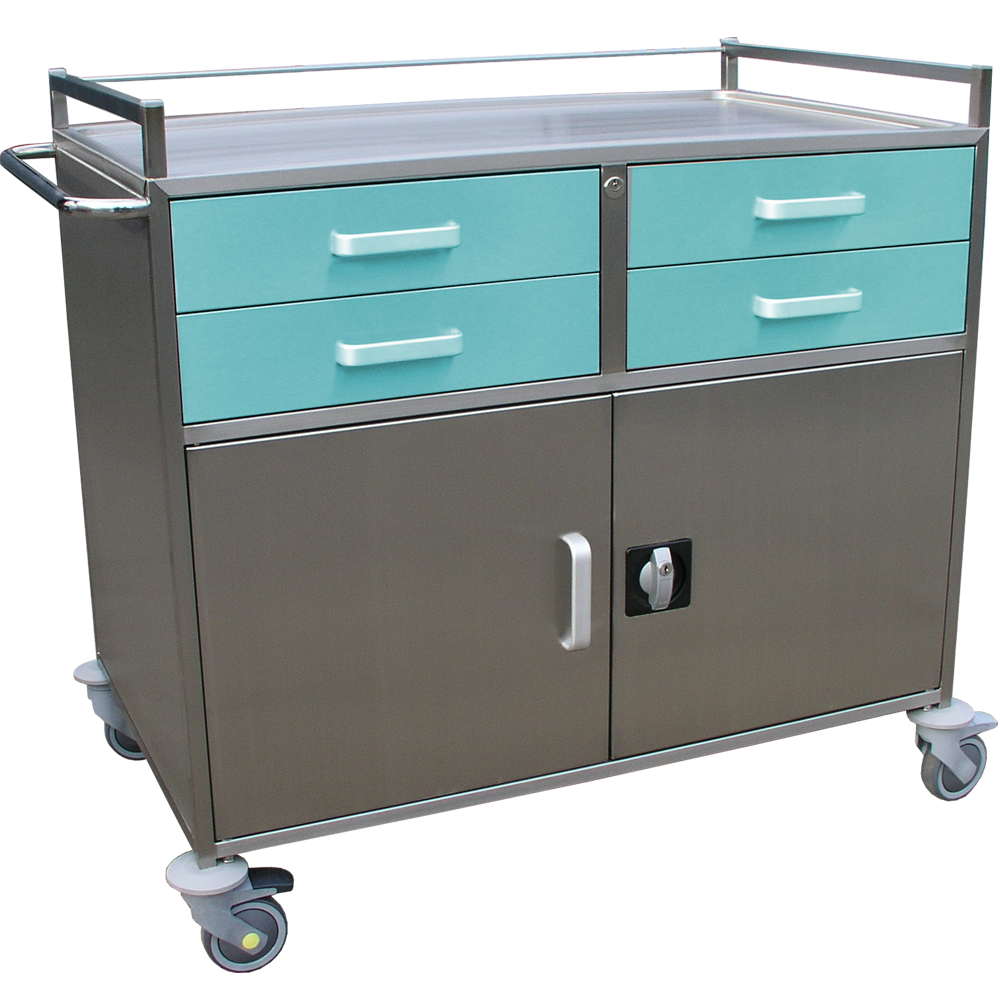

UNI-900-4NZS Anaesthesia Table

The table is made of stainless steel profiles with an upper recessed stainless steel tray and a guard rail. It is equipped with four 150 mm deep drawers with full-extension runners and central locking, a lower cabinet with a rotary locking system and a handling handle on the left side. The base is fitted with four castors Ø 125 mm, 2 braked and 2 unbraked, and four rubber bumpers.
For an additional charge, a catheter holder or hanging basket can be supplied, as with the UNI-900-4N model. Drawer fronts can be supplied in RAL colours according to the colour chart for an additional charge.

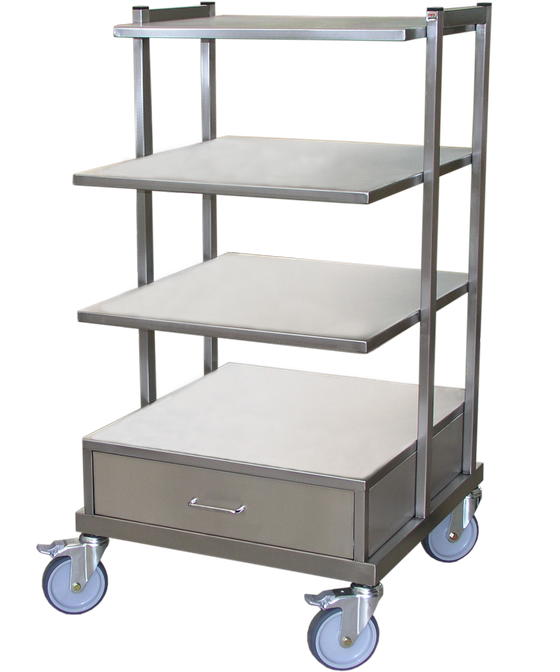

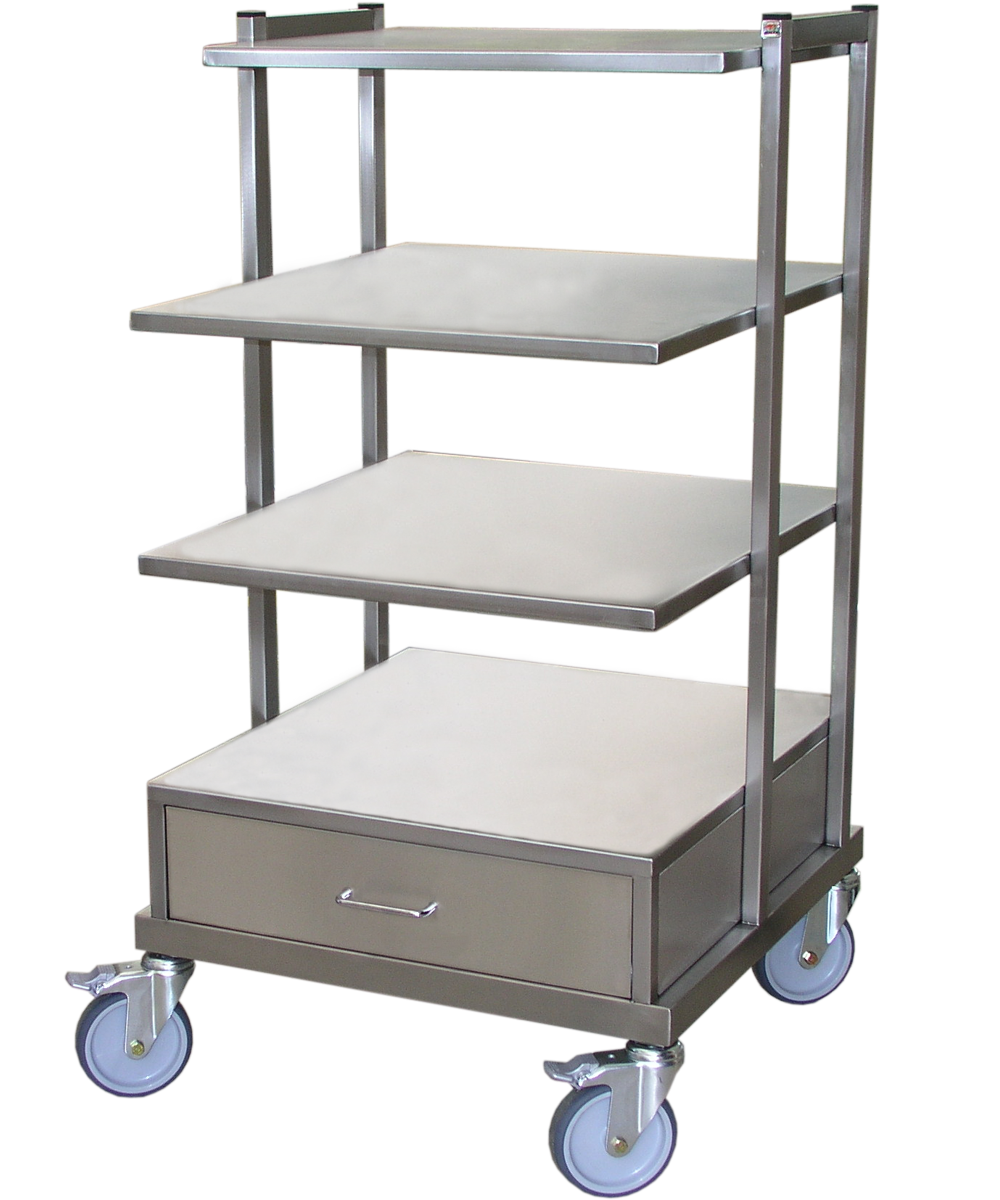

SUPN-1120 Universal Stainless Steel Equipment Table

All-stainless-steel version with the same intended use as the SUPL-1120 model. The table is equipped with 4 shelves, 3 × 600 × 540 mm and 1 × 450 × 540 mm, and a 100 mm deep accessory drawer with full-extension runners in the lower section. A surge protector with a 5–6 socket system and equipotential terminal block is mounted on the rear side of the drawer cabinet. The table is fitted with two braked and two unbraked ball-bearing castors Ø 125 mm.

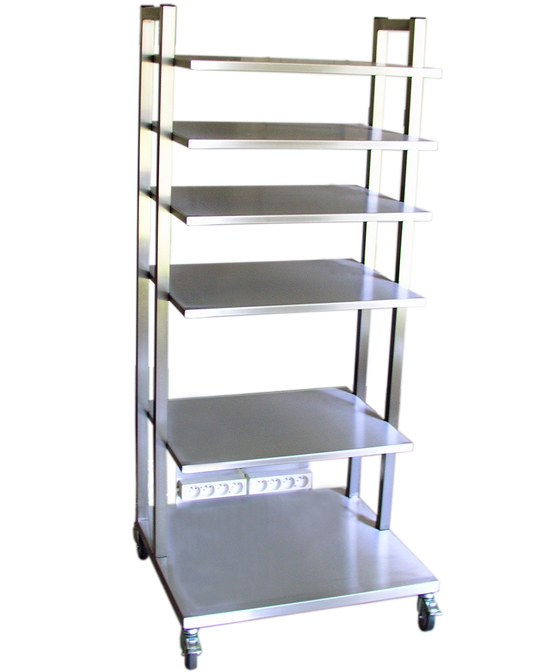

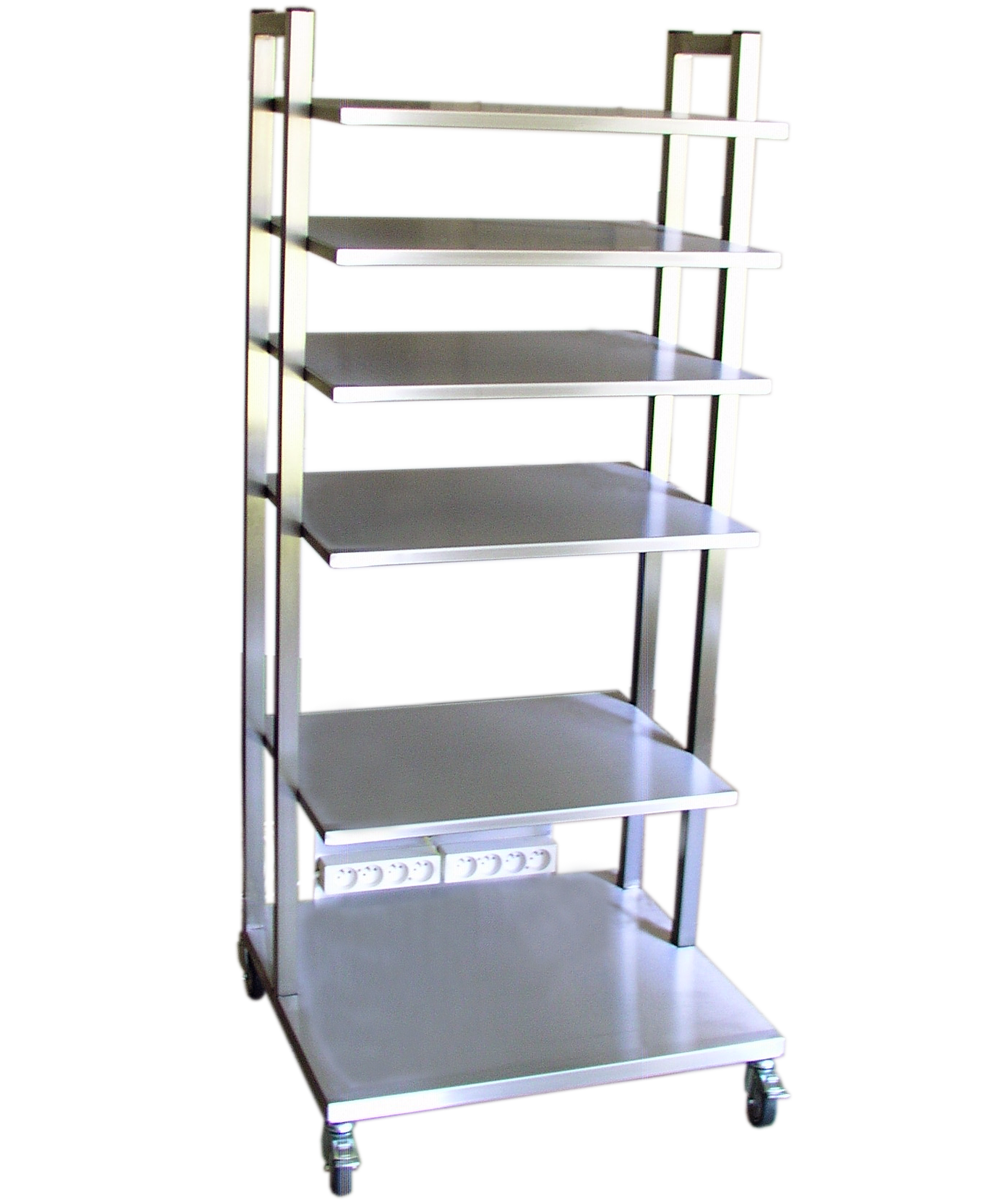

SUPN-1500 Universal Stainless Steel Equipment Table

All-stainless-steel table designed for storing medical devices, with six shelves. In the lower section, the table is equipped with an integrated electrical socket system for connecting eight medical devices to the mains supply. The table is fitted with two braked and two unbraked ball-bearing castors Ø 125 mm.

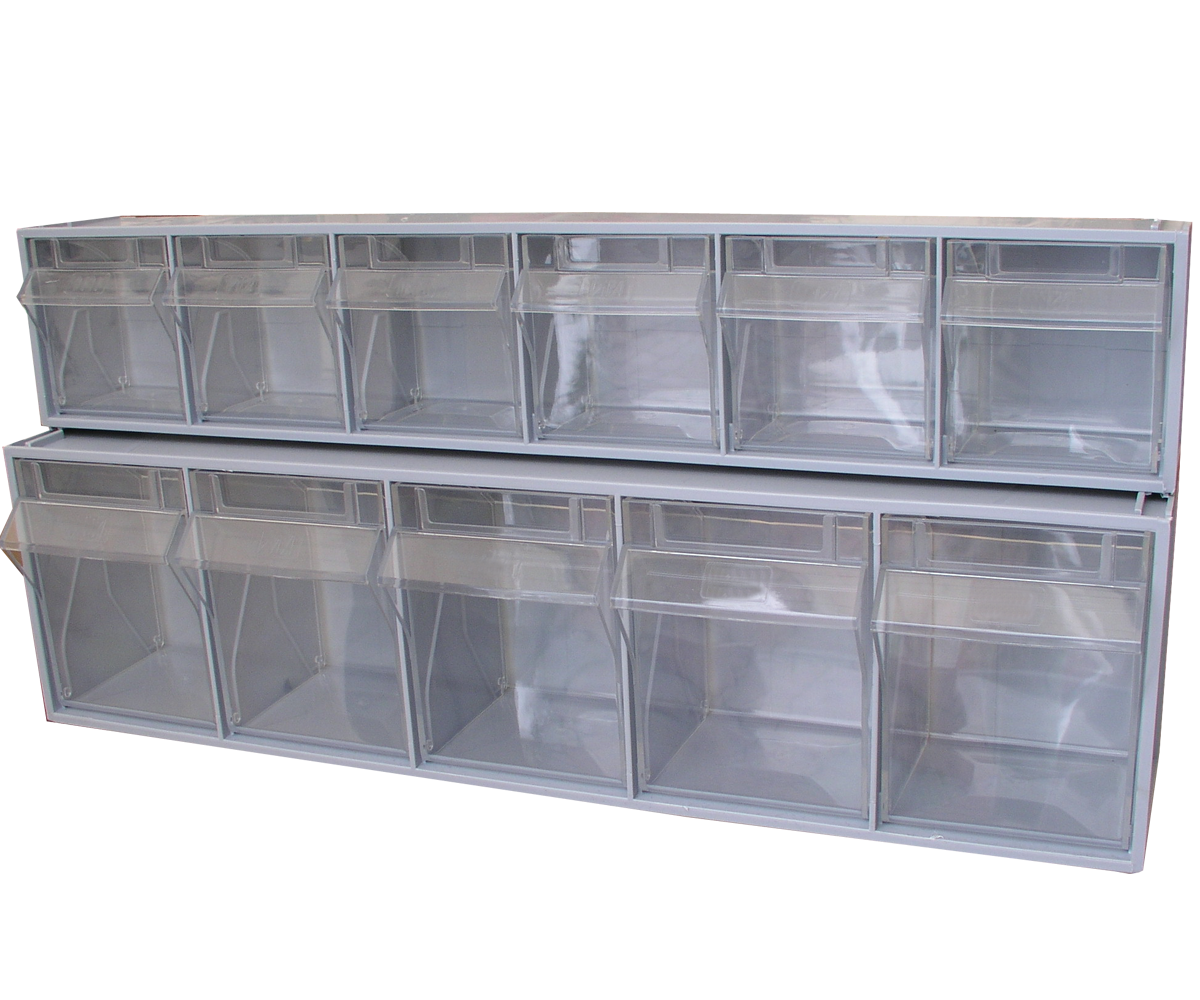

ZM2 / ZM3 Injection and Dressing Material Dispensers

The dispensers are designed for storing various medical materials, such as injections, dressings, etc. The tilt-out bins are made of clear acrylic glass and can be removed from the light grey plastic body. As standard, they are supplied with two rows of five and six bins, or with five and three bins. The dispenser bodies are inserted into a stainless steel holder and fixed to the wall with two screws.

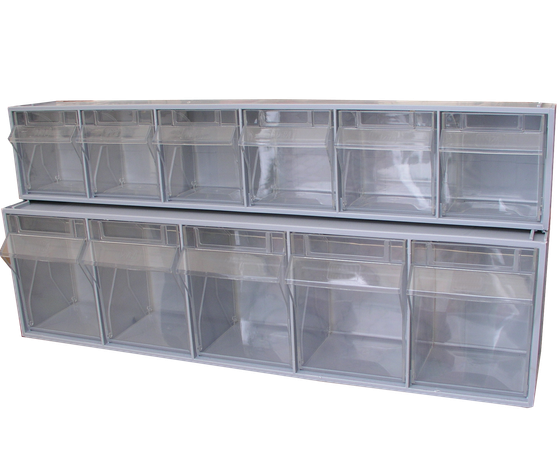

The ZM2 version has two rows.

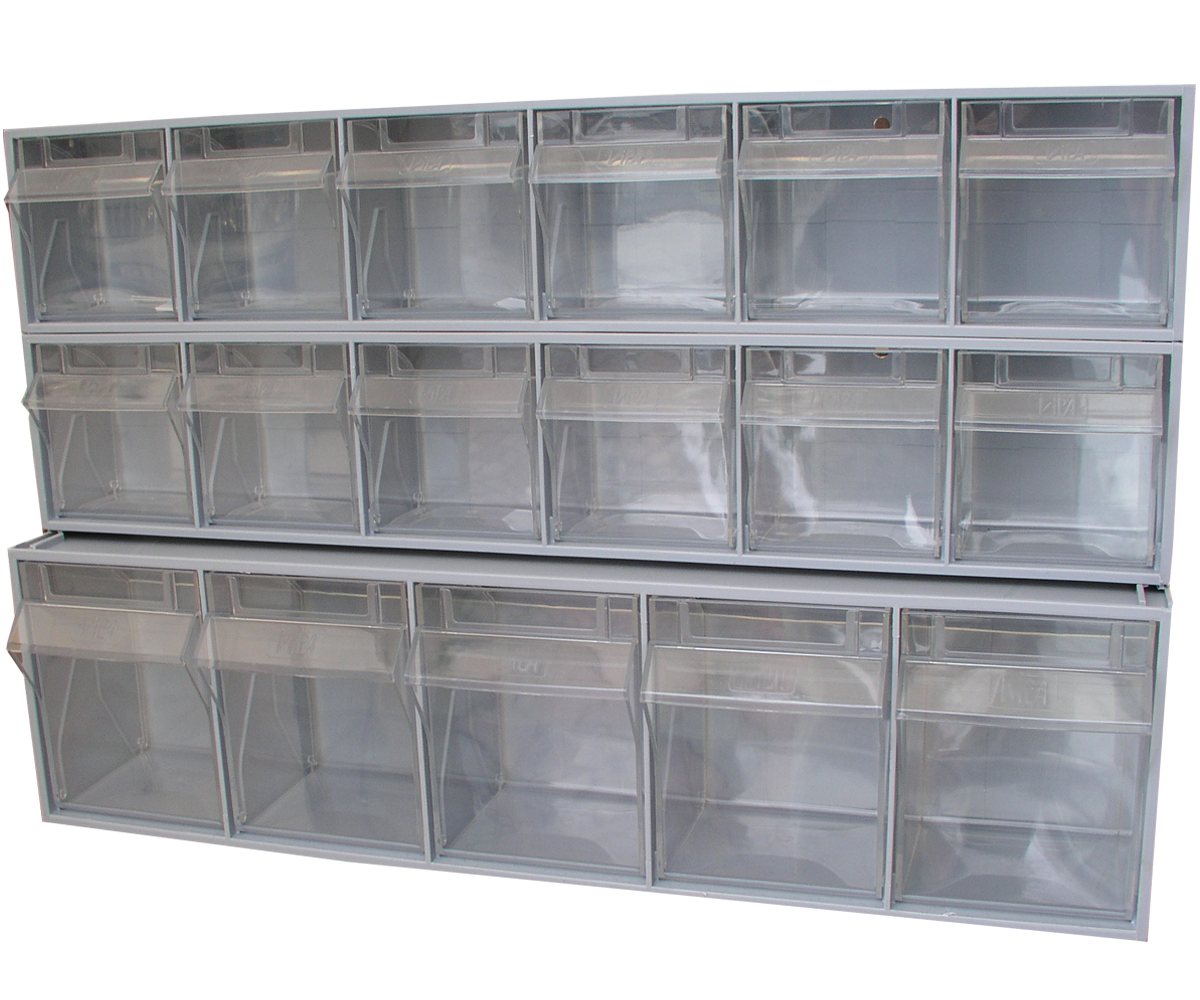

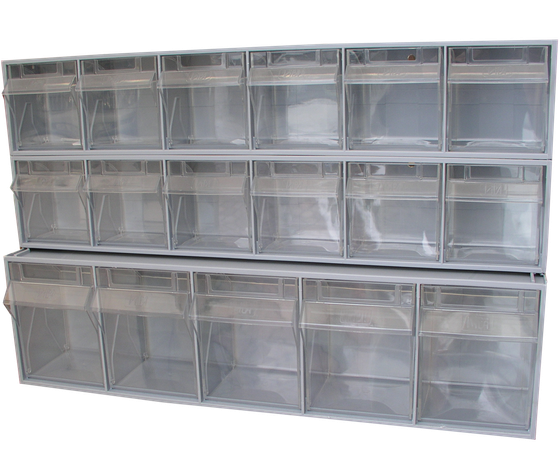

The ZM3 version has three rows. Upon request, the bins can be ordered without the stainless steel holder.
