Ward Round and Dressing Trolleys

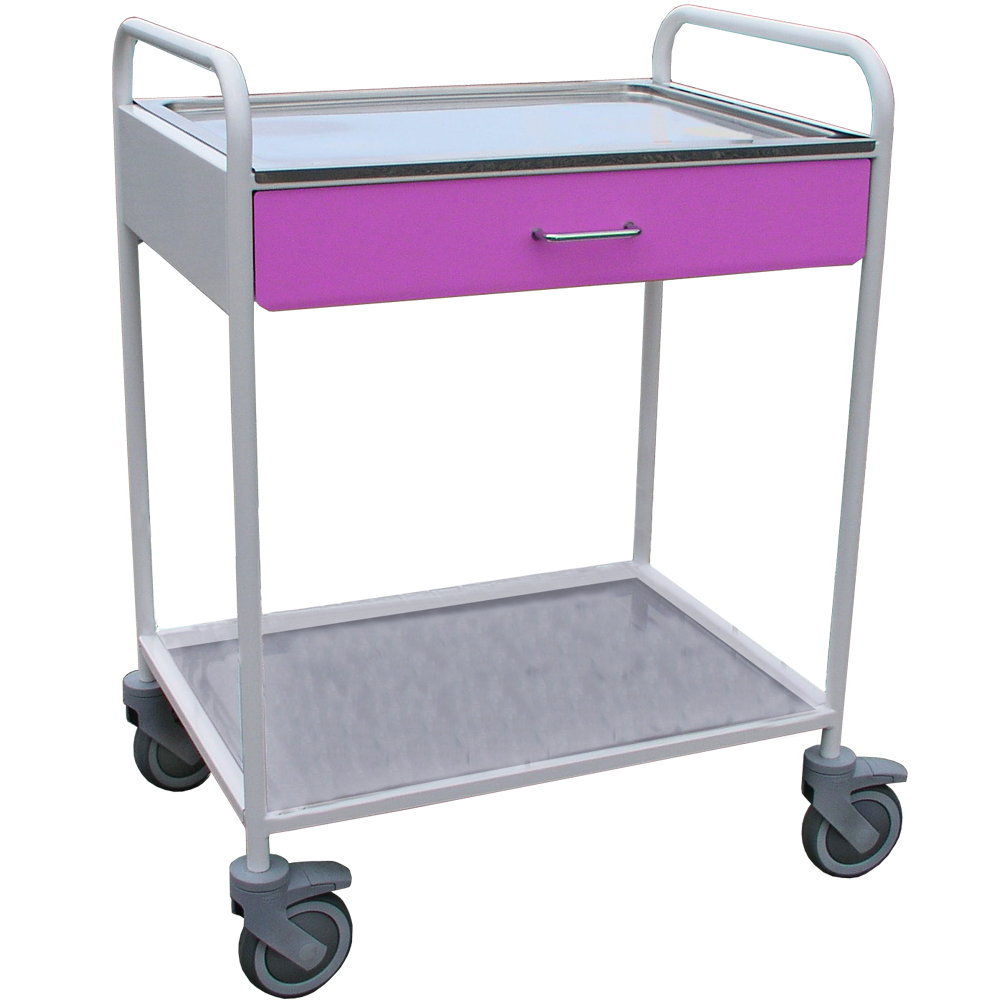

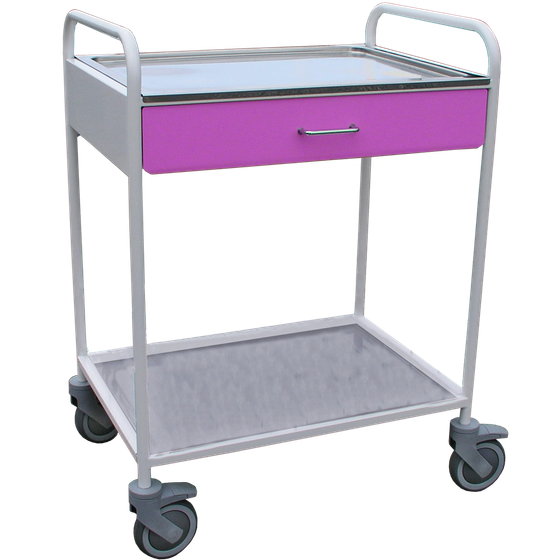

SNLM-700-Z Instrument Table

The mobile table is made of steel profiles finished with powder-coated polyester paint and is equipped with two handles in the upper section. The upper storage surface consists of a pressed stainless steel tray, while a recessed stainless steel tray is located in the lower section. The 100 mm deep drawer is equipped with full-extension runners. The table is fitted with two braked and two unbraked swivel castors Ø 125 mm. The drawer colour is included in the price according to our RAL colour chart.

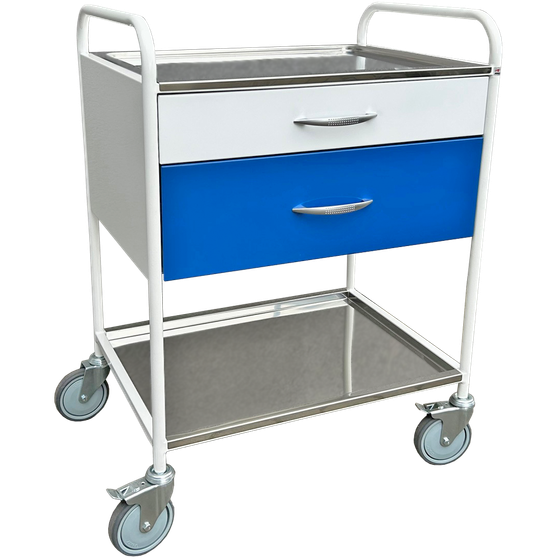

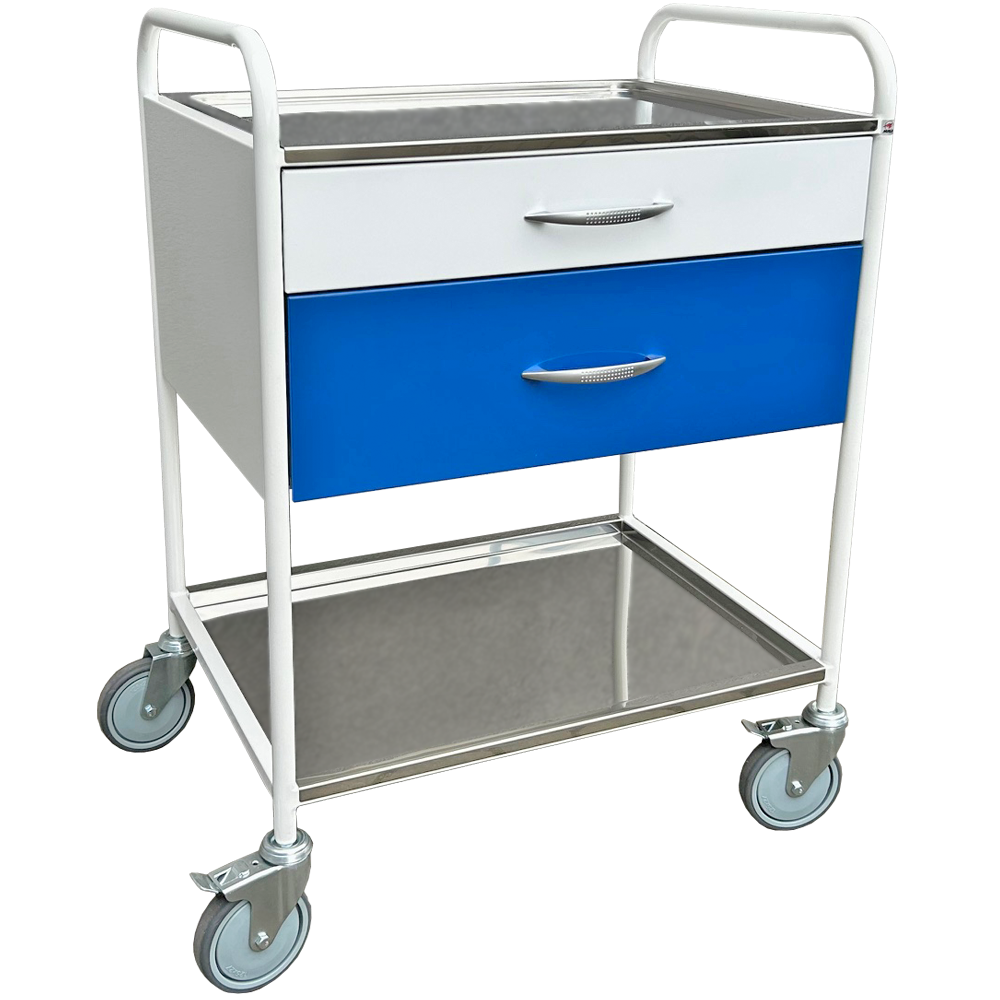

SNLM-700-2Z Instrument Table

The mobile table is made of steel profiles finished with powder-coated polyester paint and is equipped with two handles in the upper section. The upper storage surface consists of a pressed stainless steel tray, while a recessed stainless steel tray is located in the lower section. The 100 mm and 200 mm deep drawers are equipped with full-extension runners. The table is fitted with two braked and two unbraked swivel castors Ø 125 mm. The drawer colour is included in the price according to our RAL colour chart.

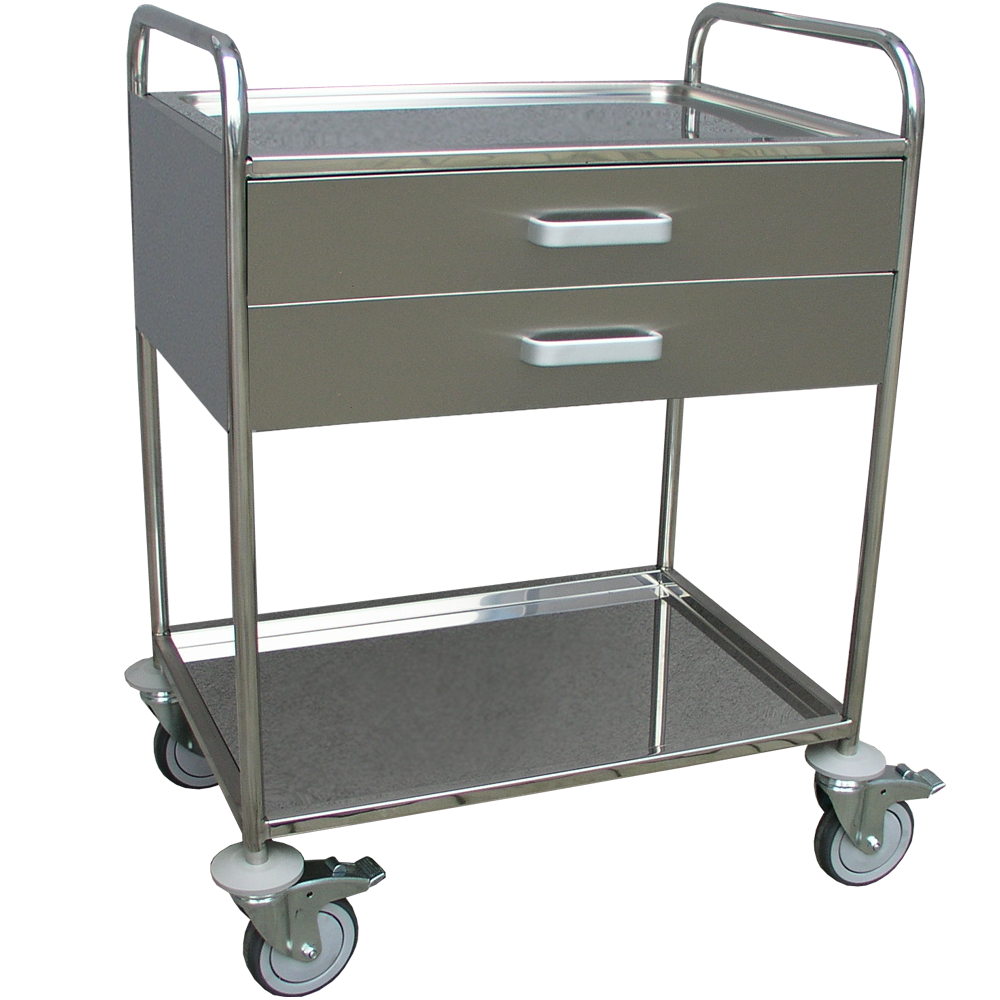

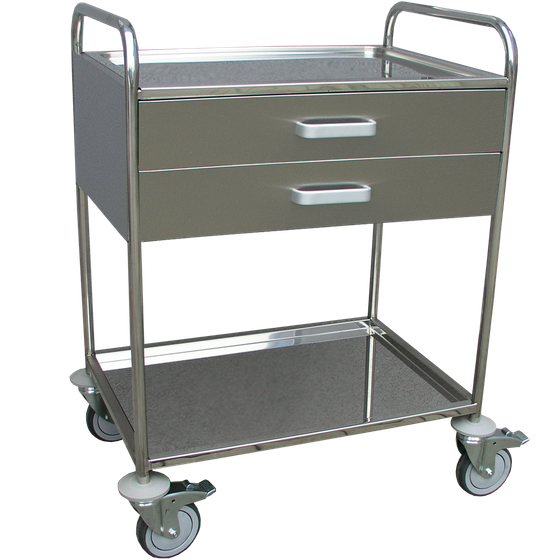

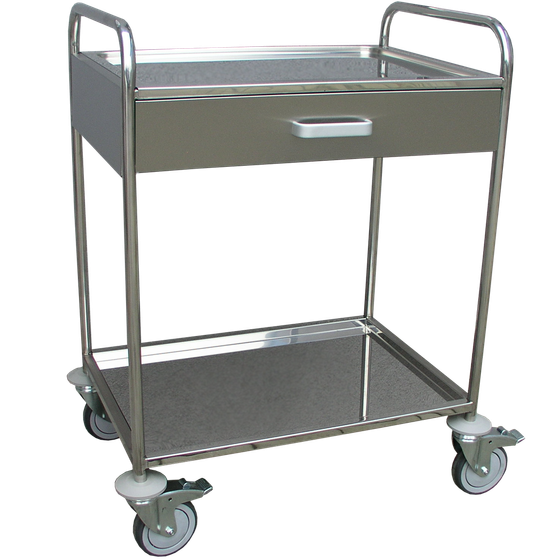

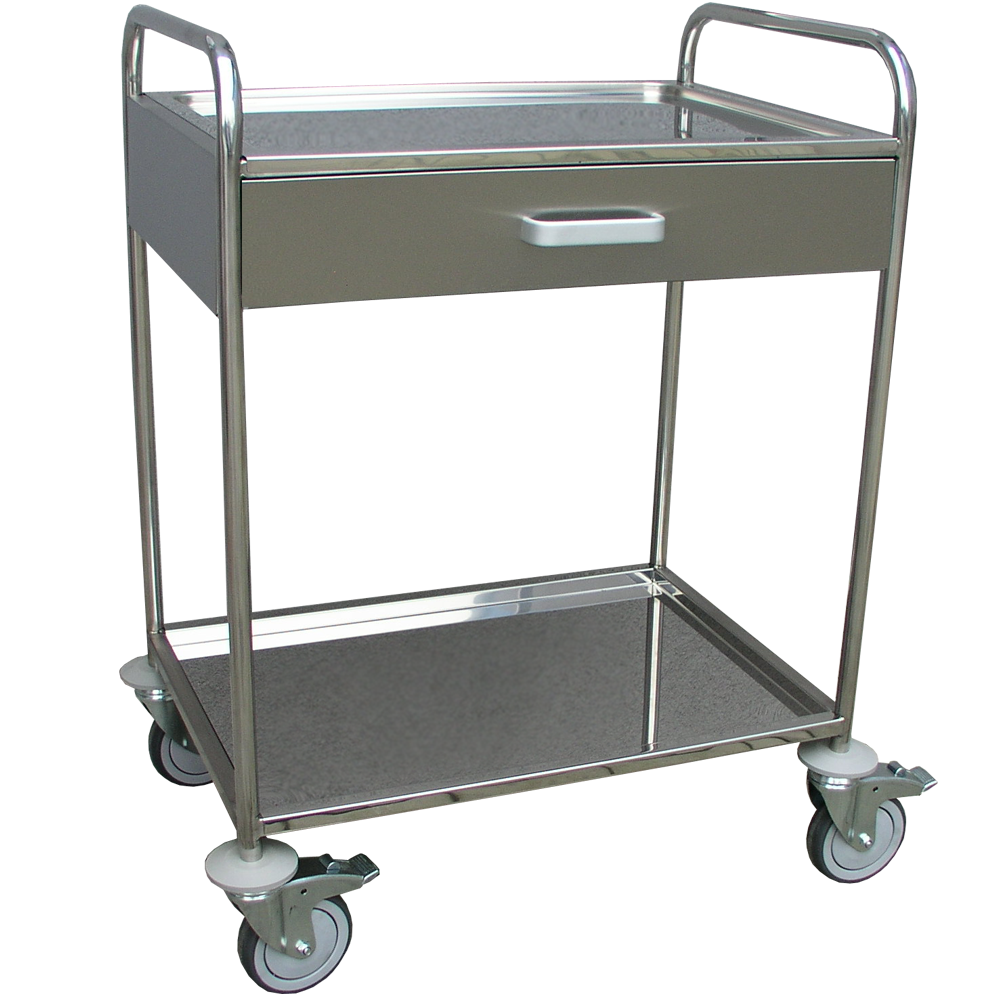

SNNM-700-Z / SNNM-700-2Z Ward Round Trolley

The mobile stainless steel ward round trolley is designed for transporting medical material and medication. It is equipped with one 100 mm deep drawer with full-extension runners in the SNNM-700-Z version, or with two drawers in the SNNM-700-2Z version, an upper pressed stainless steel tray and a lower inserted stainless steel tray. Upon request, the drawer can be fitted with a transparent plastic insert PVZ-2+2 or PVZ-2+3. The trolley is fitted with two braked and two unbraked ball-bearing castors Ø 125 mm with rubber bumpers.

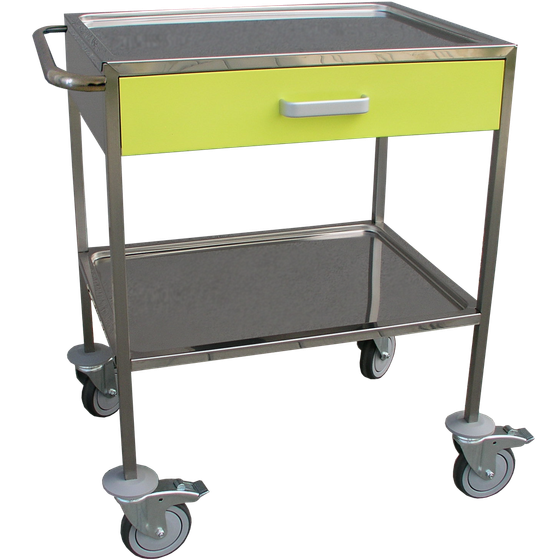

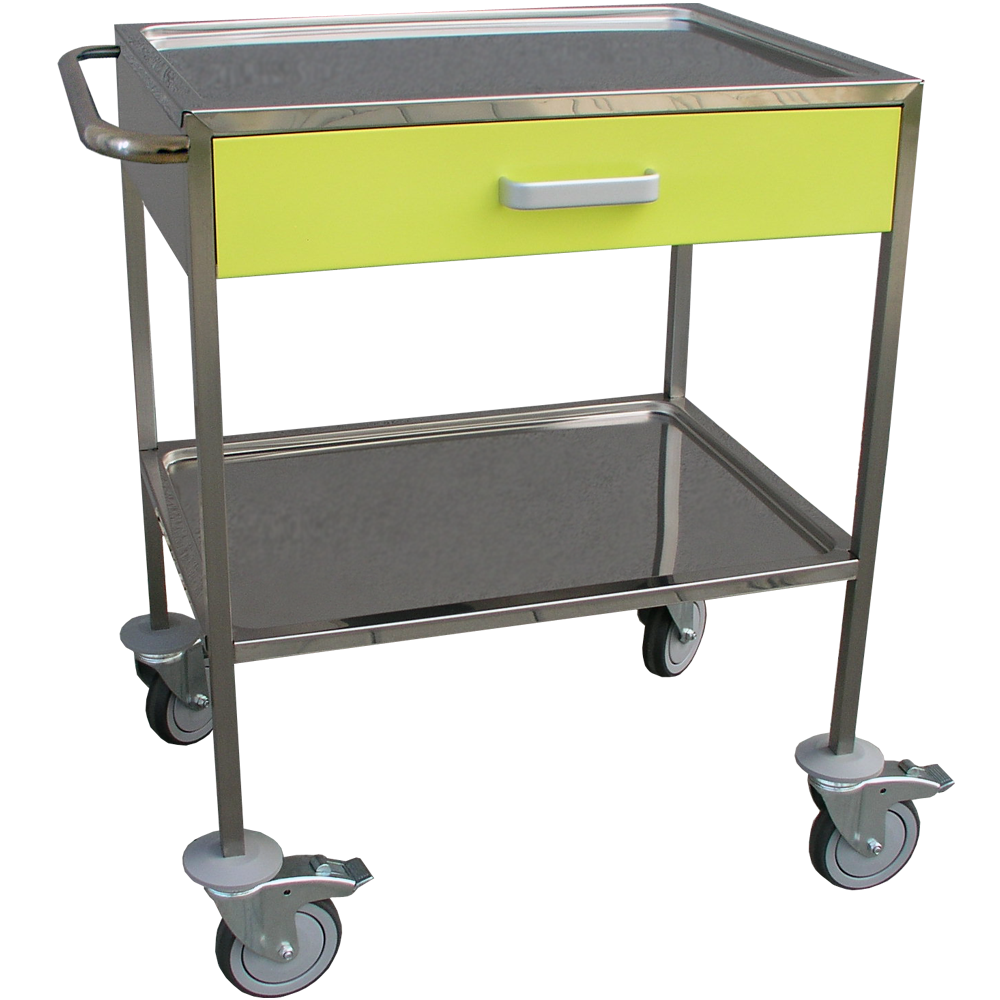

SNNZ-640M Ward Round Instrument Trolley

The mobile stainless steel ward round trolley is designed for transporting medical material and medication. It is equipped with an upper and lower pressed stainless steel tray and a 100 mm deep drawer with full-extension runners. Upon request, the drawer can be fitted with a plastic medicine insert PVZ-1. The trolley is fitted with two braked and two unbraked castors Ø 125 mm with rubber bumpers. The drawer colour is included in the price according to our RAL colour chart.

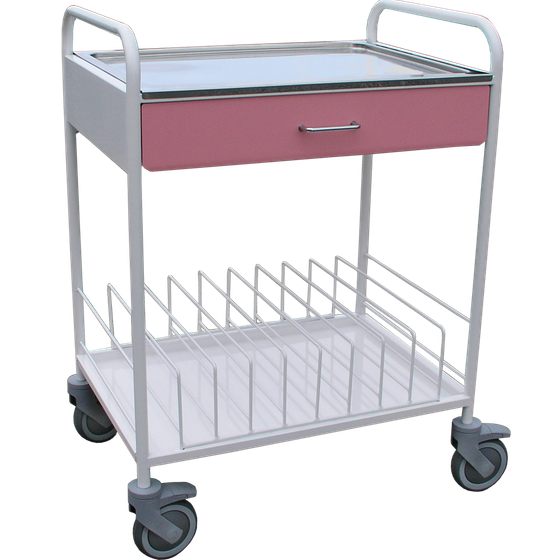

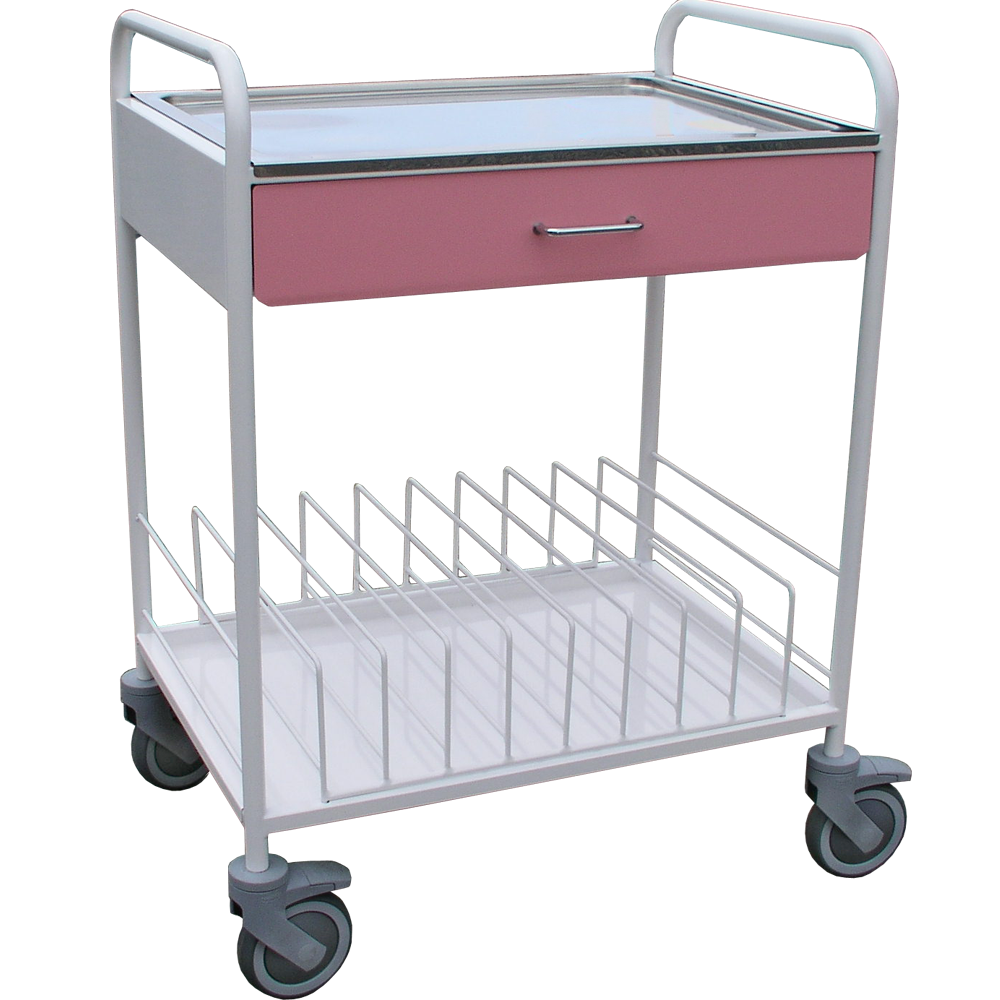

SVCHL-640 Ward Round Trolley for Medical Records

The mobile ward round trolley is designed for transporting medical material and storing patient records during ward rounds. It is made of painted steel profiles with an upper pressed stainless steel tray, a 100 mm deep drawer and a lower documentation divider. The trolley is fitted with two braked and two unbraked castors Ø 125 mm. Drawer colour in RAL according to the colour chart.

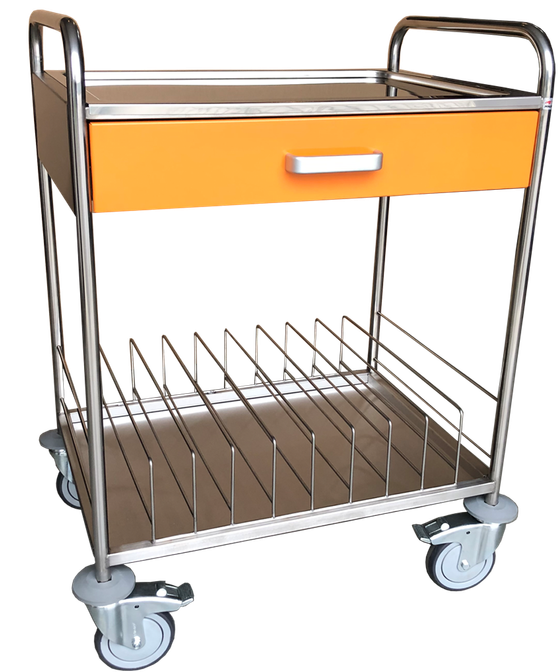

SVCHN-640 Ward Round Trolley for Medical Records

The mobile ward round trolley is designed for transporting medical material and storing patient records during ward rounds. It is made of stainless steel profiles with an upper pressed stainless steel tray, a 100 mm deep drawer and a lower documentation divider. The trolley is fitted with two braked and two unbraked castors Ø 125 mm. Drawer front colour available for an additional charge.

SVCHN-1000 Multi-Purpose Trolley

The multi-purpose trolley with three storage trays is designed for transporting medical material. The front side is fitted with a storage grid for hanging infusions or a wire basket. The trolley is fitted with two braked and two unbraked castors Ø 125 mm.

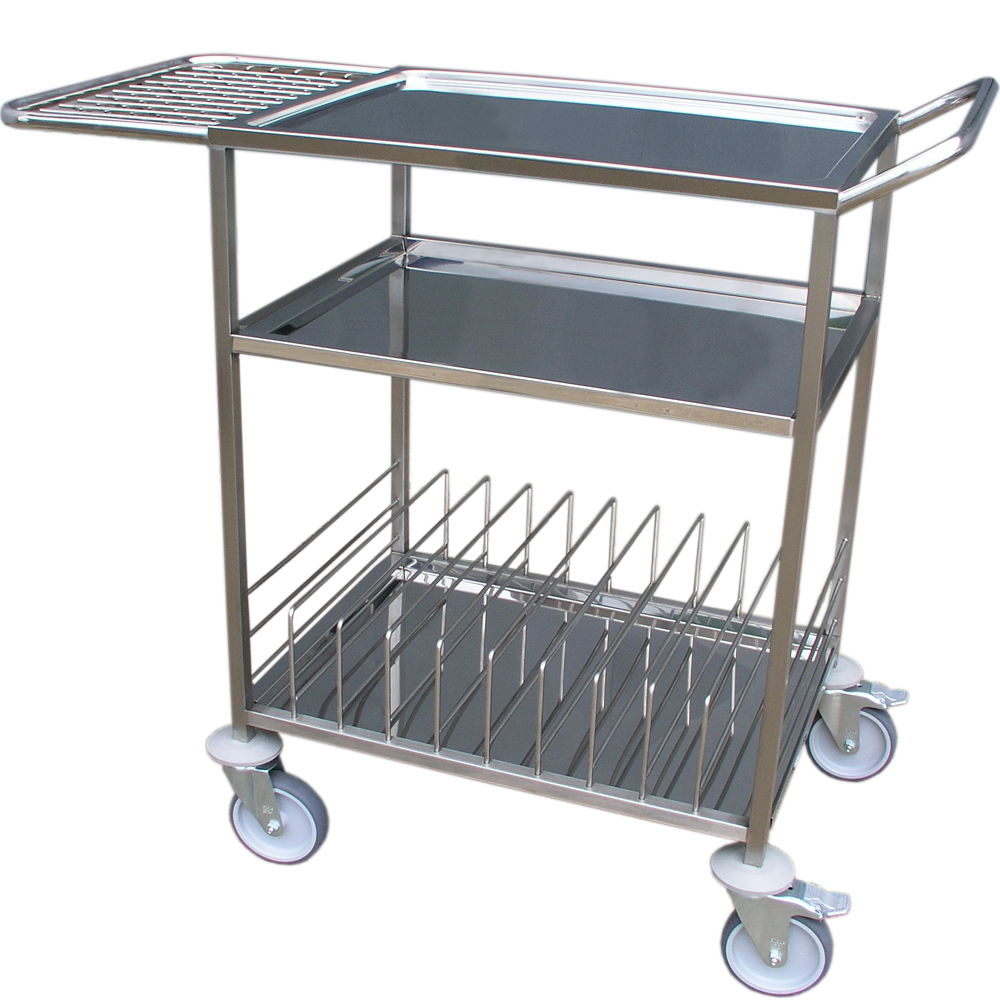

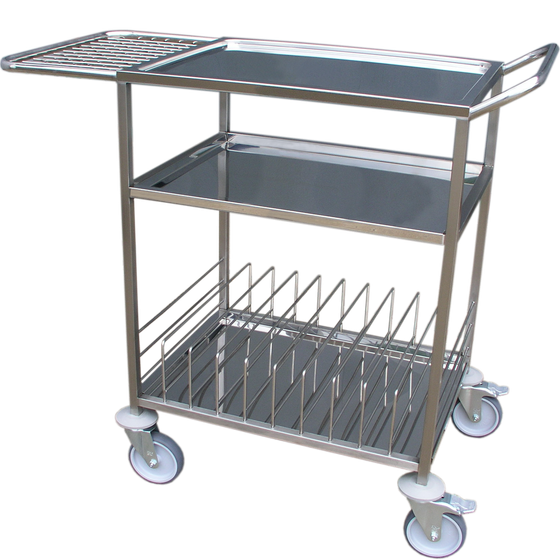

SVCHN-1000-R Ward Round Trolley for Medical Records

The mobile ward round trolley with storage tray is designed for transporting medical material and storing patient records during ward rounds. It is equipped with a storage grid panel, a lower documentation holder and a removable storage shelf for easy maintenance. The trolley is fitted with two braked and two unbraked castors Ø 125 mm.

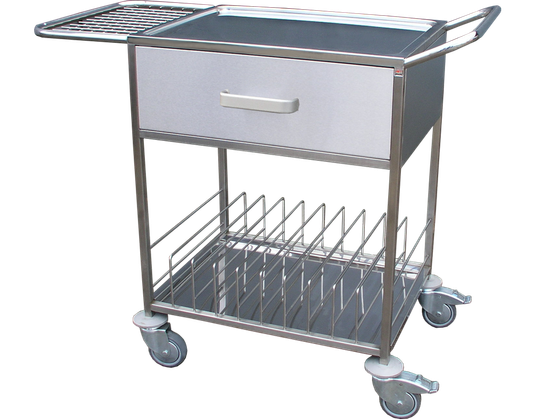

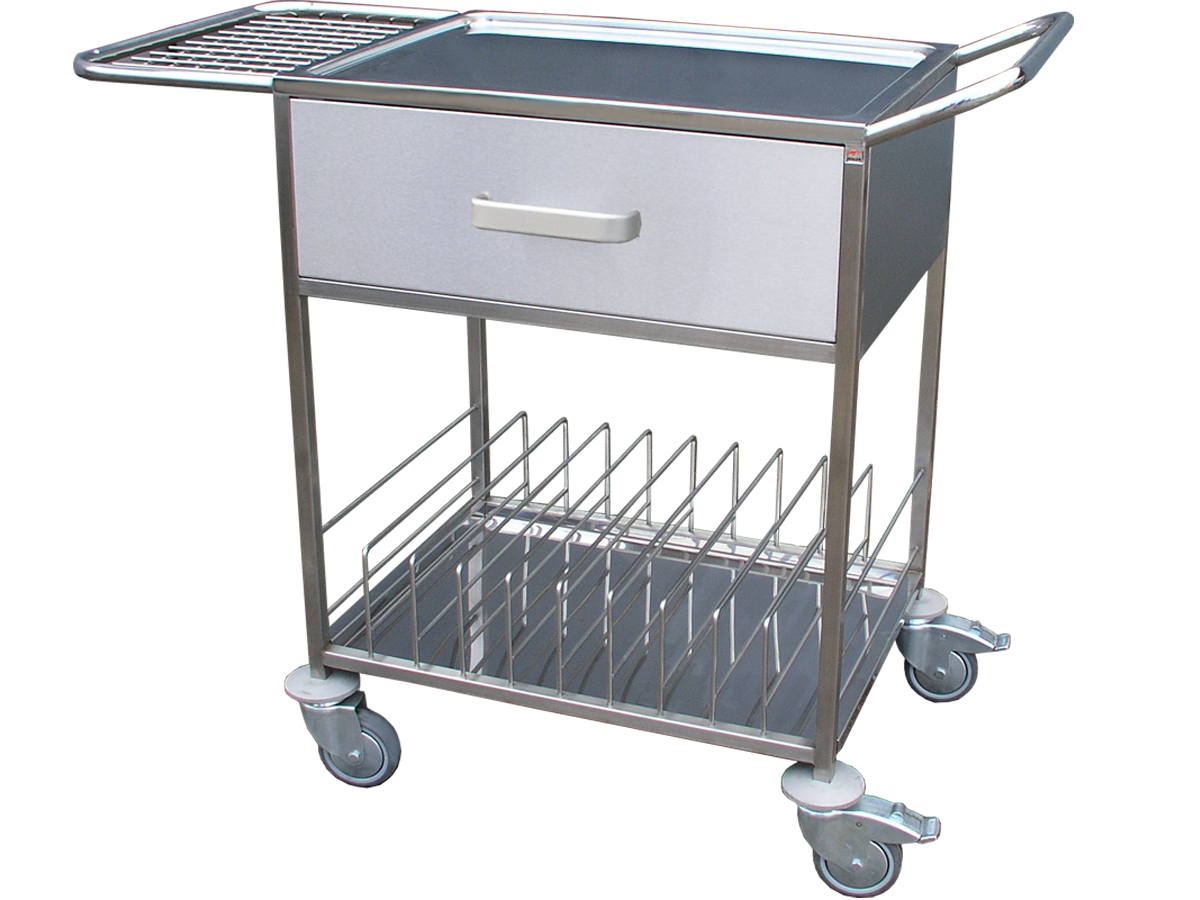

SVCHN-1000-Z Ward Round Trolley for Medical Records

The same dimensional design as the SVCHN-1000 trolley, additionally equipped with a 200 mm high drawer with full-extension runners. The trolley is fitted with two braked and two unbraked castors Ø 125 mm.

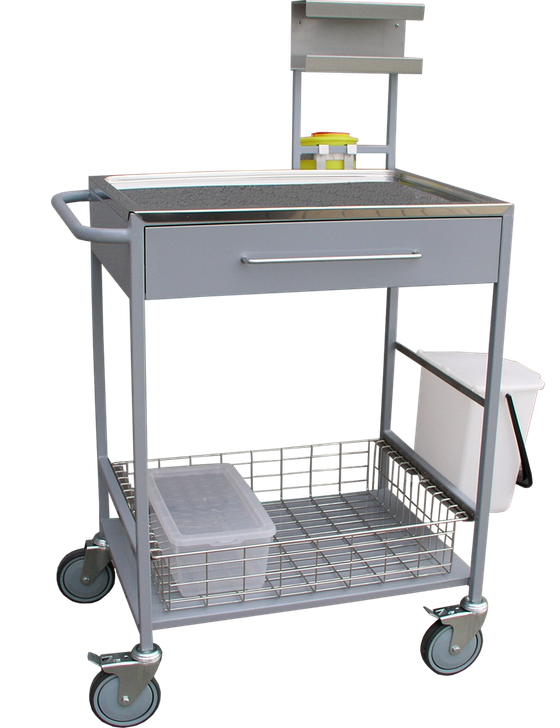

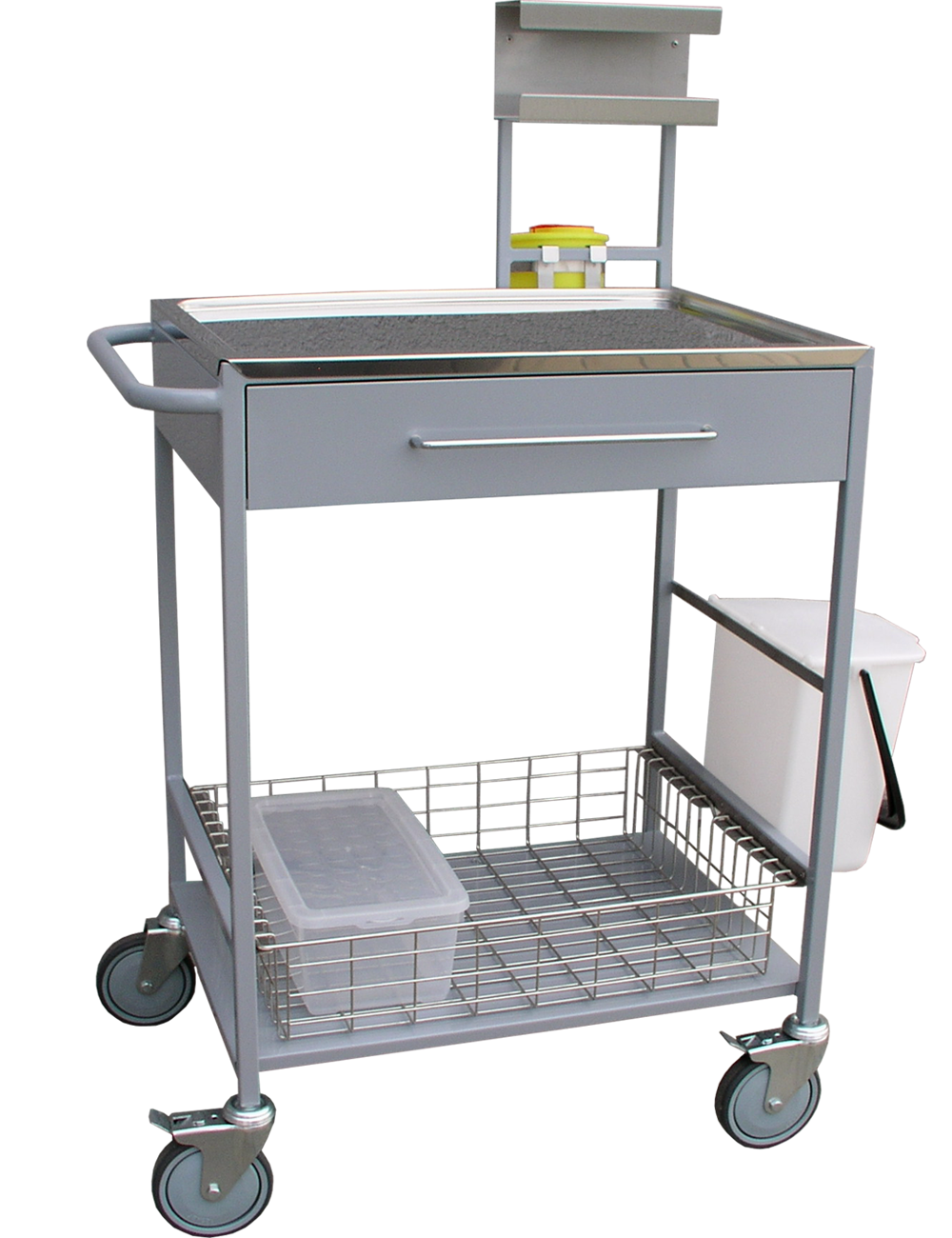

SPN-640KGR Stainless Steel Dressing Trolley

The mobile trolley is made of stainless steel profiles with an upper pressed stainless steel tray and a stainless steel holder for a glove dispenser. A hazardous waste container is also mounted on the rear frame. Under the upper tray, the trolley is fitted with a 100 mm deep drawer with full-extension runners. The lower section is equipped with a pull-out stainless steel basket, 120 mm deep, and the front side with a removable 8-litre plastic bin. The trolley is fitted with two braked and two unbraked castors Ø 125 mm. Upon special request, it can also be equipped with a lower plastic container.

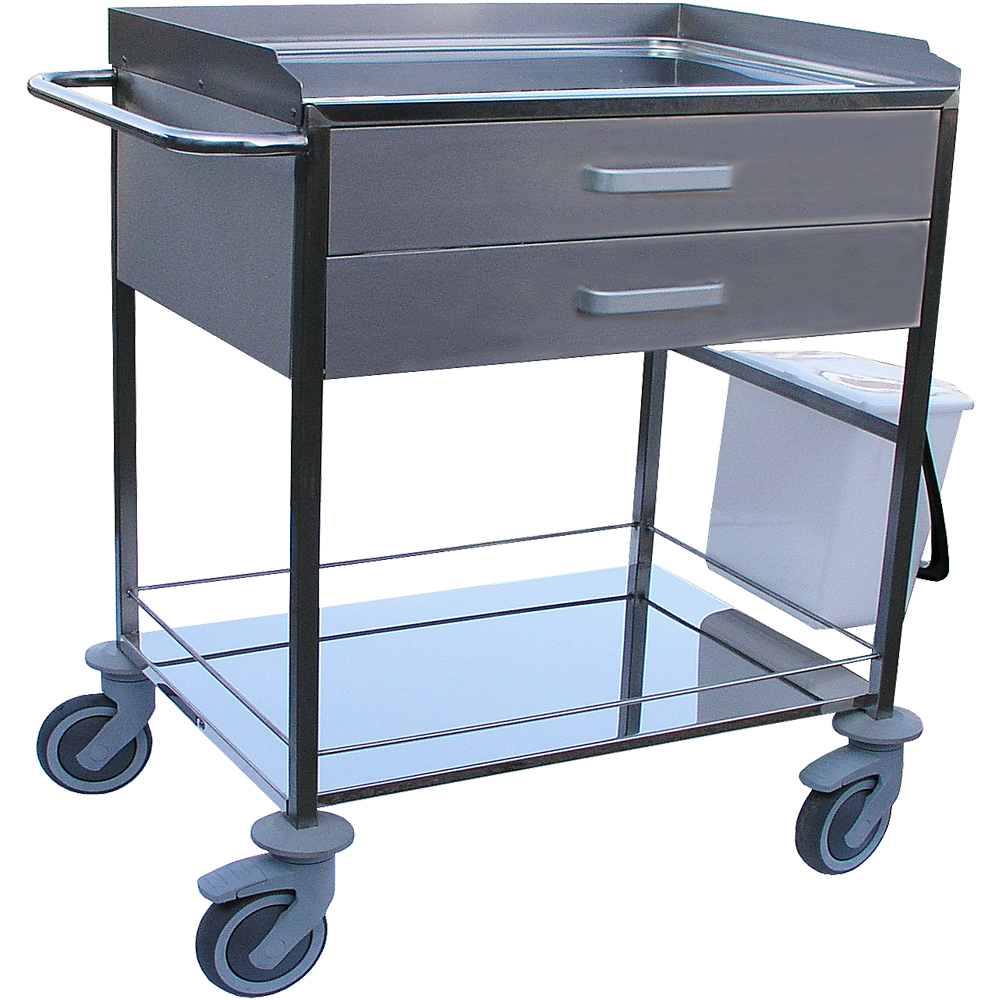

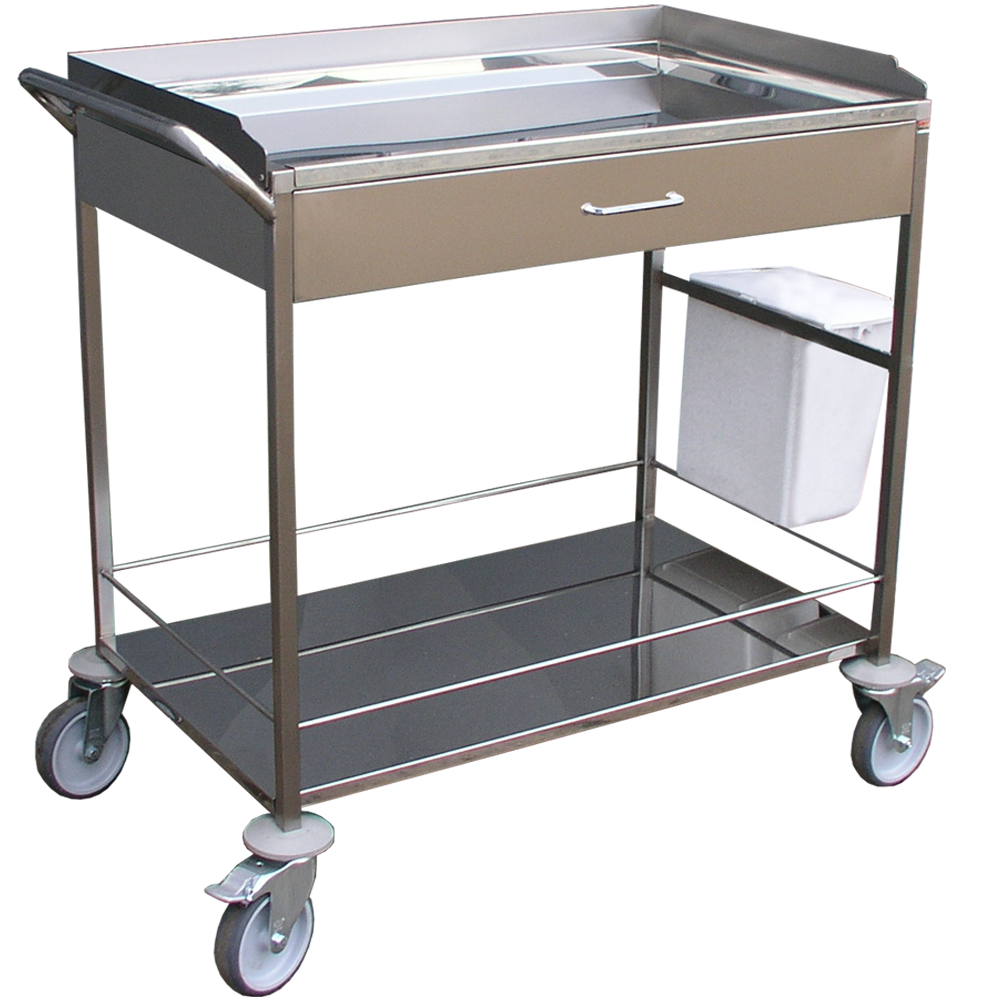

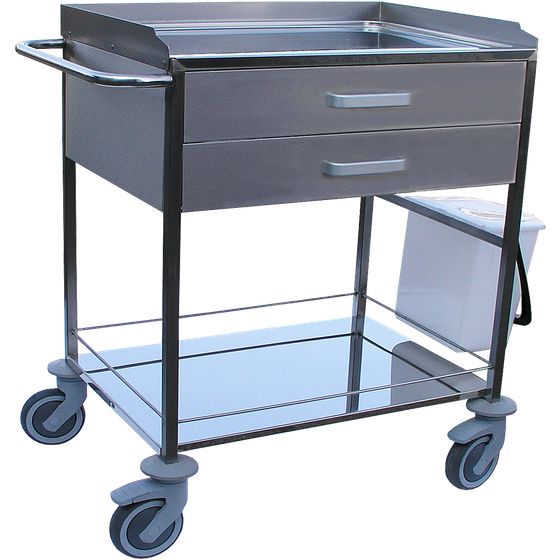

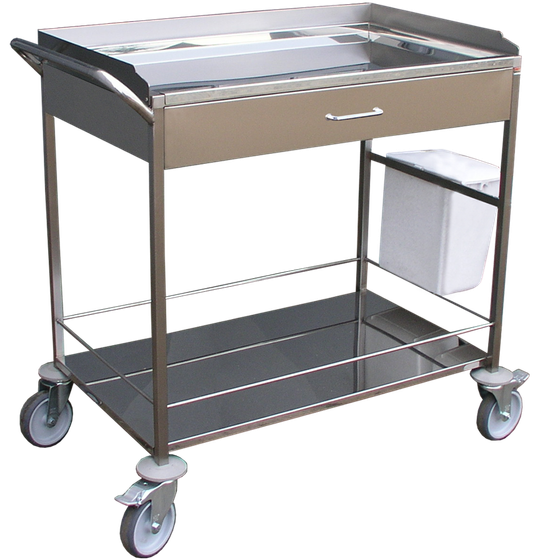

SPN-640 / SPN-2-640 Dressing Trolley

The mobile trolley is made of stainless steel profiles. The SPN-640 version is equipped with an upper pressed stainless steel tray with a guard rail and a lower flat storage tray with a guard rail. It is equipped with one drawer in the SPN-640 version, or two drawers in the SPN-2-640 version, for storing medical material. A semi-circular 8-litre plastic bin is mounted on the right side. The trolley is fitted with two braked and two unbraked castors Ø 125 mm.

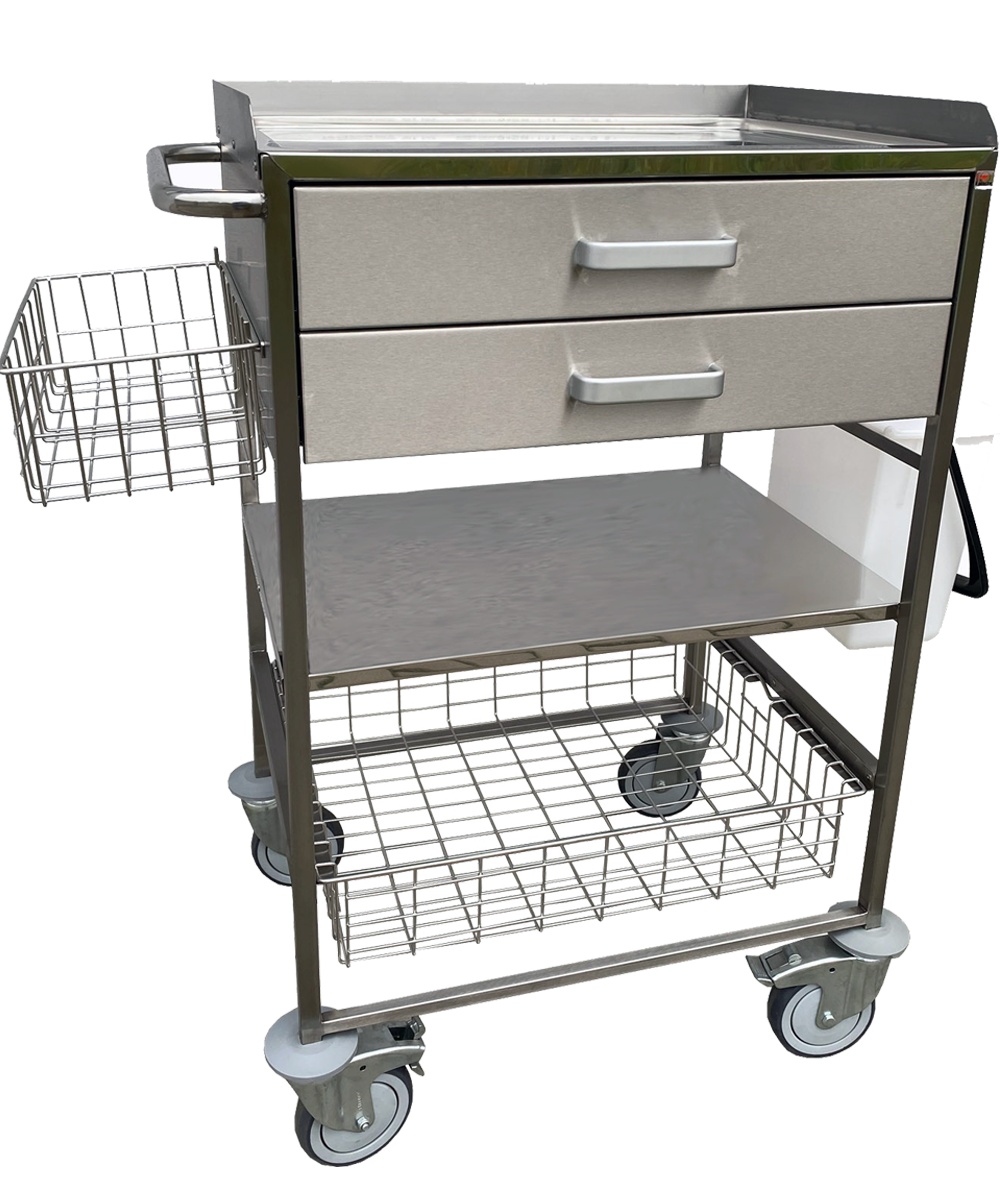

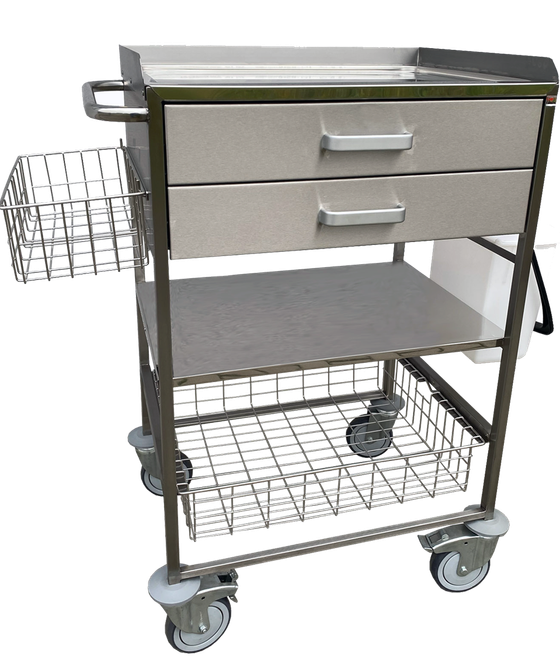

SPN-2-640PK Dressing Trolley

The SPN-2-640PK mobile trolley is made of stainless steel profiles with an upper pressed stainless steel tray with a guard rail. The middle section contains a flat stainless steel storage tray and the lower section a double-sided removable stainless steel storage basket. It is equipped with two drawers for storing medical material. The distance between the drawer and the tray is 200 mm, and the distance between the tray and the lower basket is 200 mm. On the left side, the trolley is equipped with a handle and a hanging basket measuring 400 × 200 × 120 mm, mesh size 30 × 60 mm. A semi-circular 8-litre plastic bin is mounted on the right side. The trolley is fitted with two braked and two unbraked castors Ø 125 mm.

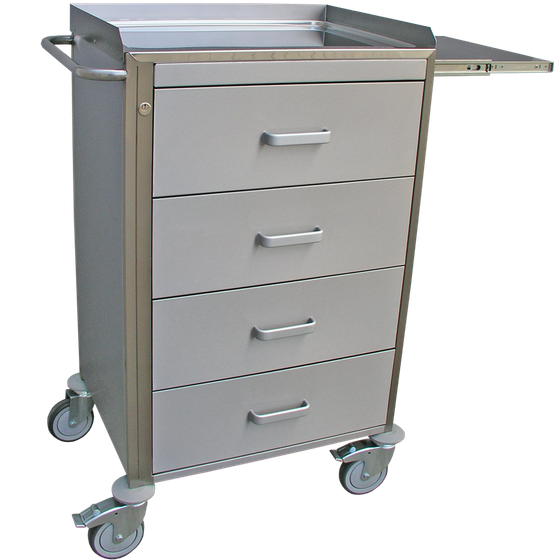

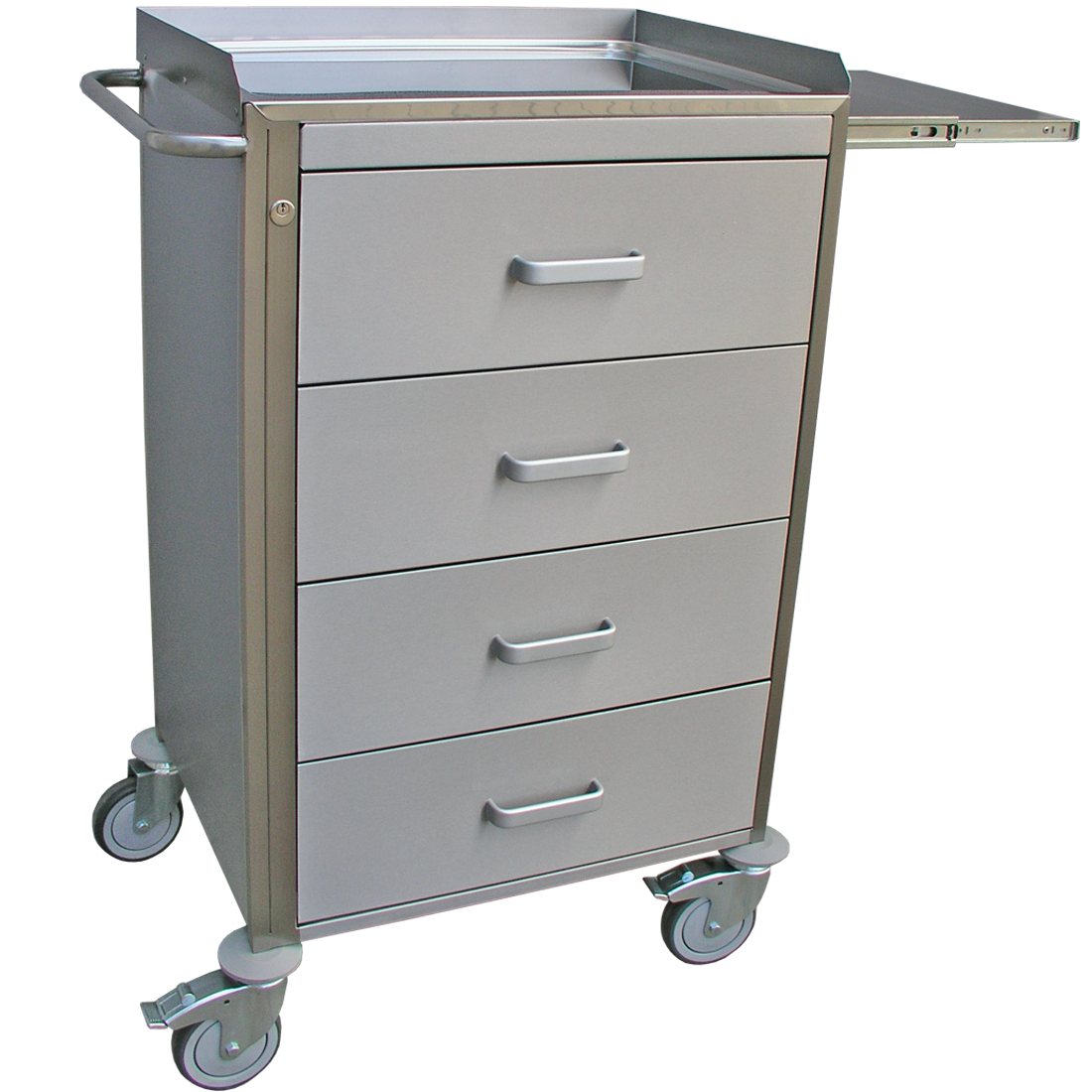

SPN-4-640 Dressing Trolley

The trolley is made of stainless steel profiles with an upper pressed stainless steel tray and guard rail, four 200 mm deep drawers with full-extension runners, a handle on the left side and an integrated pull-out side shelf on the right side to increase the storage area. A semi-circular plastic bin is mounted on the lower right side. The trolley is fitted with two braked and two unbraked castors Ø 125 mm. Central locking of the drawers on the upper left side is available for an additional charge.

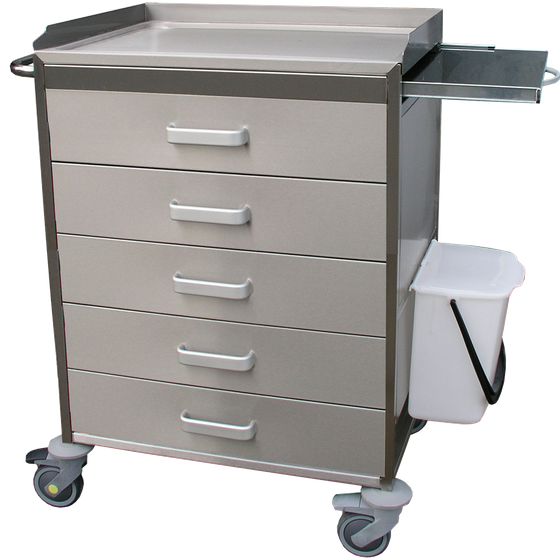

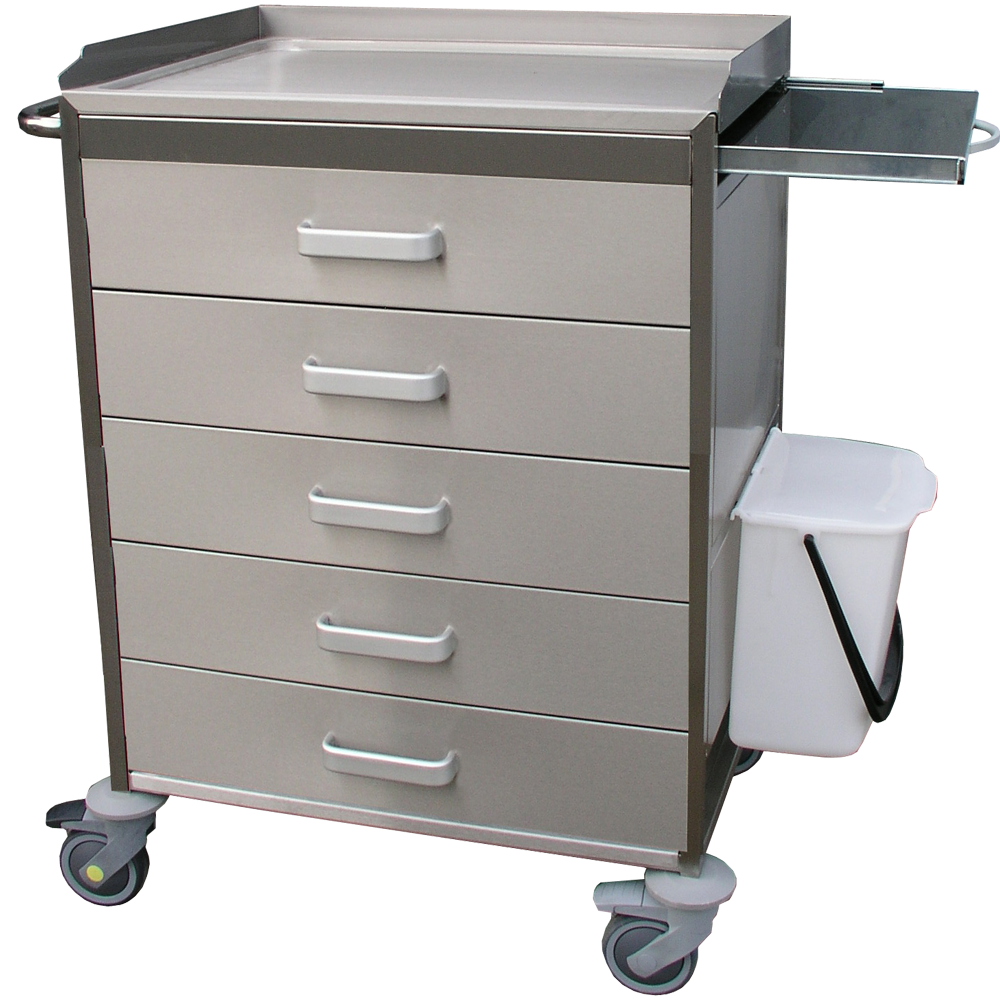

SPN-5-640 Dressing Trolley

The trolley is made of stainless steel profiles with an upper pressed stainless steel tray with a guard rail and a lower recessed storage tray. It is equipped with five drawers with full-extension runners, a handle on the left side and an integrated pull-out side shelf on the right side to increase the storage area. A semi-circular 8-litre plastic bin is mounted on the lower right side. The trolley is fitted with two braked and two unbraked castors Ø 125 mm. Central locking of the drawers on the upper left side is available for an additional charge.

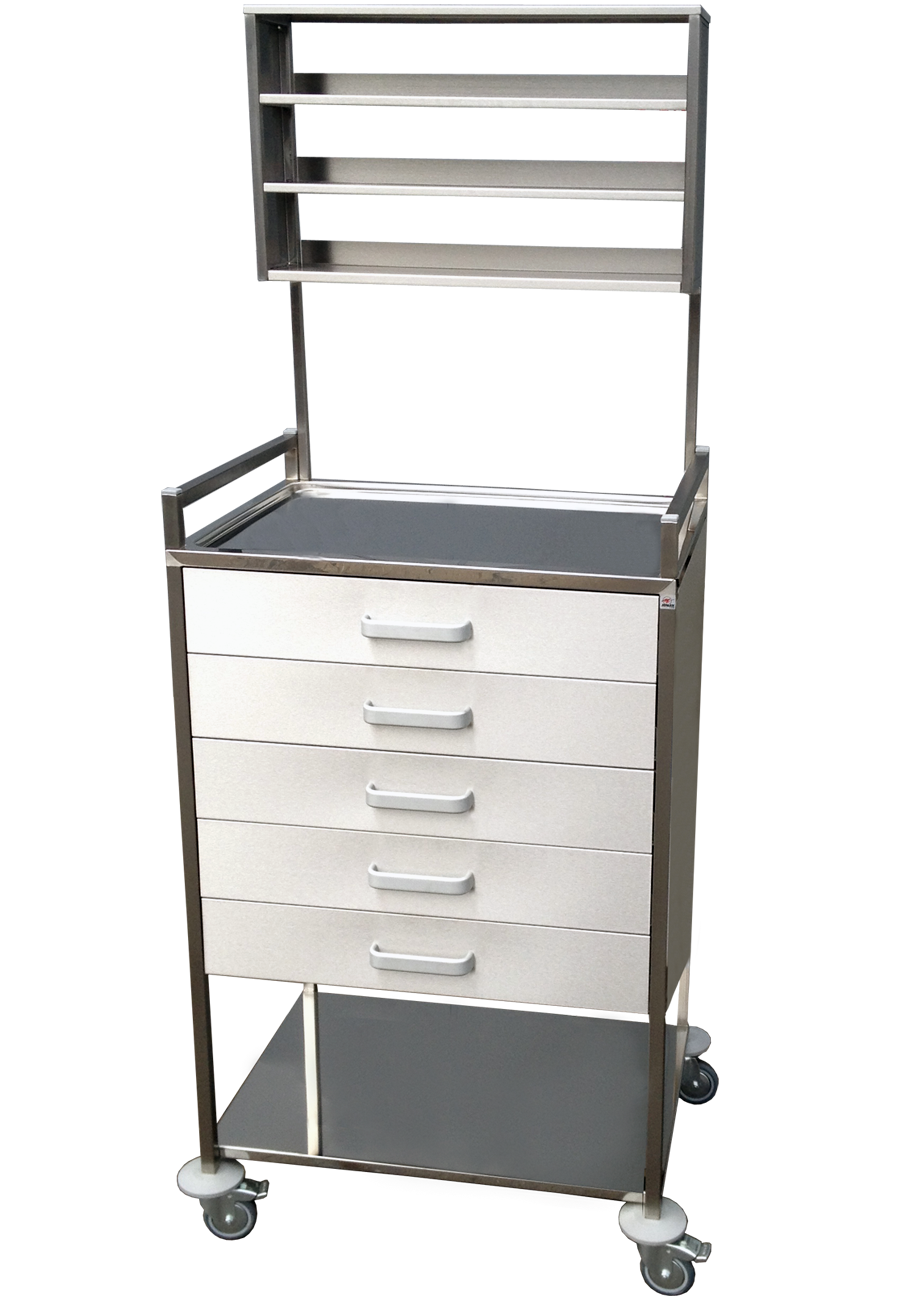

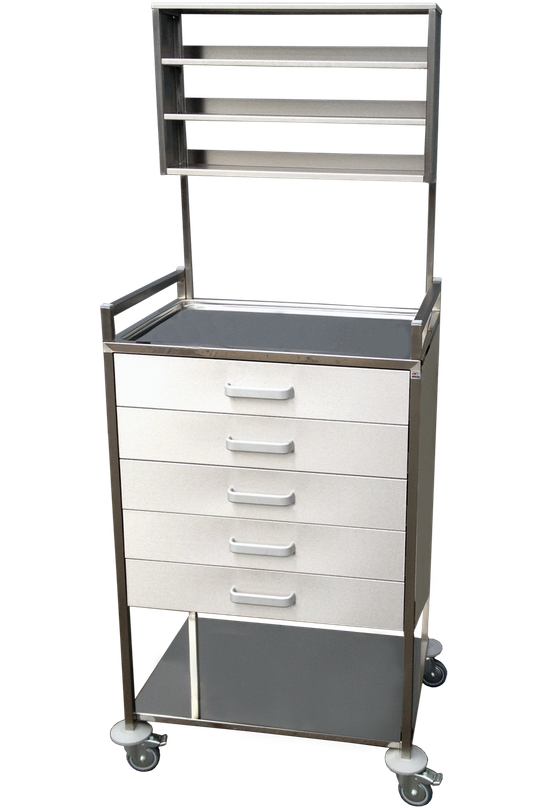

SPN-5-640S Dressing Trolley for Suture Material

The trolley is made of stainless steel profiles with an upper pressed stainless steel tray with a guard rail and a lower recessed storage tray. It is equipped with five drawers and a storage gallery for suture material. A semi-circular 8-litre plastic bin is mounted on the lower right side. The trolley is fitted with two braked and two unbraked castors Ø 75 mm.

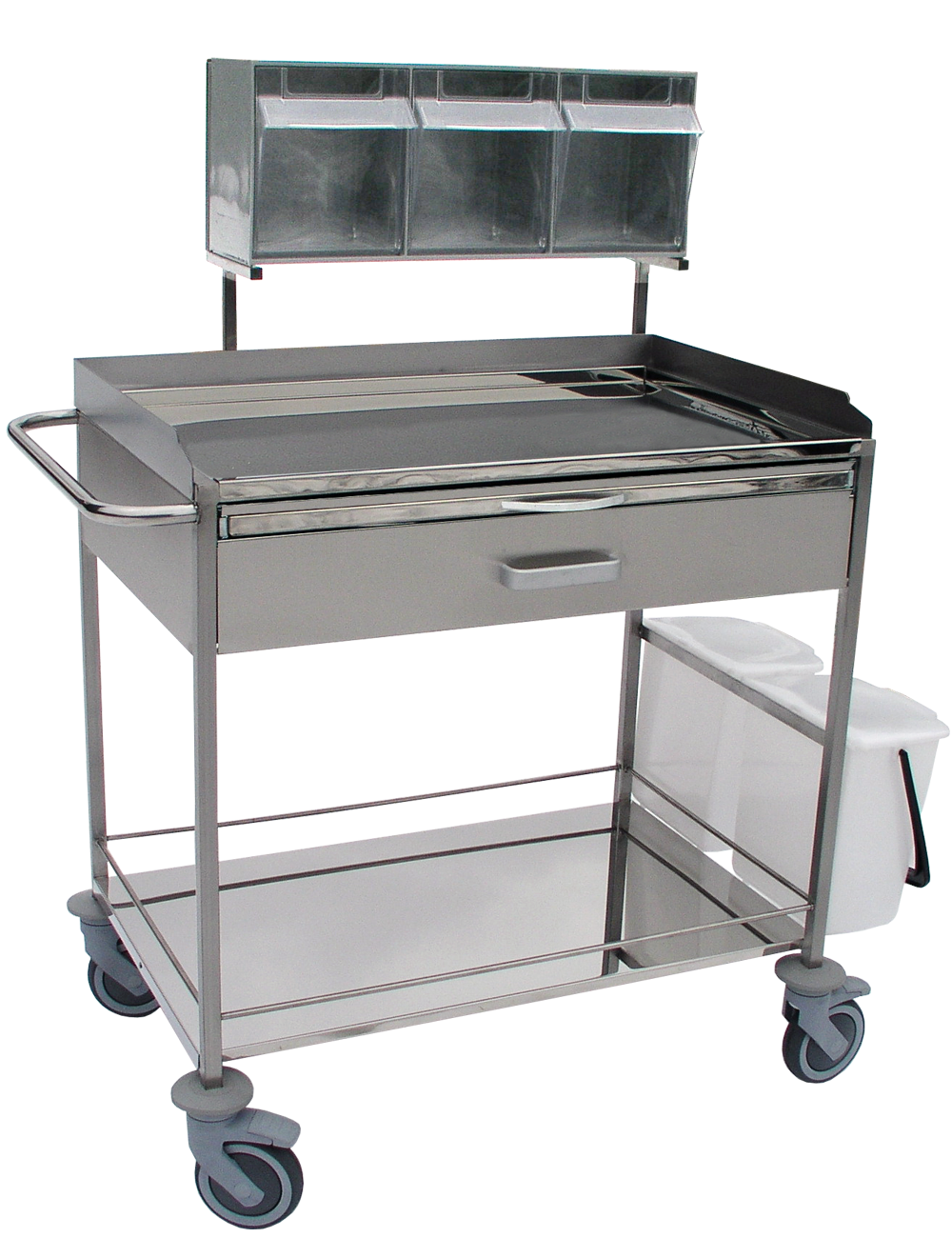

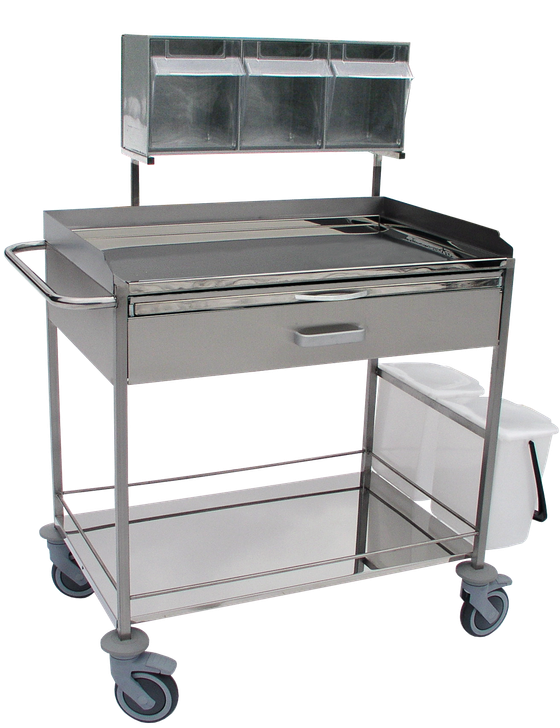

SPN-800 Dressing Trolley

The mobile trolley is made of stainless steel profiles with an upper recessed stainless steel tray, side handling handle and lower flat storage tray with a guard rail. The upper section is equipped with three tilt-out plastic bins, an integrated pull-out side shelf and a drawer. On the right side, two removable 8-litre plastic bins are mounted. The trolley is fitted with two braked and two unbraked castors Ø 125 mm.
