Trolleys with Storage Gallery

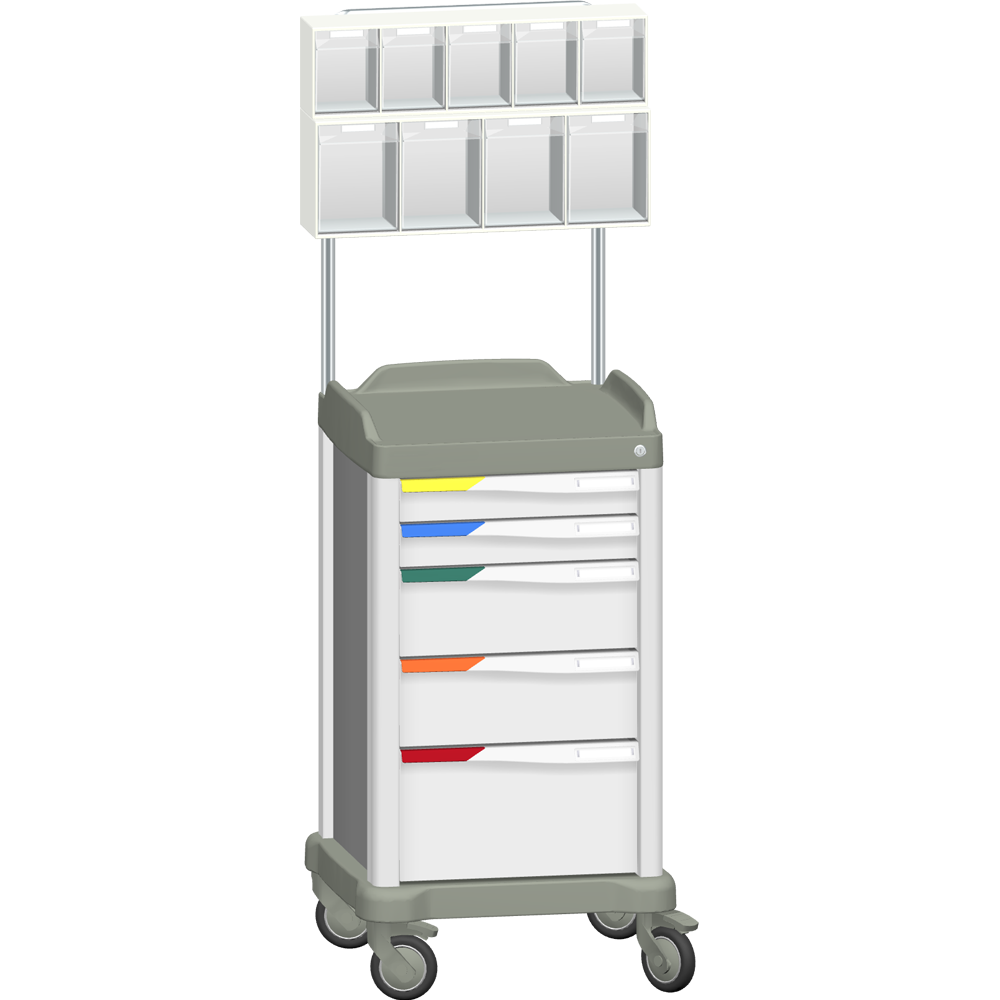

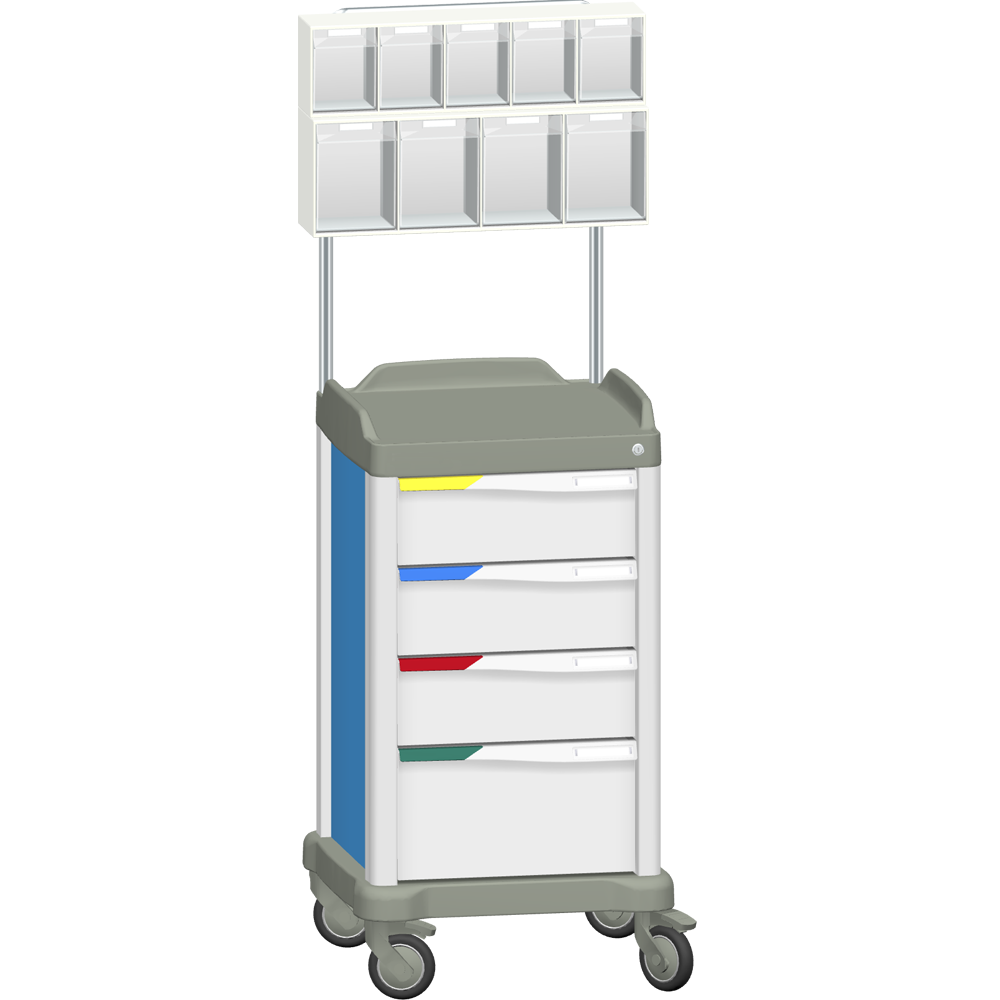

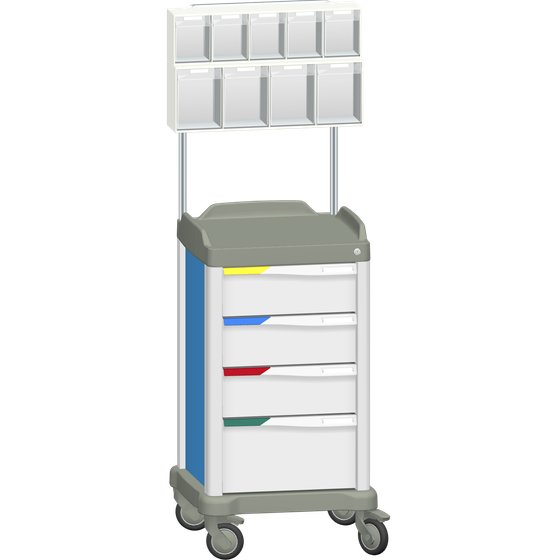

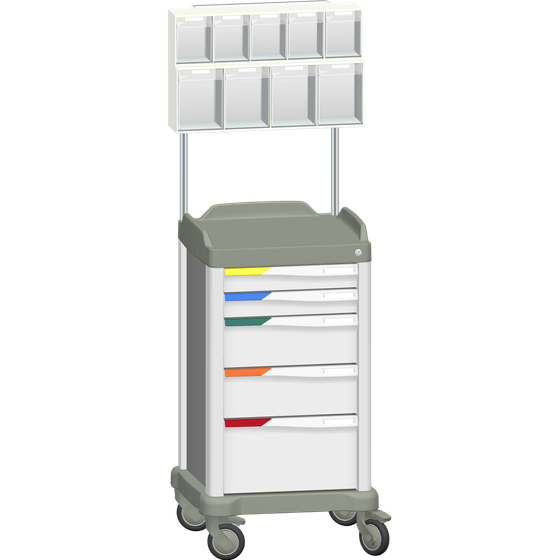

MUV-S4-G / MUV-S5-G Modular UNI Trolley with Storage Gallery

The modular UNI trolley in the smallest version, Small, offers a highly variable design, including optional colour finishes for the side panels, different drawer configurations and a wide range of optional accessories.
The trolley is reinforced in the corners with surface-treated aluminium profiles.
The upper ABS top is fitted with a moulded handle on three sides, 48 mm high. Above the top, a two-tier storage gallery with transparent plastic tilt-out bins 4 + 5 is mounted on a stainless steel holder with sliding Euro rails.
The left and right sides are fitted either with flat side panels or with two 25 × 10 mm Euro rails for hanging various accessories.
The front side is equipped with removable ABS drawers with internal dimensions of 355 × 410 mm. The drawers are fitted with full-extension runners with a load capacity of 45 kg per drawer and central locking.
Drawer heights are optional depending on the model: 76, 156 or 236 mm. Drawer handles are available in 9 colour options — see colour chart. The colour finish of the left, right and rear panels is also optional — see colour chart.
The base is fitted with rubber castors Ø 125 mm — 2 braked and 2 unbraked.

Optional trolley accessories: detailed specification according to the model is provided at the end of this section.

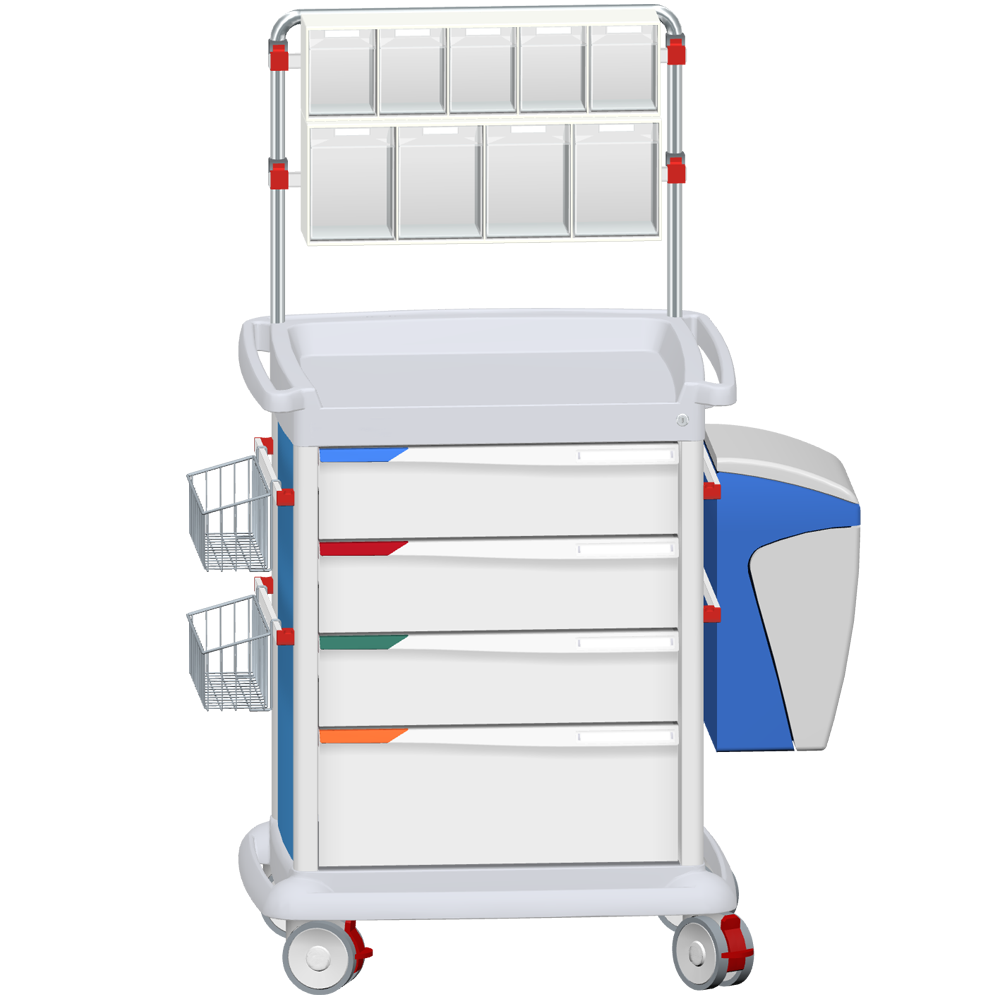

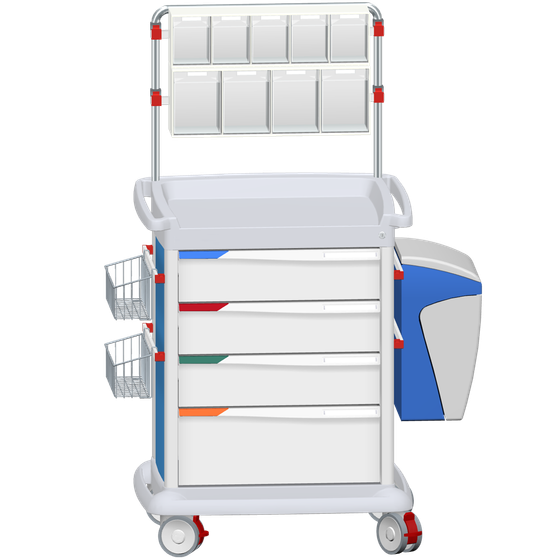

PRE9-L4-G Modular UNI Trolley with Storage Gallery

The modular UNI trolley is fitted in the upper section with an ABS plastic top with handles and an integrated pull-out side shelf on the right side.
The structure consists of corner aluminium profiles and side aluminium sandwich panels in optional colour finishes — see colour chart.
The storage system consists of removable drawers measuring 610 × 470 mm, with optional drawer heights of 76, 156 and 236 mm. The drawers are equipped with full-extension runners with a load capacity of 30 kg, a central key lock and coloured handles — see colour chart.
The base is fitted with twin castors Ø 125 mm, two of which are braked.
Optional accessories: adjustable Euro rails on both sides, an upper storage gallery, 500 or 800 mm high, with 4 + 4 or 4 + 5 tilt-out bins, hanging knee-operated waste bin 8 l or 20 l, stainless steel hanging wire basket, hanging IV holder, stainless steel hazardous waste container holder, glove holder, stainless steel holder with ampoule opener, disinfectant dispenser with 1 l container, and drawer organiser.

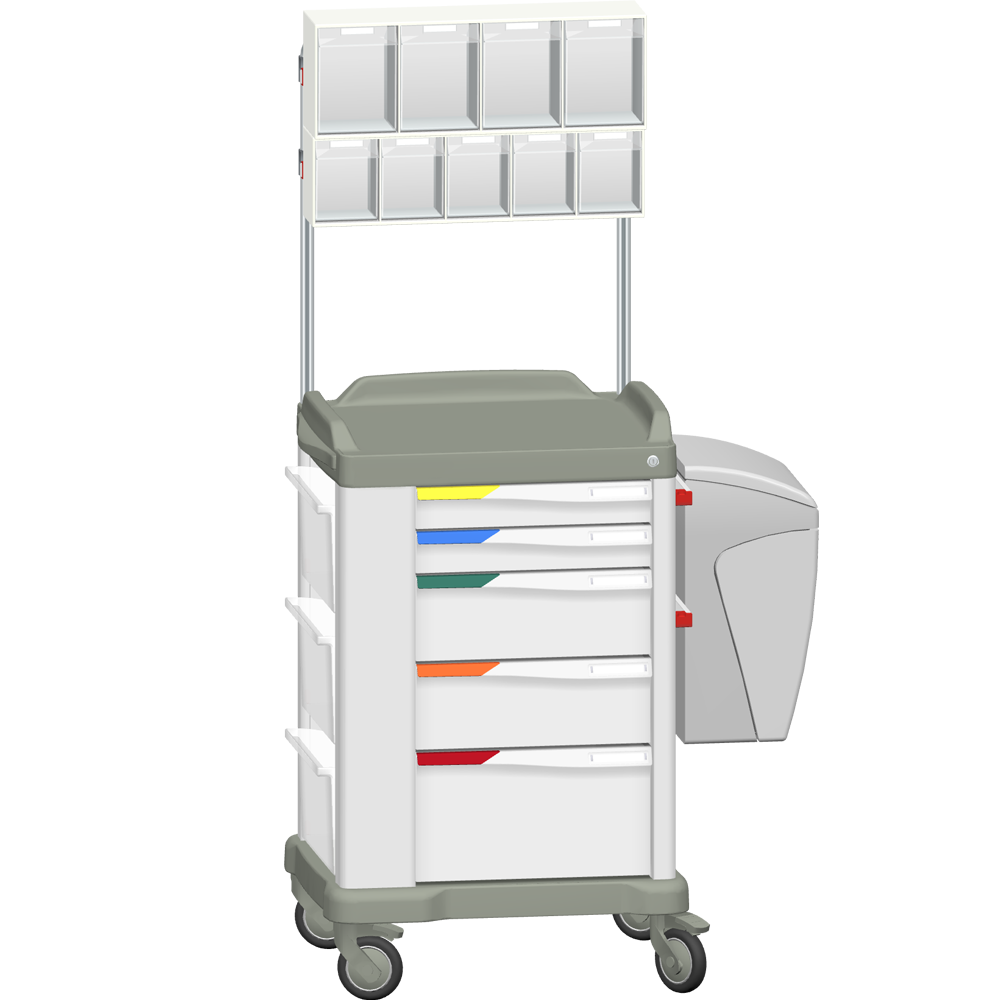

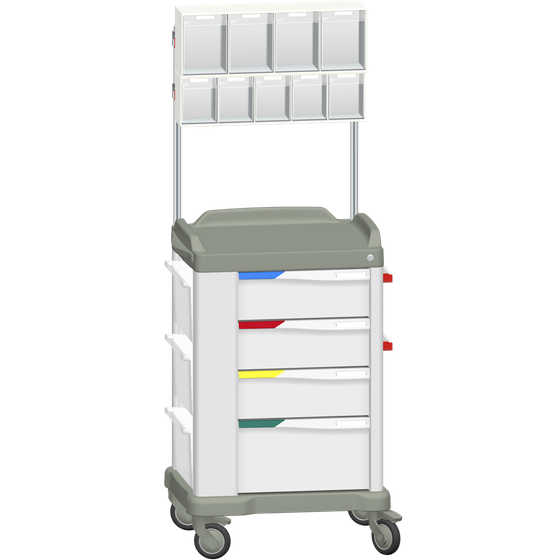

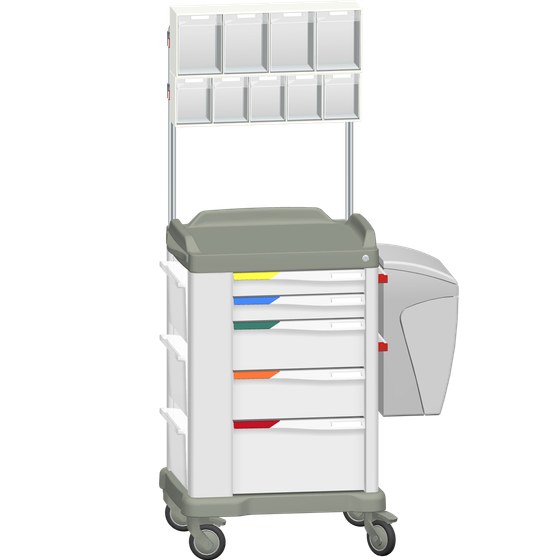

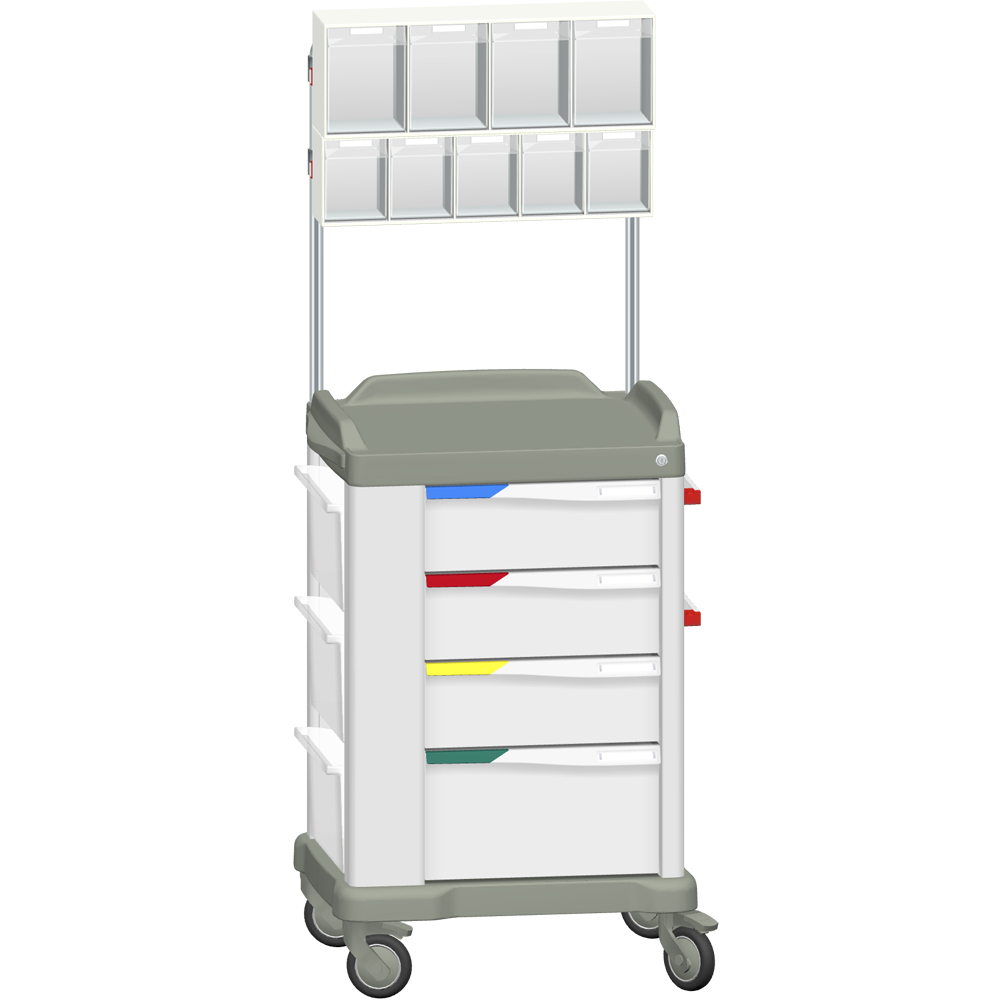

MUV-M Modular UNI Trolley with Storage Gallery

MUV-M4-G, MUV-M5-G, MUV-M6-G

The modular UNI trolley in the medium version offers a highly variable design, including optional colour finishes for the side panels, different drawer configurations and a wide range of optional accessories.
The trolley is reinforced in the corners with surface-treated aluminium profiles.
The upper ABS top is fitted with a moulded handle on three sides, 48 mm high, and a pull-out ABS side shelf measuring 390 × 365 mm.
Above the top, a two-tier storage gallery with transparent plastic tilt-out bins 4 + 5 is mounted on a stainless steel holder with sliding Euro rails.
The left side is equipped with three removable transparent plastic tilt-out containers with a 30° tilt option, measuring 370 × 110 × h 150 mm.
The right side is fitted either with a flat side panel or with two 25 × 10 mm Euro rails for hanging various accessories.
The front side is equipped with removable ABS drawers with internal dimensions of 355 × 410 mm. The drawers are fitted with full-extension runners with a load capacity of 45 kg per drawer and central locking.
Drawer heights are optional depending on the model: 76, 156 or 236 mm. Drawer handles are available in 9 colour options — see colour chart. The colour finish of the right and rear panels is also optional — see colour chart.
The base is fitted with rubber castors Ø 125 mm — 2 braked and 2 unbraked.
Optional trolley accessories: detailed specification according to the model is provided at the end of this section.

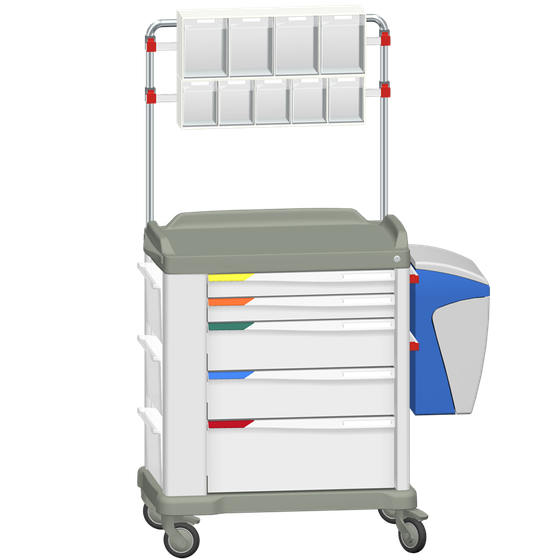

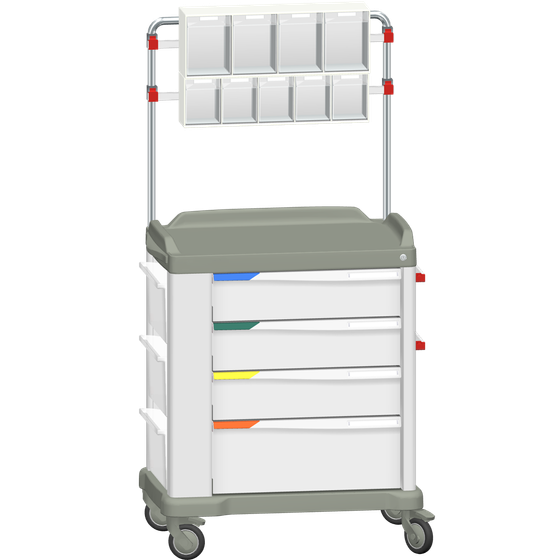

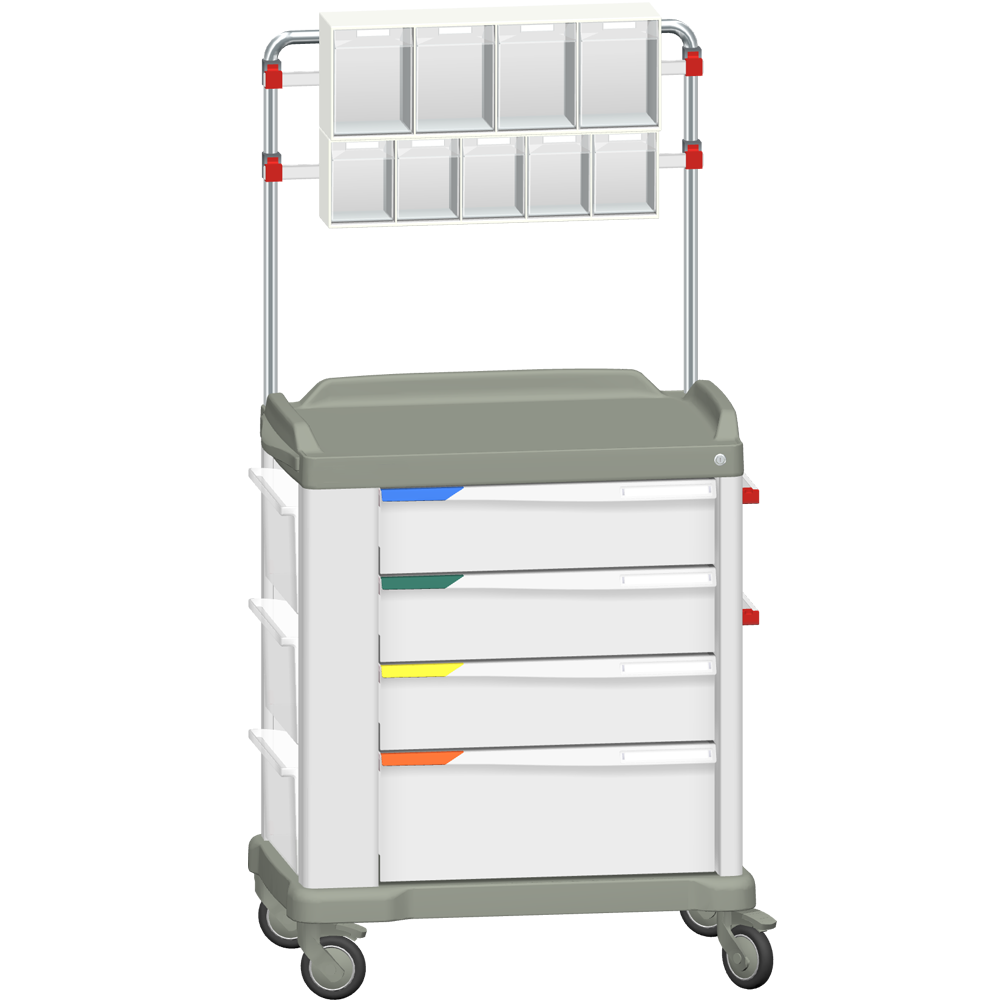

MUV-L Modular UNI Trolley with Storage Gallery

MUV-L4-G, MUV-L5-G, MUV-L6-G

The modular UNI trolley in the largest version, Large, offers a highly variable design, including optional colour finishes for the side panels, different drawer configurations and a wide range of optional accessories.
The trolley is reinforced in the corners with surface-treated aluminium profiles.
The upper ABS top is fitted with a moulded handle on three sides, 48 mm high, and a pull-out ABS side shelf measuring 390 × 365 mm.
Above the top, a two-tier storage gallery with transparent plastic tilt-out bins 4 + 5 is mounted on a stainless steel holder with sliding Euro rails.
The left side is equipped with three removable transparent plastic tilt-out containers with a 30° tilt option, measuring 370 × 110 × h 150 mm.
The right side is fitted either with a flat side panel or with two 25 × 10 mm Euro rails for hanging various accessories.
The front side is equipped with removable ABS drawers with internal dimensions of 545 × 410 mm. The drawers are fitted with full-extension runners with a load capacity of 45 kg per drawer and central locking.
Drawer heights are optional depending on the model: 76, 156 or 236 mm. Drawer handles are available in 9 colour options — see colour chart. The colour finish of the right and rear panels is also optional — see colour chart.
The base is fitted with rubber castors Ø 125 mm — 2 braked and 2 unbraked.
Optional trolley accessories: detailed specification according to the model is provided at the end of this section.

Accessories :

Modular UNI Trolley / S / and / M /

Modular UNI Trolley / S / and / M /

EUR-MUV – 2 adjustable Euro rails
AB-d – Ampoule opener
Upper storage gallery 6 + 5 / Upper storage gallery 5 + 4
NZK-MUV – Hanging wire basket coated with grey plastic, or stainless steel version made to order
KPK-8 – Knee-operated plastic waste bin, blue, grey or white, 8 l.
2KPK-8 – Double knee-operated plastic waste bin, blue, grey or white, 8 l
KPK-20 – Knee-operated plastic waste bin, blue, grey or white, 20 l
DKZ-500 – Cannula holder
DOZ-2 – Holder with hazardous waste container
DRZ – Glove holder
PVZ-2-MUV60M – Adjustable drawer insert, h 60 mm, for S and M trolleys, 2 + 2 division
PVZ-2-MUV140M – Adjustable drawer insert, h 140 mm, for S and M trolleys, 2 + 2 division
PVZ-3-MUV60M – Adjustable drawer insert, h 60 mm, for S and M trolleys, 3 + 2 division
PVZ-3-MUV140M – Adjustable drawer insert, h 140 mm, for S and M trolleys, 3 + 2 division
DMP – Stainless steel medical gas cylinder holder, for 3–7 l cylinders, cylinder diameter 150 mm
Dimensions: w 80 × d 175 × h 350 mm
BDEF – Side defibrillator holder with adjustable platform from 312 × 270 to 400 × 270 mm
DDZ – Disinfectant dispenser with Euro rail holder
IS-2MUV – Adjustable IV stand with two hooks

MUV-VS – Folding side shelf, 530 × 487 mm, load capacity 15 kg

Modular UNI Trolley / L /

EUR-MUV – 2 adjustable Euro rails
AB-d – Ampoule opener
Upper storage gallery 6 + 5 / Upper storage gallery 5 + 4
NZK-MUV – Hanging wire basket coated with grey plastic, or stainless steel version made to order
KPK-8 – Knee-operated plastic waste bin, blue, grey or white, 8 l.
2KPK-8 – Double knee-operated plastic waste bin, blue, grey or white, 8 l
KPK-20 – Knee-operated plastic waste bin, blue, grey or white, 20 l
DKZ-500 – Cannula holder
DOZ-2 – Holder with hazardous waste container
DRZ – Glove holder
PVZ-2-MUV60L – Adjustable drawer insert, h 60 mm, for L trolleys, 2 + 2 division
PVZ-2-MUV140L – Adjustable drawer insert, h 140 mm, for L trolleys, 2 + 2 division
PVZ-3-MUV60L – Adjustable drawer insert, h 60 mm, for L trolleys, 3 + 2 division
PVZ-3-MUV140L – Adjustable drawer insert, h 140 mm, for L trolleys, 3 + 2 division
DMP – Stainless steel medical gas cylinder holder, for 3–7 l cylinders, cylinder diameter 150 mm
Dimensions: w 80 × d 175 × h 350 mm
BDEF – Side defibrillator holder with adjustable platform from 312 × 270 to 400 × 270 mm
DDZ – Disinfectant dispenser with Euro rail holder
IS-2/Fix – Fixed double IV hook
IS-2MUV – Adjustable IV stand with two hooks
