Height-Adjustable Instrument Tables

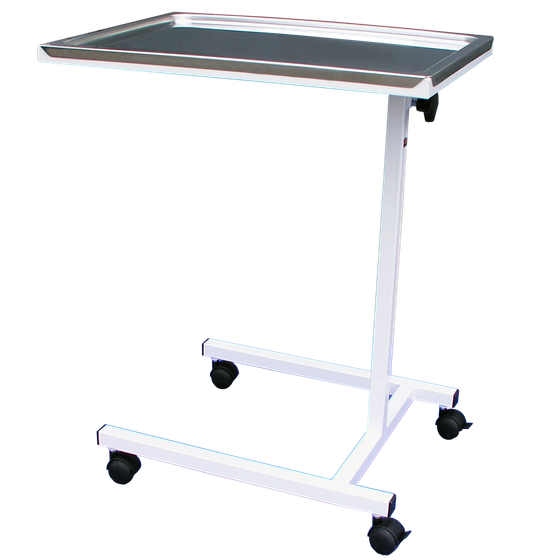

SNVL-640 Painted Height-Adjustable Instrument Table
The height-adjustable instrument table is made of steel profiles finished with powder-coated polyester paint. The upper surface consists of a pressed stainless steel tray with rounded corners.
The table is fitted with two braked and two unbraked swivel plastic castors Ø 50 mm.
It is designed for storing surgical instruments and medical material.
Upon request, the table can be equipped with anti-static castors.
- Dimensions: l 640 × w 480 × h 850–1300 mm
- Weight: 10 kg

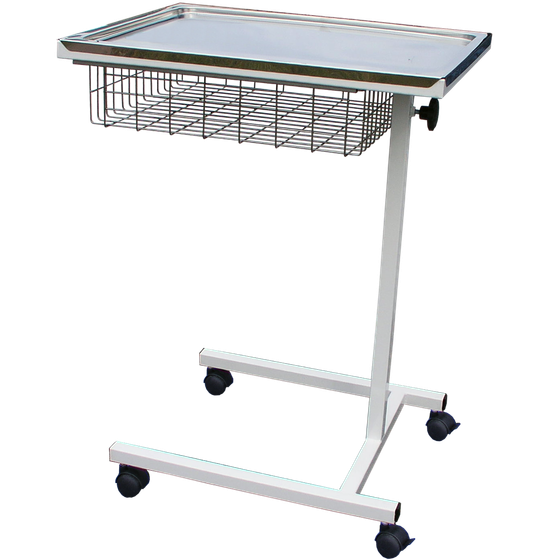

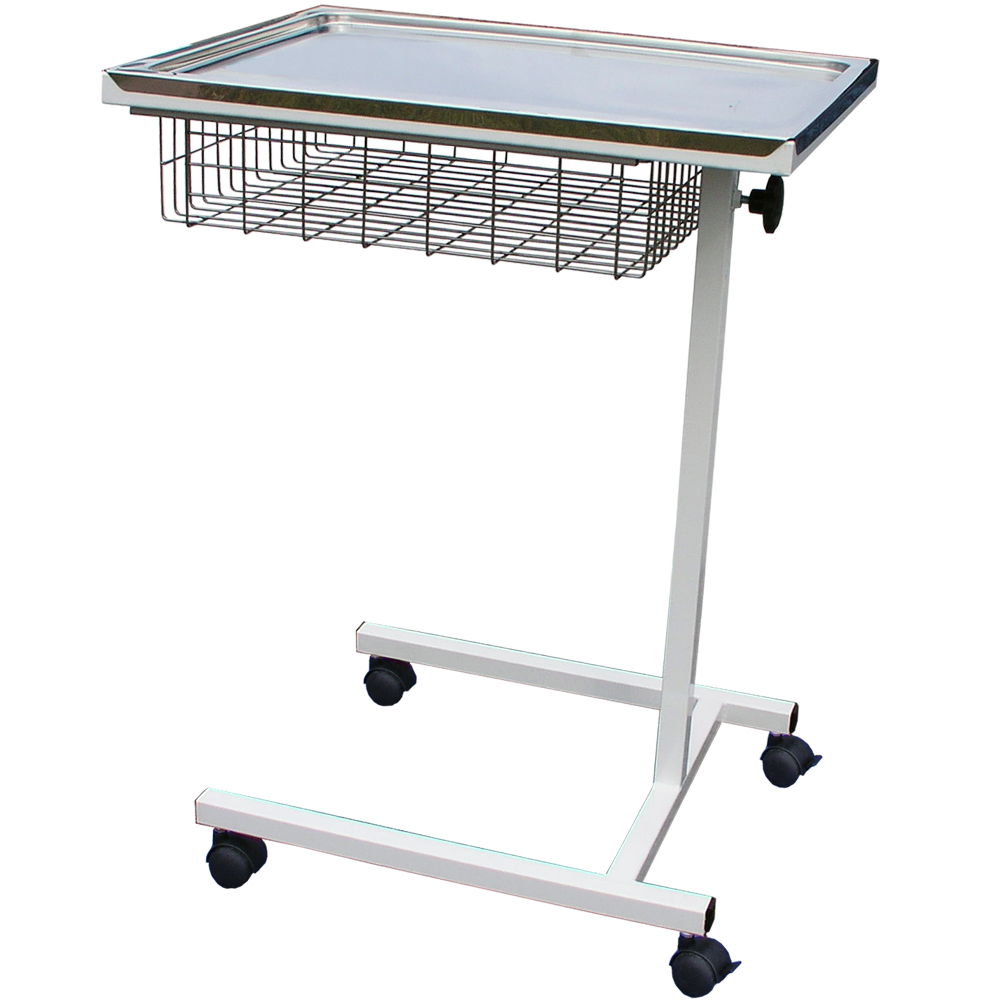

SNVL-640K Painted Height-Adjustable Instrument Table
With Pull-Out Stainless Steel Basket
The height-adjustable instrument table is made of steel profiles finished with powder-coated polyester paint. The upper surface consists of a pressed stainless steel tray with rounded corners.
The table is equipped with a pull-out stainless steel basket, 100 mm deep.
It is fitted with two braked and two unbraked swivel plastic castors Ø 50 mm.
It is designed for storing surgical instruments and medical material.
Upon request, the table can be equipped with anti-static castors.
- Dimensions: l 640 × w 480 × h 850–1300 mm

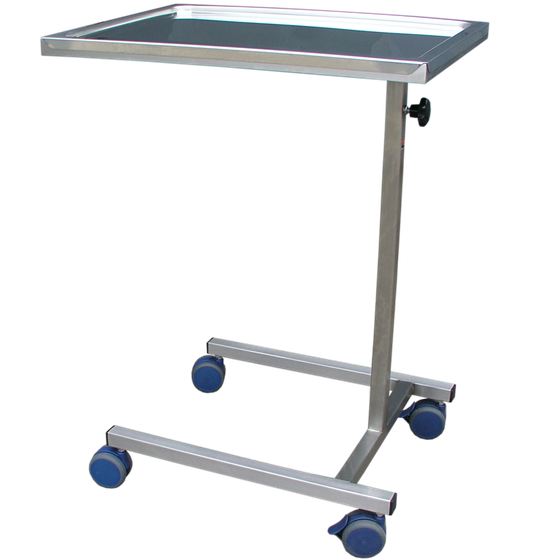

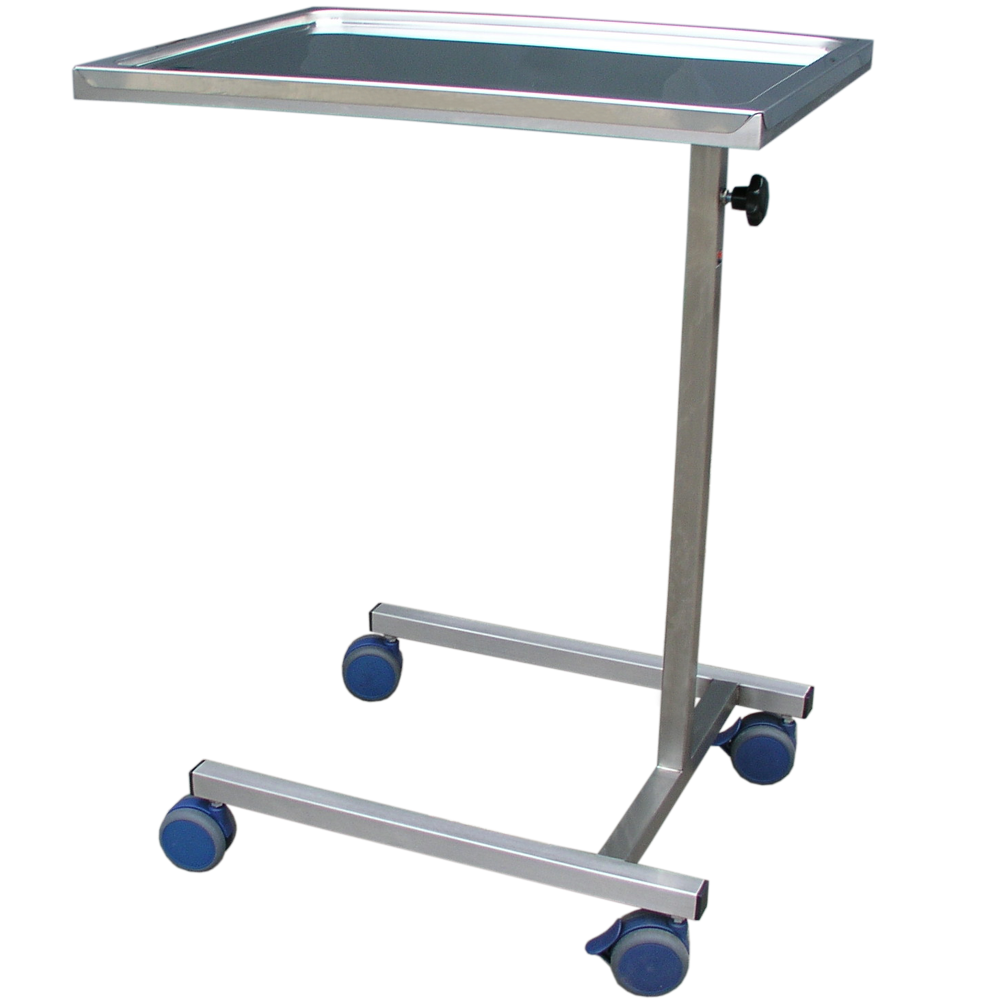

SNVN-640 Stainless Steel Height-Adjustable Instrument Table
Height-adjustable stainless steel instrument table with an upper pressed stainless steel tray with rounded corners.
The table is fitted with two braked and two unbraked swivel plastic castors Ø 75 mm.
It is designed for storing surgical instruments and medical material.
Upon request, the table can be equipped with anti-static castors.
A matt / brushed tray finish is available for laser workplaces.
- Dimensions: l 640 × w 480 × h 850–1300 mm
- Weight: 10 kg

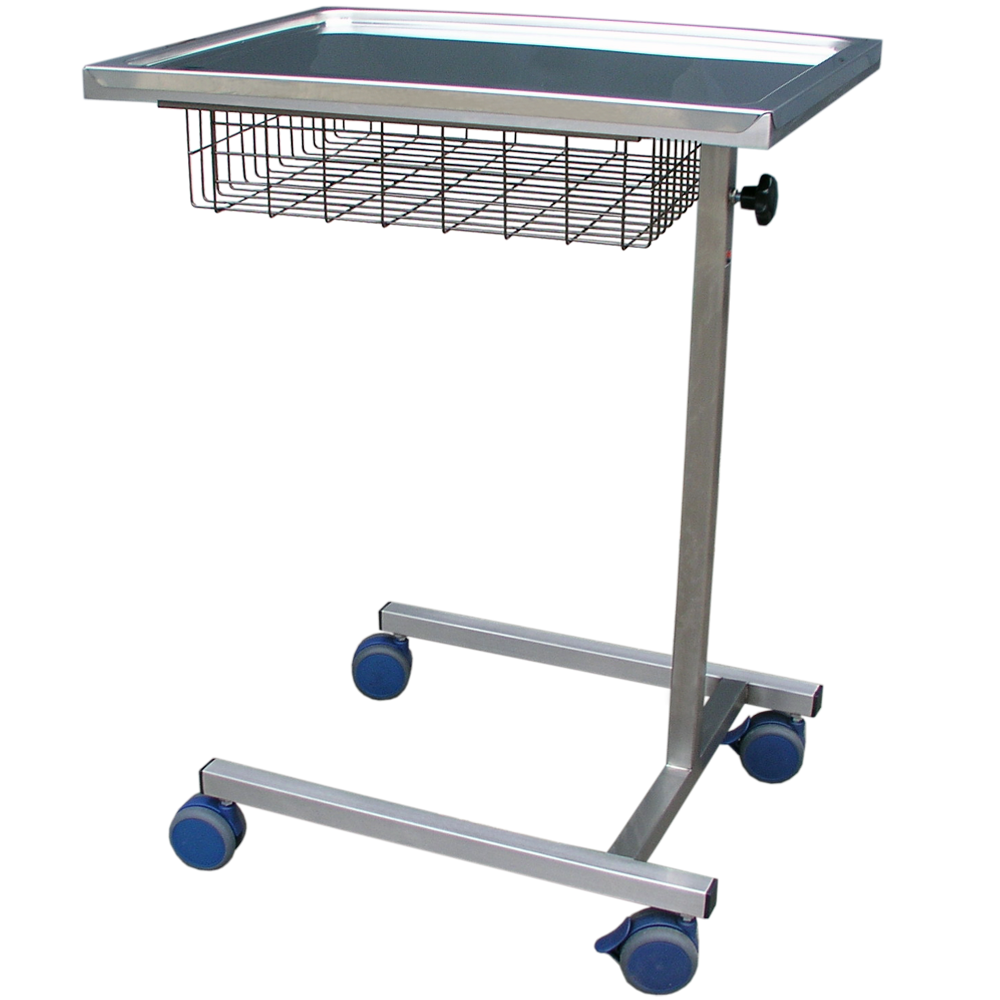

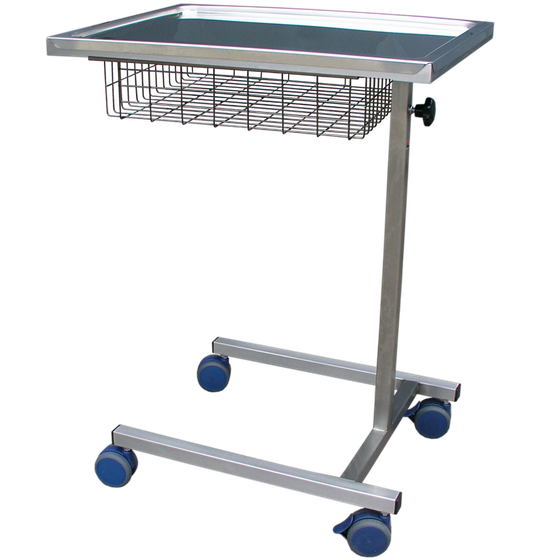

SNVN-640K Stainless Steel Height-Adjustable Instrument Table
Height-adjustable stainless steel instrument table with an upper pressed stainless steel tray with rounded corners and a pull-out stainless steel basket, 100 mm deep.
The table is fitted with two braked and two unbraked swivel plastic castors Ø 75 mm.
It is designed for storing surgical instruments and medical material.
Upon request, the table can be equipped with anti-static castors.
A matt / brushed tray finish is available for laser workplaces.
- Dimensions: l 640 × w 480 × h 850–1300 mm

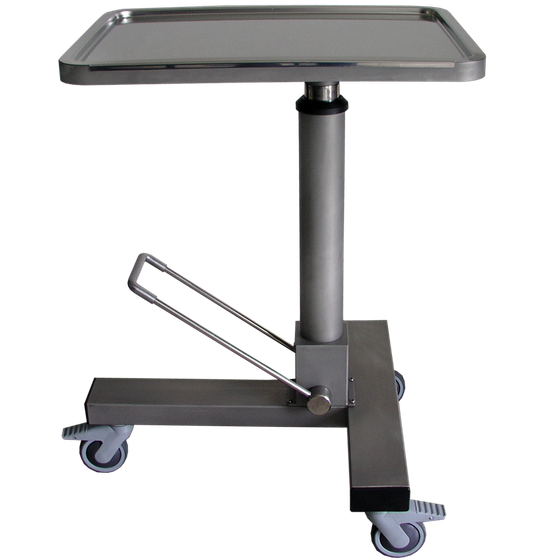

SNHN-640 Stainless Steel Instrument Table with Hydraulic Height Adjustment
The stainless steel instrument table is equipped with a hydraulic system for smooth height adjustment using an anti-static foot pedal.
The upper pressed stainless steel tray can rotate 360° around its axis and can be secured with a locking screw.
The base is fitted with one unbraked and two braked anti-static swivel castors Ø 100 mm.
A matt / brushed tray finish is available for laser workplaces.
- Evenly distributed tray load capacity: 30 kg
- Table weight: 35 kg
- Base dimensions: l 600 × w 600 mm
- Pressed tray dimensions: l 640 × w 480 mm
- Dimensions: l 640 × w 600 × h 950–1350 mm

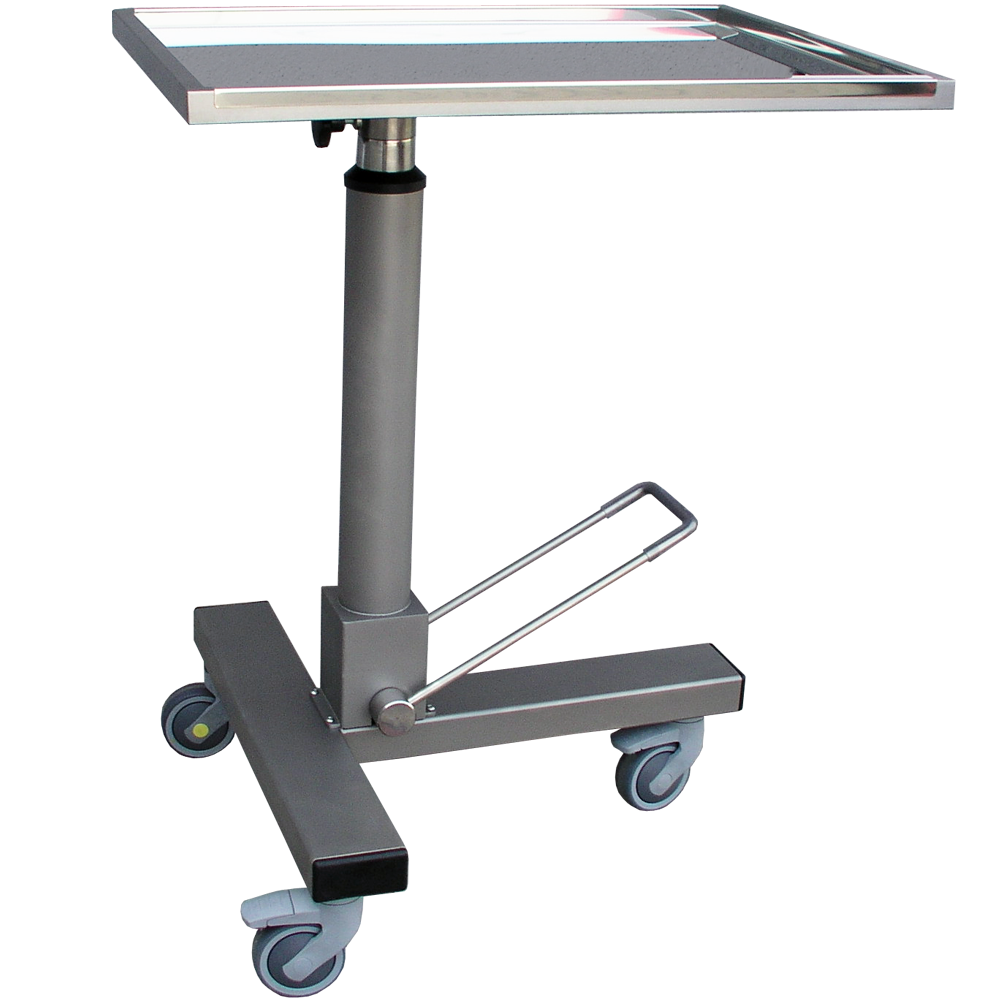

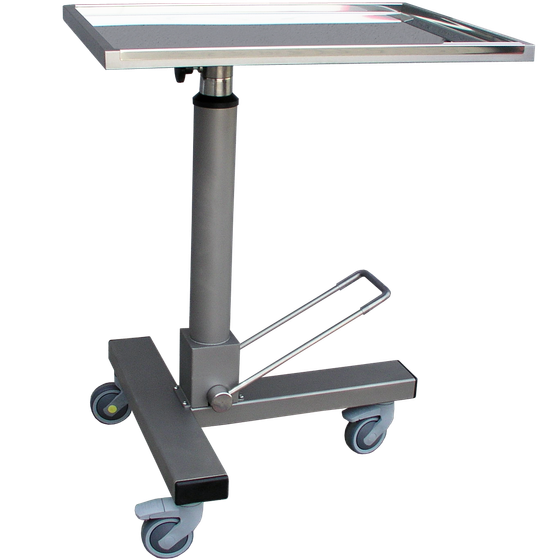

SNHN-750 Stainless Steel Instrument Table with Hydraulic Height Adjustment
The stainless steel instrument table is equipped with a hydraulic system for smooth height adjustment using an anti-static foot pedal.
The upper recessed stainless steel tray can rotate 360° around its axis and can be secured with a locking screw.
The base is fitted with one unbraked and two braked anti-static swivel castors Ø 100 mm.
A matt / brushed tray finish is available for laser workplaces.
- Evenly distributed tray load capacity: 30 kg
- Table weight: 37 kg
- Base dimensions: l 600 × w 600 mm
- Tray dimensions: l 750 × w 500 mm
- Dimensions: l 750 × w 600 × h 950–1350 mm

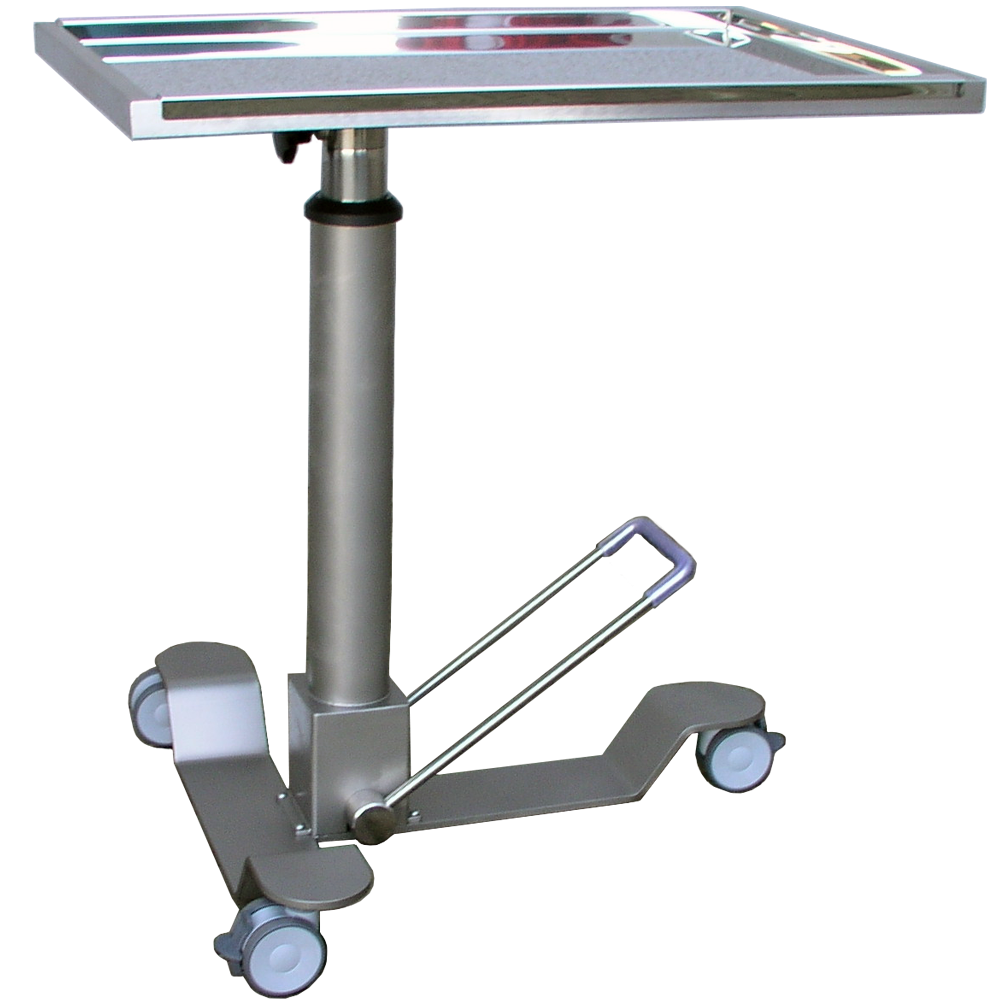

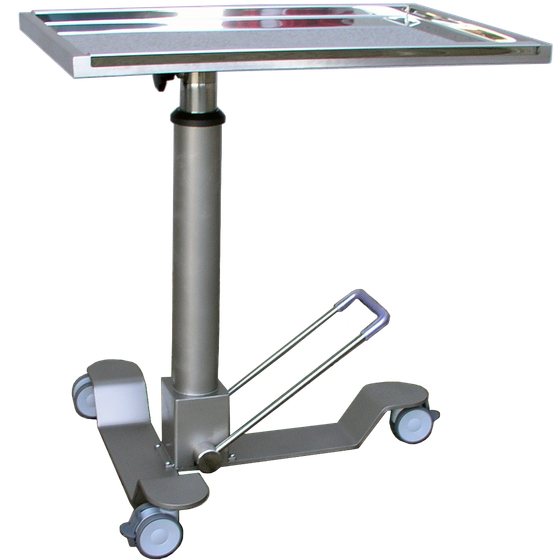

SNHN-750-SH Stainless Steel Instrument Table with Hydraulic Height Adjustment
The stainless steel instrument table is equipped with a hydraulic system for smooth height adjustment using an anti-static foot pedal.
The table features a lower construction height and a modified base.
The upper recessed stainless steel tray can rotate 360° around its axis and can be secured with a locking screw.
The base is fitted with one unbraked and two braked anti-static swivel castors Ø 75 mm.
A matt / brushed tray finish is available for laser workplaces.
- Evenly distributed tray load capacity: 30 kg
- Table weight: 37 kg
- Base dimensions: l 600 × w 600 mm
- Tray dimensions: l 750 × w 500 mm
- Dimensions: l 750 × w 600 × h 800–1200 mm

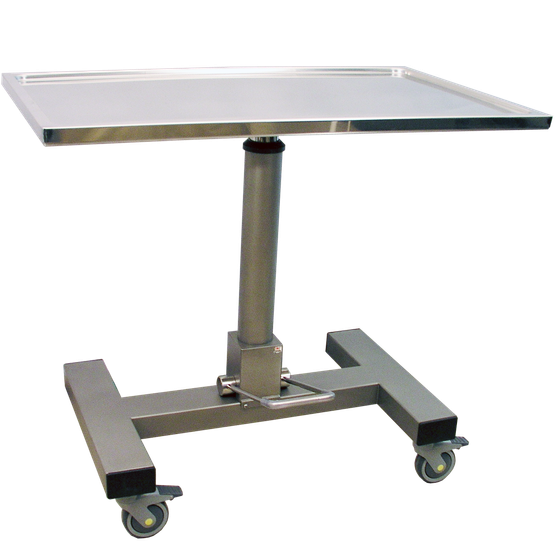

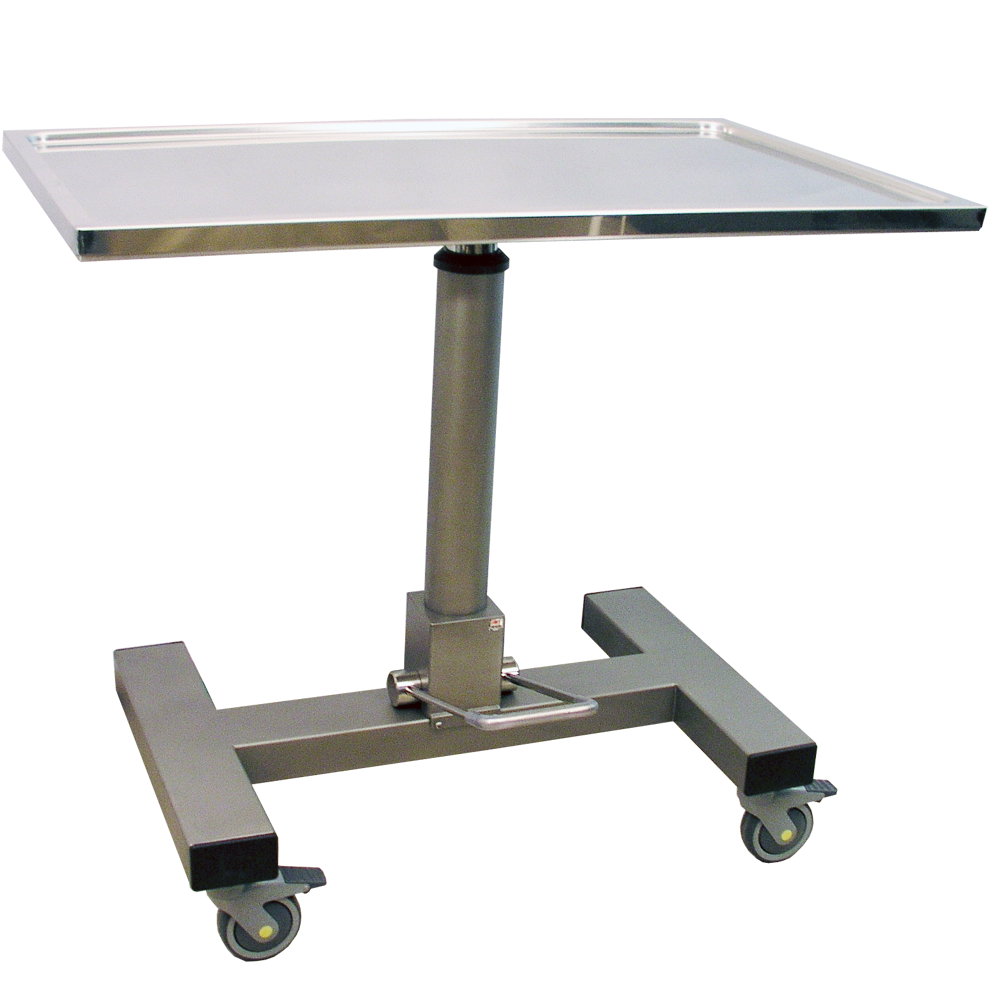

SNHN-1000 Stainless Steel Instrument Table with Hydraulic Height Adjustment
The stainless steel instrument table is designed for storing a larger quantity of instruments.
The table is equipped with a closed hydraulic system for smooth height adjustment.
The upper pressed stainless steel tray can rotate 360° around its axis and can be secured with a locking screw.
The H-shaped base is fitted with two unbraked and two braked anti-static swivel castors Ø 100 mm.
- Evenly distributed tray load capacity: 30 kg
- Table weight: 40 kg
- Base dimensions: l 800 × w 500 mm
- Tray dimensions: l 1000 × w 600 mm
- Dimensions: l 1000 × w 600 × h 950–1350 mm
